Backup Datastore: Restic

Restic is an open source (BSD 2-Clause License) backup tool designed for speed, security, and efficiency. The current implementation of the driver supports SFTP and S3 storage types. Restic offers interesting features to store backups, like deduplication (only transferring image blobs not already present in the repository) or compression (enabled by default).

In both the Enterprise and Community editions of OpenNebula, the correct version of restic is included as a dependency. In this guide we will use the following terminology (introduced by restic):

• Repository: This is the storage location where VM disk backups will be stored. Depending on the selected backend, it can be a directory on an SFTP backup server or a path inside an S3 bucket. Restic creates a specific internal structure to store the backups efficiently. OpenNebula will create a separate restic repository for each VM or backup job.
• Snapshot: It represents a backup and it is referenced by a unique hash (e.g., eda52f34). Each snapshot stores a VM backup and includes the backed up disks and the metadata description of the VM at the time you make the backup.
• Backup Server: A Host that stores VM backups and restic repositories when using the SFTP backend.
• S3 Bucket: An AWS S3 or S3-compatible bucket that stores the restic repositories when using the S3 backend.

Step 1. Backend Configuration

The first thing you need to do is prepare the storage backend that will hold the restic repositories. The required setup depends on the backend selected for the datastore.

The restic repository itself does not need to be created manually. OpenNebula initializes the repository automatically during the first backup, using the datastore configuration.

SFTP Backend

For the SFTP backend, set up a backup server to hold the restic repositories. Typically the server will have a dedicated storage medium to store the backups (e.g., iSCSI volume). Also, the Hosts and Front-end need to reach the server IP.

To set up the backup server perform the following steps:

• Create a user account with username oneadmin. This account will be used to connect to the server.
• Copy the SSH public key of existing oneadmin from the OpenNebula Front-end to this new oneadmin account.
• Check that oneadmin can SSH access the server without being prompted for a password from the Front-end and Hosts.
• Create the following folder in the backup server /var/lib/one/datastores, change the ownership to oneadmin.
• Mount the storage volume in /var/lib/one/datastores.
• Finally make sure rsync and qemu-img commands are installed in the backup server.

The following example showcases this setup using a dedicated 1.5T volume for backups:

id oneadmin
 uid=9869(oneadmin) gid=9869(oneadmin) groups=9869(oneadmin)

lsblk
 sdb                         8:16   0  1.5T  0 disk
 └─sdb1                      8:17   0  1.5T  0 part
   └─vgBackup-lvBackup     253:0    0  1.5T  0 lvm  /var/lib/one/datastores

ls -ld /var/lib/one/datastores/
  drwxrwxr-x 2 oneadmin oneadmin 4096 Sep  3 12:04 /var/lib/one/datastores/

S3 Backend

For the S3 backend, prepare an AWS S3 bucket or an S3-compatible bucket before creating the OpenNebula Backup Datastore. The bucket must be reachable from the Front-end and Hosts.

The S3 credentials configured in the datastore must allow OpenNebula to list the bucket and to create, read, and delete objects in it.

For AWS S3, use an access key and secret access key with permissions for the target bucket. For S3-compatible backends, use the equivalent credentials and enable path-style access if required by the service.

If the S3 endpoint uses a private CA certificate, make the CA certificate file available on the KVM Hosts where restic commands run. For lab or debugging environments, TLS verification can also be disabled in the datastore configuration.

Step 2. [Front-end] Create a Restic Datastore

Create an OpenNebula Backup Datastore with the attributes required by the selected backend. The RESTIC_PASSWORD attribute is used by restic to encrypt and access the repository.

SFTP Backend

For SFTP, create a datastore template with the backup server address. RESTIC_BACKEND can be omitted because SFTP is the default backend.

cat ds_restic.txt
 NAME   = "RBackups"
 TYPE   = "BACKUP_DS"

 DS_MAD = "restic"
 TM_MAD = "-"

 RESTIC_BACKEND     = "SFTP"
 RESTIC_PASSWORD    = "opennebula"
 RESTIC_SFTP_SERVER = "192.168.1.8"

Note: The RESTIC_SFTP_SERVER is the IP address of the backup server. It needs to be reachable from the Front-end and Hosts.

onedatastore create ds_restic.txt
 ID: 100

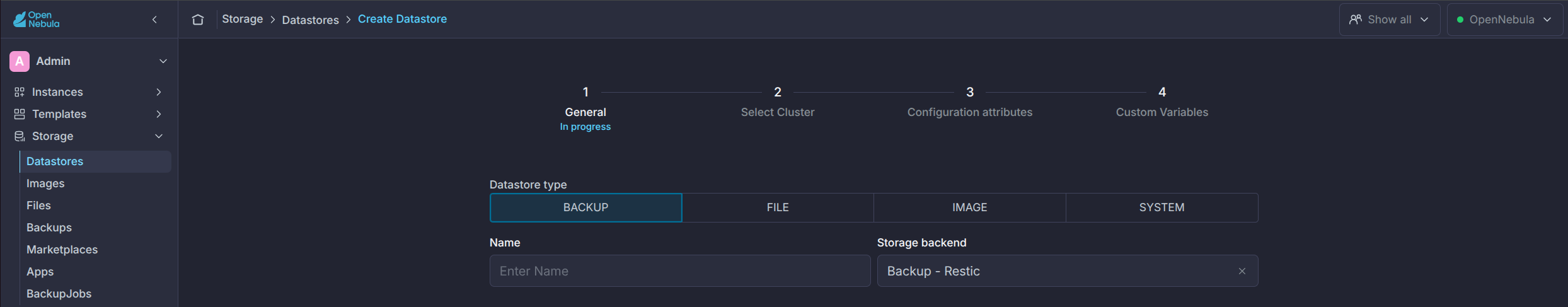

You can also create the DS through Sunstone like any other datastore, go to Storage -> Datastores and select Backup, in the Storage backend menu select Backup - Restic:

After some time, the datastore should be monitored:

onedatastore list
 ID  NAME                                         SIZE AVA CLUSTERS IMAGES TYPE DS      TM      STAT
 100 RBackups                                     1.5T 91% 0             0 bck  restic  -       on
   2 files                                       19.8G 84% 0             0 fil  fs      local   on
   1 default                                     19.8G 84% 0             1 img  fs      local   on
   0 system                                          - -   0             0 sys  -       local   on

AWS S3 Backend

For AWS S3, use RESTIC_BACKEND="S3". The endpoint can be omitted, in which case it defaults to s3.amazonaws.com, and path-style access is normally not required.

cat ds_restic_aws_s3.txt
 NAME   = "RBackups-AWS-S3"
 TYPE   = "BACKUP_DS"

 DS_MAD = "restic"
 TM_MAD = "-"

 RESTIC_BACKEND              = "S3"
 RESTIC_PASSWORD             = "opennebula"
 RESTIC_S3_BUCKET            = "opennebula-backups"
 RESTIC_S3_REGION            = "us-west-1"
 RESTIC_S3_ACCESS_KEY_ID     = "S3ACCESSKEYID"
 RESTIC_S3_SECRET_ACCESS_KEY = "S3SECRETACCESSKEY"
 TOTAL_MB                    = "512000"

onedatastore create ds_restic_aws_s3.txt
 ID: 101

S3-Compatible Backend

For non-AWS S3-compatible backends, create a datastore template with RESTIC_BACKEND="S3" and set the S3 endpoint explicitly. The endpoint can include the scheme; for plain HTTP endpoints, specify it explicitly, for example http://s3-storage:8080. Many S3-compatible backends require path-style access. In that case set RESTIC_S3_FORCE_PATH_STYLE="YES".

cat ds_restic_s3.txt
 NAME   = "RBackups-S3"
 TYPE   = "BACKUP_DS"

 DS_MAD = "restic"
 TM_MAD = "-"

 RESTIC_BACKEND              = "S3"
 RESTIC_PASSWORD             = "opennebula"
 RESTIC_S3_ENDPOINT          = "http://s3-storage:8080"
 RESTIC_S3_BUCKET            = "opennebula-backups"
 RESTIC_S3_ACCESS_KEY_ID     = "S3ACCESSKEYID"
 RESTIC_S3_SECRET_ACCESS_KEY = "S3SECRETACCESSKEY"
 RESTIC_S3_FORCE_PATH_STYLE  = "YES"
 TOTAL_MB                    = "512000"

onedatastore create ds_restic_s3.txt
 ID: 102

For S3 datastores, OpenNebula does not discover the bucket quota automatically. The total capacity is taken from the TOTAL_MB datastore attribute. The examples above set TOTAL_MB="512000" to configure a custom 500G capacity. If TOTAL_MB is omitted, the driver uses 1048576 MB (1024G) as the default capacity. Used capacity is computed from backup images registered in OpenNebula.

OpenNebula creates a separate restic repository inside the SFTP path or S3 bucket for each VM or backup job.

Repository Maintenance and Troubleshooting

Repository Pruning

Data not referenced by any snapshot needs to be deleted by running the prune command in the repository. This operation is executed by OpenNebula whenever an image backup is deleted, either because of an explicit removal or to conform the retention policy set.

Repository is locked

During the operation of the VM backups you may rarely find that the repository is left in a locked state. You should see an error similar to:

unable to create lock in backend: repository is already locked exclusively by PID 111971 on ubuntu2204-kvm-qcow2-6-5-yci34-0 by oneadmin (UID 9869, GID 9869)
lock was created at 2022-11-28 17:33:51 (55.876852076s ago)
storage ID 1448874c

To recover from this error, check there are no ongoing operations and execute restic unlock --remove-all for the repository.

Limiting I/O and CPU usage

Backup operations may incur in high I/O or CPU demands. This will add noise to the VMs running in the hypervisor. You can control resource usage of the backup operations by:

• Lowering the priority of the associated processes. Backup commands are run under a given ionice priority (best-effort, class 2 scheduler); and a given nice.
• Confining the associated processes in a cgroup. OpenNebula will create a systemd slice for each Backup Datastore so the backup commands run with a limited number or read/write IOPS and CPU Quota.

Note that for the latter, you need to delegate the cpu and io cgroup controllers to the oneadmin user. This way OpenNebula can set CPUQuota, IOReadIOPSMax and IOWriteIOPSMax.

To delegate the controllers you need to add the following file for oneadmin account (id 9869) in all the Hosts (note that you’d probably need to create the user service folder):

cat /etc/systemd/system/user@9869.service.d/delegate.conf
 [Service]
 Delegate=cpu cpuset io

After that, reboot the hypervisor and double check that the setting is correct (you need to login as oneadmin):

cat /sys/fs/cgroup/user.slice/user-9869.slice/cgroup.controllers
 cpuset cpu io memory pids

Temporary Backup Path

Disk images backups are generated within a local folder in the Host where the VM is running. These images are later uploaded to the selected Backup Datastore. By default, this temporary path is set to the VM folder, in /var/lib/one/datastores/<DATASTORE_ID>/<VM_ID>/backup.

However, it’s possible to modify this path to utilize alternative locations, such as different local volumes, or to opt out of using the shared VM folder entirely.

To change the base folder to store disk backups for all Hosts, edit /var/lib/one/remotes/etc/datastore.conf and set the BACKUP_BASE_PATH variable. Please note this file uses shell syntax.

Bridge List

The BRIDGE_LIST parameter in a Backup Datastore defines which Hosts are responsible for transferring VM backups from the hypervisor to the Backup Datastore.

All Hosts listed in BRIDGE_LIST must meet the following requirements:

• Must have network access to the Backup Datastore.
• Must be able to establish passwordless SSH connections to the OpenNebula Front-end.
• For the SFTP backend, must be able to establish passwordless SSH connections to the Backup Server.

During the backup process:

• OpenNebula automatically selects one of the hosts from the BRIDGE_LIST.
• This host is used to:
  • Retrieve the snapshot created by the hypervisor.
  • Export it to the Backup Datastore.
• The name of the selected Host is recorded in the VM’s backup configuration, under the LAST_BRIDGE field.
