Hardware Specification and Architecture
This section contains the specification of the used Ampere hardware and software resources for the reference OpenNebula deployment.
Architecture

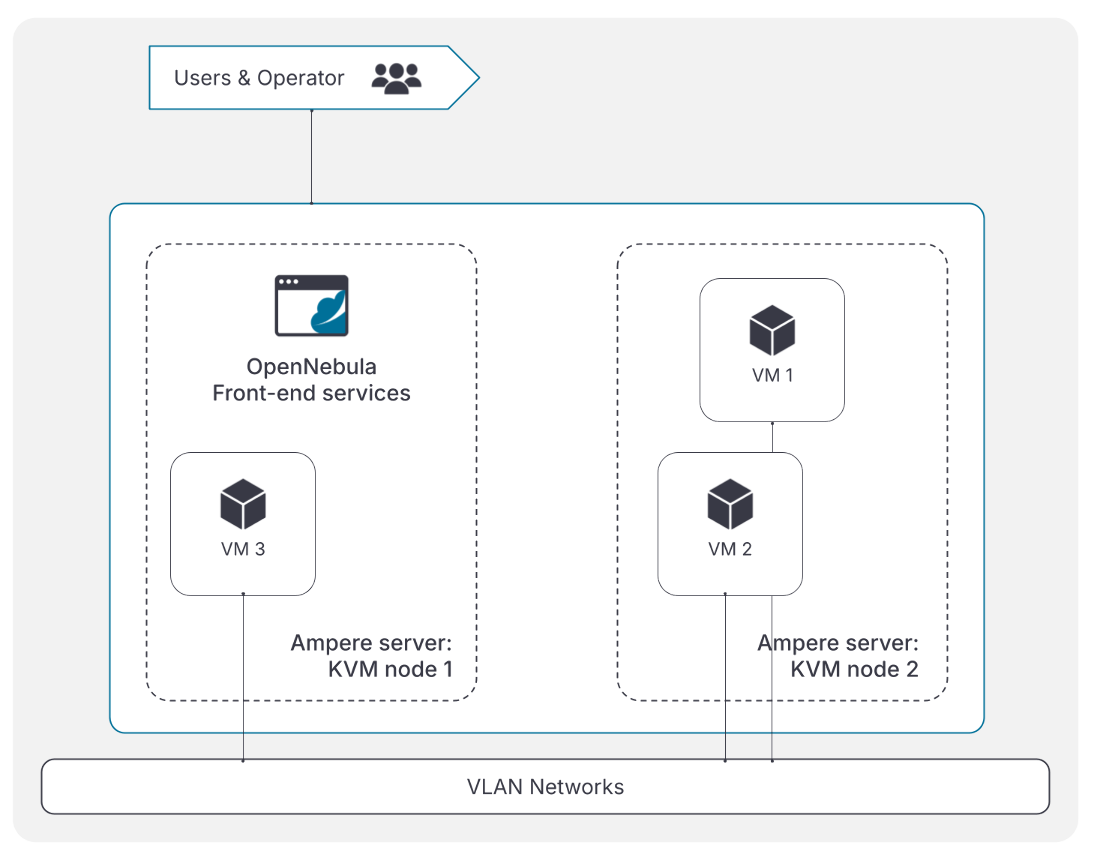

The target high-level cloud architecture overview is shown below. Two Ampere servers are used: the first for hosting the OpenNebula Front-end services and VMs, the second for hosting VMs only. A simple VXLAN networking is configured for the communication between the VMs, so all deployed VMs are attached to the same logical LAN.
Hardware Specification
The tables below detail the characteristics for the Front-end, virtualization host, storage, networking and provisioning model.
Front-end Requirements
Two identical servers were used. One of them acts as Front-end and both of them acts as hosts.
| FRONT-END | |
|---|---|
| Number of Zones | 1 |
| Cloud Manager | OpenNebula 7.0 |
| Server Specs | Ampere(R) Altra(R), details in the table below |
| Operating System | Ubuntu 24.04.2 LTS |
| High Availability | No (1 Front-end) |
| Authorization | Builtin |
Host Requirements
| VIRTUALIZATION HOSTS | |
|---|---|
| Number of Nodes | 2 |
| Server Specs | Ampere(R) Altra(R), details in the table below |
| Operating System | Ubuntu 24.04.2 LTS |
| Hypervisor | KVM |
| Special Devices | None |
Storage Specification
| STORAGE | |
|---|---|
| Type | Local disk |
| Capacity | 1 Datastore |
Network Requirements
| NETWORK | |
|---|---|
| Networking | VXLAN |
| Number of Networks | 1 networks: VXLAN |
Provisioning Model
| PROVISIONING MODEL | |
|---|---|
| Manual on-prem | The two servers have been manually provisioned and configured on-prem. |
Server Specifications
| Parameter | Ampere Server |
|---|---|
| Architecture | aarch64 (ARM 64-bit) |
| CPU Model | Ampere(R) Altra(R) Processor Q80-30 CPU @ 3.0GHz (Neoverse-N1) |
| CPU Vendor | Ampere(R) |
| CPU Cores | 160 (2 sockets × 80 cores, 1 thread per core) |
| CPU Frequency | 1000 MHz (min), 3000 MHz (max) |
| NUMA Nodes | 2 (Node0: CPUs 0-79, Node1: CPUs 80-159) |
| L1d Cache | 10 MiB (160 × 64 KiB) |
| L1i Cache | 10 MiB (160 × 64 KiB) |
| L2 Cache | 160 MiB (160 × 1 MiB) |
| Vulnerabilities | All major mitigated or not affected |
| BIOS Vendor | Ampere(R) |
| BIOS Version | 0ACOD014 (SCP: 2.10.20230126) |
| BIOS Release Date | 12/12/2023 |
| BIOS Revision | 5.15 |
| Firmware Revision | 2.10 |
| ROM Size | 7936 kB |
| Boot Mode | UEFI, ACPI supported |
| Disks | 1 × NVMe (Samsung SM981/PM981/PM983, 894.3G) |
| Partitions | /boot/efi (1G), /boot (2G), LVM root (891.2G) |
| Network | 2 × Intel I350 Gigabit Ethernet |
| USB Controllers | Hitachi, Renesas uPD720201 USB 3.0, Linux Foundation root hubs |
| VGA Controller | ASPEED Technology, Inc. ASPEED Graphics Family (server management, not for computation) |
| PCI Devices | Multiple Ampere PCIe root complexes, bridges, and controllers |
| RAM | 32 GiB |
| Other | No high-performance GPU detected |
