KVM Node Installation

This page shows you how to configure OpenNebula KVM Node from the binary packages.

Note

Before reading this chapter, you should have at least installed your Front-end node.

Overview

KVM (Kernel-based Virtual Machine) is the main virtualization solution for Linux on x86 hardware that contains virtualization extensions (Intel VT or AMD-V) and on ARM64 (currently in beta mode). It consists of the loadable KVM kernel modules (one that provides the core virtualization infrastructure and several processor-specific modules), but the complete KVM virtualization stack usually also contains the user-space machine hardware emulator QEMU accelerated by the KVM and Virtual Machines management tool libvirt.

By using KVM, you can run multiple Virtual Machines with unmodified Linux or Windows images. Each Virtual Machine has private virtualized hardware – network card, disk, graphics adapter, etc.

To understand the specific requirements, functionalities, and limitations of the KVM driver, see KVM Driver.

You can then check the Storage and Networking system configuration sections to deploy Virtual Machines on your KVM nodes and access them remotely over the network.

Step 1. Add OpenNebula Repositories

Refer to OpenNebula Repositories guide to add the Enterprise and Community Edition software repositories.

Step 2. Installing the Software

Installing on AlmaLinux/RHEL

Repository EPEL

OpenNebula depends on packages which aren’t in the base distribution repositories. Execute one of the commands below (distinguished by the Host platform) to configure access to additional EPEL (Extra Packages for Enterprise Linux) repository:

AlmaLinux

# yum -y install epel-release

RHEL 8

# rpm -ivh https://dl.fedoraproject.org/pub/epel/epel-release-latest-8.noarch.rpm

RHEL 9

# rpm -ivh https://dl.fedoraproject.org/pub/epel/epel-release-latest-9.noarch.rpm

Install OpenNebula KVM Node Package

Execute the following commands to install the OpenNebula KVM Node package and restart libvirt to use the OpenNebula-provided configuration file:

# yum -y install opennebula-node-kvm
# systemctl restart libvirtd

For further configuration, check the specific guide.

Installing on Debian/Ubuntu

Execute the following commands to install the OpenNebula KVM Node package and restart libvirt to use the OpenNebula-provided configuration file:

# apt-get update
# apt-get -y install opennebula-node-kvm
# systemctl restart libvirtd

For further configuration check the specific guide.

Step 3. Host OS Security Configuration (Optional)

Warning

If you are performing an upgrade skip this and the next steps and go back to the upgrade document.

Disable SELinux on AlmaLinux/RHEL

Depending on the type of OpenNebula deployment, the SELinux can block some operations initiated by the OpenNebula Front-end, which results in a failure of the particular operation. It’s not recommended to disable the SELinux on production environments, as it degrades the security of your server, but to investigate and work around each individual problem based on the SELinux User’s and Administrator’s Guide. The administrator might disable the SELinux to temporarily work around the problem or on non-production deployments by changing the following line in /etc/selinux/config:

SELINUX=disabled

After the change you have to reboot the machine.

Note

Depending on your OpenNebula deployment type, the following may be required on your SELinux-enabled nodes:

package util-linux newer than 2.23.2-51 installed
SELinux boolean virt_use_nfs enabled (with datastores on NFS):

# setsebool -P virt_use_nfs on

Disable AppArmor on Ubuntu/Debian

Depending on the type of OpenNebula deployment, the AppArmor can block some operations initiated by the OpenNebula Front-end, which results in a failure of the particular operation. It’s not recommended to disable the apparmor on production environments, as it degrades the security of your server, but to investigate and work around each individual problem. A good starting point is AppArmor HowToUse Guide. The administrator might disable the AppArmor to temporarily work around the problem or on non-production deployments the steps for disabling it can be found here.

Note

Depending on your OpenNebula deployment type, the following lines might be required at /etc/apparmor.d/abstractions/libvirt-qemu profile:

# /var/lib/one/datastores/** rwk,

Step 4. Configure Passwordless SSH

The OpenNebula Front-end connects to the hypervisor nodes using SSH. The following connection types are being established:

from Front-end to Front-end,
from Front-end to hypervisor node,
from Front-end to hypervisor node with another connection within to another node (for migration operations),
from Front-end to hypervisor node with another connection within back to Front-end (for data copy back).

Important

It must be ensured that Front-end and all nodes can connect to each other over SSH without manual intervention.

When OpenNebula server package is installed on the Front-end, a SSH key pair is automatically generated for the oneadmin user into /var/lib/one/.ssh/id_rsa and /var/lib/one/.ssh/id_rsa.pub, the public key is also added into /var/lib/one/.ssh/authorized_keys. It happens only if these files don’t exist yet, existing files (e.g., leftovers from previous installations) are not touched! For new installations, the default SSH configuration is placed for the oneadmin from /usr/share/one/ssh into /var/lib/one/.ssh/config.

To enable passwordless connections you must distribute the public key of the oneadmin user from the Front-end to /var/lib/one/.ssh/authorized_keys on all hypervisor nodes. There are many methods to achieve the distribution of the SSH keys. Ultimately the administrator should choose a method; the recommendation is to use a configuration management system (e.g., Ansible or Puppet). In this guide, we are going to manually use SSH tools.

Since OpenNebula 5.12. The Front-end runs a dedicated SSH authentication agent service which imports the oneadmin’s private key on start. Access to this agent is delegated (forwarded) from the OpenNebula Front-end to the hypervisor nodes for the operations which need to connect between nodes or back to the Front-end. While the authentication agent is used, you don’t need to distribute private SSH key from Front-end to hypervisor nodes!

To learn more about the SSH, read the Advanced SSH Usage guide.

A. Populate Host SSH Keys

You should prepare and further manage the list of host SSH public keys of your nodes (a.k.a. known_hosts) so that all communicating parties know the identity of the other sides. The file is located in /var/lib/one/.ssh/known_hosts and we can use the command ssh-keyscan to manually create it. It should be executed on your Front-end under the oneadmin user and copied on all your nodes.

Important

You’ll need to update and redistribute file with Host keys every time any host is reinstalled or its keys are regenerated.

Important

If default SSH configuration shipped with OpenNebula is used, the SSH client automatically accepts Host keys on the first connection. That makes this step optional, as the known_hosts will be incrementally automatically generated on your infrastructure when the various connections happen. While this simplifies the initial deployment, it lowers the security of your infrastructure. We highly recommend populating known_hosts on your infrastructure in controlled manner!

Make sure you are logged in on your Front-end and run the commands as oneadmin, e.g., by typing:

# su - oneadmin

Create the known_hosts file by running following command with all the node names including the Front-end as parameters:

$ ssh-keyscan <frontend> <node1> <node2> <node3> ... >> /var/lib/one/.ssh/known_hosts

B. Distribute Authentication Configuration

To enable passwordless login on your infrastructure, you must copy authentication configuration for oneadmin user from Front-end to all your nodes. We’ll distribute only known_hosts created in the previous section and oneadmin’s SSH public key from Front-end to your nodes. We don’t need to distribute oneadmin’s SSH private key from Front-end, as it’ll be securely delegated from Front-end to hypervisor nodes with the default SSH authentication agent service running on the Front-end.

Make sure you are logged in on your Front-end and run the commands as oneadmin, e.g., by typing:

# su - oneadmin

Enable passwordless logins by executing the following command for each of your nodes. For example:

$ ssh-copy-id -i /var/lib/one/.ssh/id_rsa.pub <node1>
$ ssh-copy-id -i /var/lib/one/.ssh/id_rsa.pub <node2>
$ ssh-copy-id -i /var/lib/one/.ssh/id_rsa.pub <node3>

If the list of host SSH public keys was created in the previous section, distribute the known_hosts file to each of your nodes. For example:

$ scp -p /var/lib/one/.ssh/known_hosts <node1>:/var/lib/one/.ssh/
$ scp -p /var/lib/one/.ssh/known_hosts <node2>:/var/lib/one/.ssh/
$ scp -p /var/lib/one/.ssh/known_hosts <node3>:/var/lib/one/.ssh/

Without SSH Authentication Agent (Optional)

Warning

Not Recommended. If you don’t use integrated SSH authentication agent service (which is initially enabled) on the Front-end, you’ll have to distribute also oneadmin’s private SSH key on your hypervisor nodes to allow connections among nodes and from nodes to Front-end. For security reasons, it’s recommended to use SSH authentication agent service and avoid this step.

If you need to distribute oneadmin’s private SSH key on your nodes, proceed with steps above and continue with following extra commands for all your nodes. For example:

$ scp -p /var/lib/one/.ssh/id_rsa <node1>:/var/lib/one/.ssh/
$ scp -p /var/lib/one/.ssh/id_rsa <node2>:/var/lib/one/.ssh/
$ scp -p /var/lib/one/.ssh/id_rsa <node3>:/var/lib/one/.ssh/

C. Validate Connections

You should verify that none of these connections (under user oneadmin) fail and none require a password:

from the Front-end to Front-end itself
from the Front-end to all nodes
from all nodes to all nodes
from all nodes back to Front-end

For example, execute on the Front-end:

# from Front-end to Front-end itself
$ ssh <frontend>
$ exit

# from Front-end to node, back to Front-end and to other nodes
$ ssh <node1>
$ ssh <frontend>
$ exit
$ ssh <node2>
$ exit
$ ssh <node3>
$ exit
$ exit

# from Front-end to node, back to Front-end and to other nodes
$ ssh <node2>
$ ssh <frontend>
$ exit
$ ssh <node1>
$ exit
$ ssh <node3>
$ exit
$ exit

# from Front-end to nodes and back to Front-end and other nodes
$ ssh <node3>
$ ssh <frontend>
$ exit
$ ssh <node1>
$ exit
$ ssh <node2>
$ exit
$ exit

Step 5. Networking Configuration

Network connection is needed by the OpenNebula Front-end Daemons to access, manage, and monitor the Hosts, and to transfer the Image files. It is highly recommended to use a dedicated network for this purpose.

There are various models for virtual networks, check the Open Cloud Networking Chapter to find the ones supported by OpenNebula.

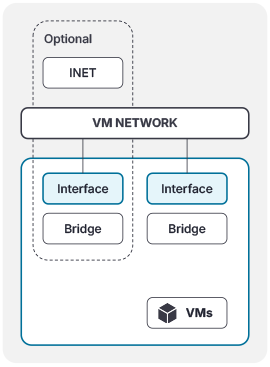

You may want to use the simplest network model that corresponds to the bridged driver. For this driver, you will need to set up a Linux bridge and include a physical device in the bridge. Later on, when defining the network in OpenNebula, you will specify the name of this bridge and OpenNebula will know that it should connect the VM to this bridge, thus giving it connectivity with the physical network device connected to the bridge. For example, a typical Host with two physical networks, one for public IP addresses (attached to an eth0 NIC for example) and the other for private virtual LANs (NIC eth1 for example) should have two bridges:

# ip link show type bridge
4: br0: ...
5: br1: ...

# ip link show master br0
2: eth0: ...

# ip link show master br1
3: eth1: ...

Note

Remember that this is only required in the Hosts, not in the Front-end. Also remember that the exact name of the resources is not important (br0, br1, etc…), however it’s important that the bridges and NICs have the same name in all the Hosts.

Step 6. Storage Configuration (Optional)

In default OpenNebula configuration, the local storage is used for storing Images and running Virtual Machines. This is enough for basic use and you don’t need to take any extra steps now unless you want to deploy an advanced storage solution.

Follow the Open Cloud Storage Setup guide to learn how to use Ceph, NFS, LVM, etc.

Step 7. Adding Host to OpenNebula

In this step, we’ll register the hypervisor node we have configured above into the OpenNebula Front-end, so that OpenNebula can launch Virtual Machines on it. This step is documented for Sunstone GUI and CLI but both accomplish the same. Select one of the two options only.

Learn more in Hosts and Clusters Management.

Note

If the Host turns to err state instead of on, check OpenNebula log /var/log/one/oned.log. The problem might be with connecting over SSH.

Add Host with Sunstone

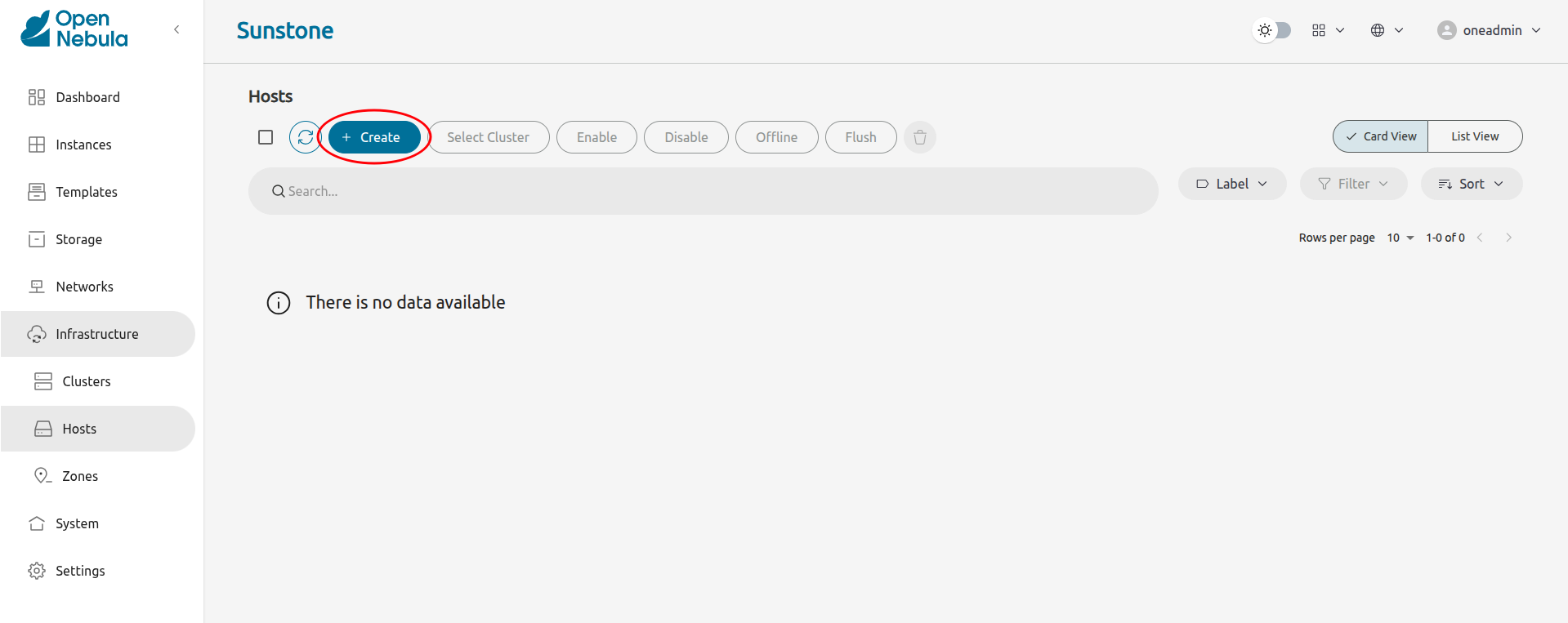

Open Sunstone as documented here. On the left side menu go to Infrastructure → Hosts. Click on the + button.

sunstone_select_create_host

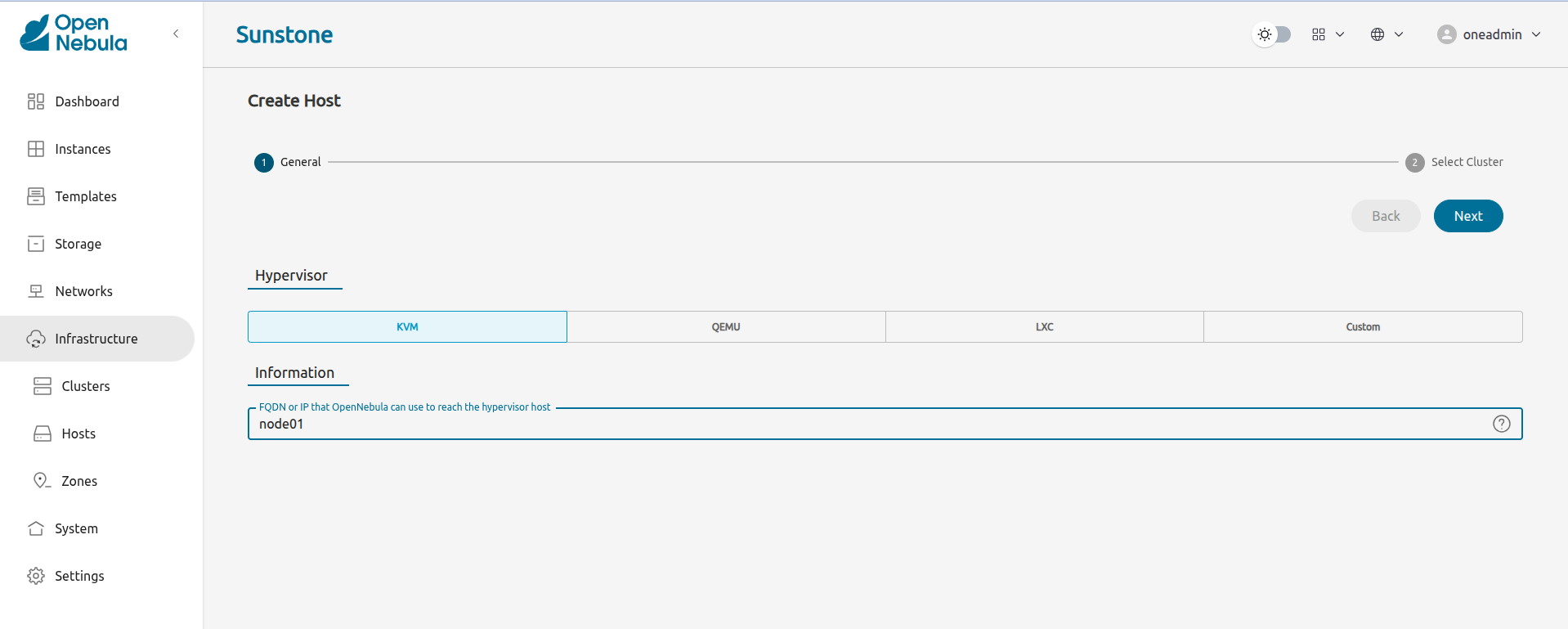

Then fill in the hostname, FQDN, or IP of the node in the Hostname field.

sunstone_create_host_dialog

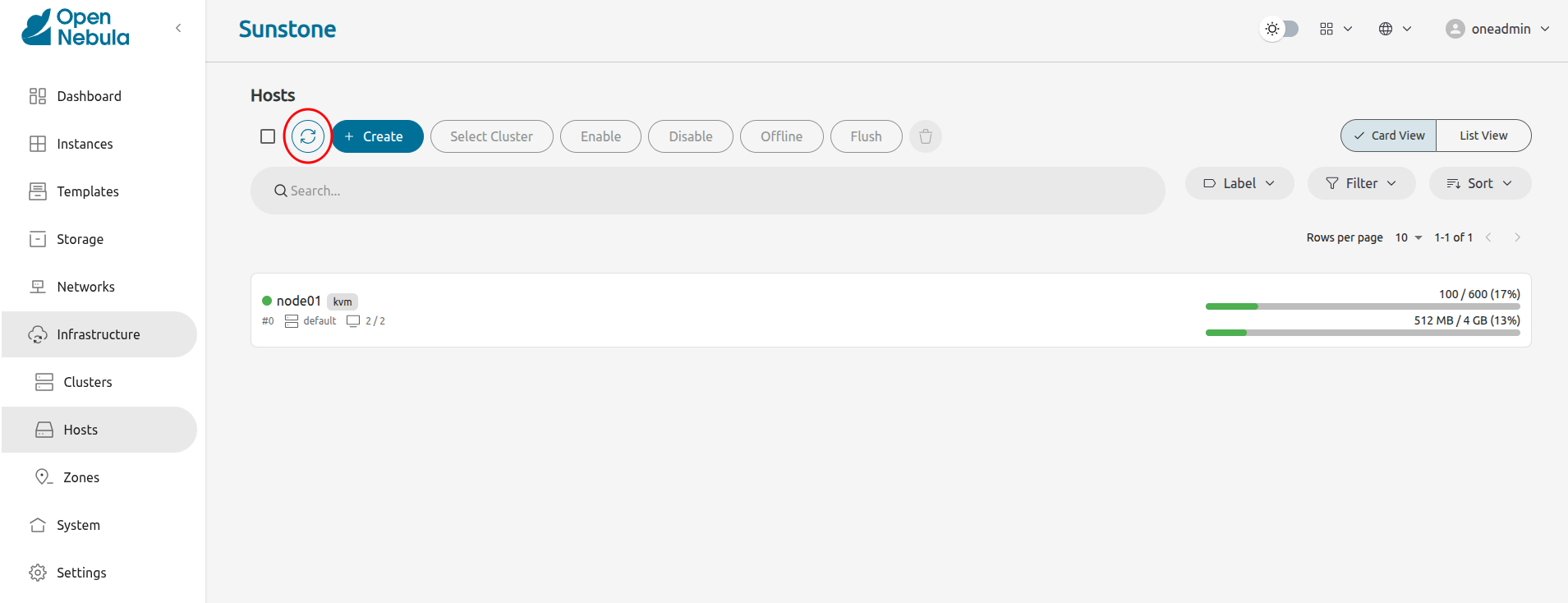

Finally, return back to the Hosts list, and check that the Host has switched to ON status. It can take up to one minute. Click on the refresh button to check the status more frequently.

sunstone_list_hosts

Add Host with CLI

To add a node to the cloud, run this command as oneadmin in the Front-end (replace <node01> with your node hostname):

$ onehost create <node01> -i kvm -v kvm

$ onehost list
  ID NAME            CLUSTER   RVM      ALLOCATED_CPU      ALLOCATED_MEM STAT
   1 localhost       default     0                  -                  - init

# After some time (up to 1 minute)

$ onehost list
  ID NAME            CLUSTER   RVM      ALLOCATED_CPU      ALLOCATED_MEM STAT
   0 node01          default     0       0 / 400 (0%)     0K / 7.7G (0%) on

Next steps

Now, you can continue by controlling and extending your cloud:

Configuring Storage and Networking
Exploring the Product guides, such as Control Plane Configuration, Cloud Cluster Configuration and Virtual Machines Operation
