Run a Kubernetes Cluster on OpenNebula

Overview

Previous tutorials of this Quick Start guide show how to use miniONE to:

This tutorial builds on the infrastructure created in those previous tutorials. By following it, you can:

  • Download a complete Kubernetes cluster from the OpenNebula Public Marketplace
  • Deploy the cluster on the KVM Host installed by miniONE
  • Validate the cluster by running a simple test application

This tutorial was designed and tested on an AWS metal instance – the same c5.metal instance used for the miniONE on AWS guide. However, you should also be able to complete this tutorial on an on-premises installation with sufficient resources (for requirements, see Deploy OpenNebula On-prem).

As mentioned above, the Kubernetes cluster deployed in this tutorial is available in the OpenNebula Public Marketplace. You can find it as the multi-VM appliance Service OneKE, the OpenNebula Kubernetes Edition.

To deploy the Kubernetes cluster, we’ll follow these high-level steps:

  1. Download the OneKE Service from the OpenNebula Marketplace.
  2. Instantiate a private network on the Edge Cluster.
  3. Instantiate the Kubernetes Service.
  4. Deploy an application on Kubernetes.

In this tutorial we’ll perform a basic install of the Kubernetes cluster plus the Traefik ingress router and Longhorn storage. The OneKE appliance offers additional options such as High Availability, load balancing and CNI plugins, which are out of the scope of this guide.

Step 1. Download the OneKE Service from the OpenNebula Marketplace

The OpenNebula Public Marketplace is a repository of Virtual Machines and appliances which are curated, tested and certified by OpenNebula.

The Kubernetes cluster is packaged in a multi-VM service appliance listed as Service OneKE . To download it, follow the same steps as when downloading the WordPress VM:

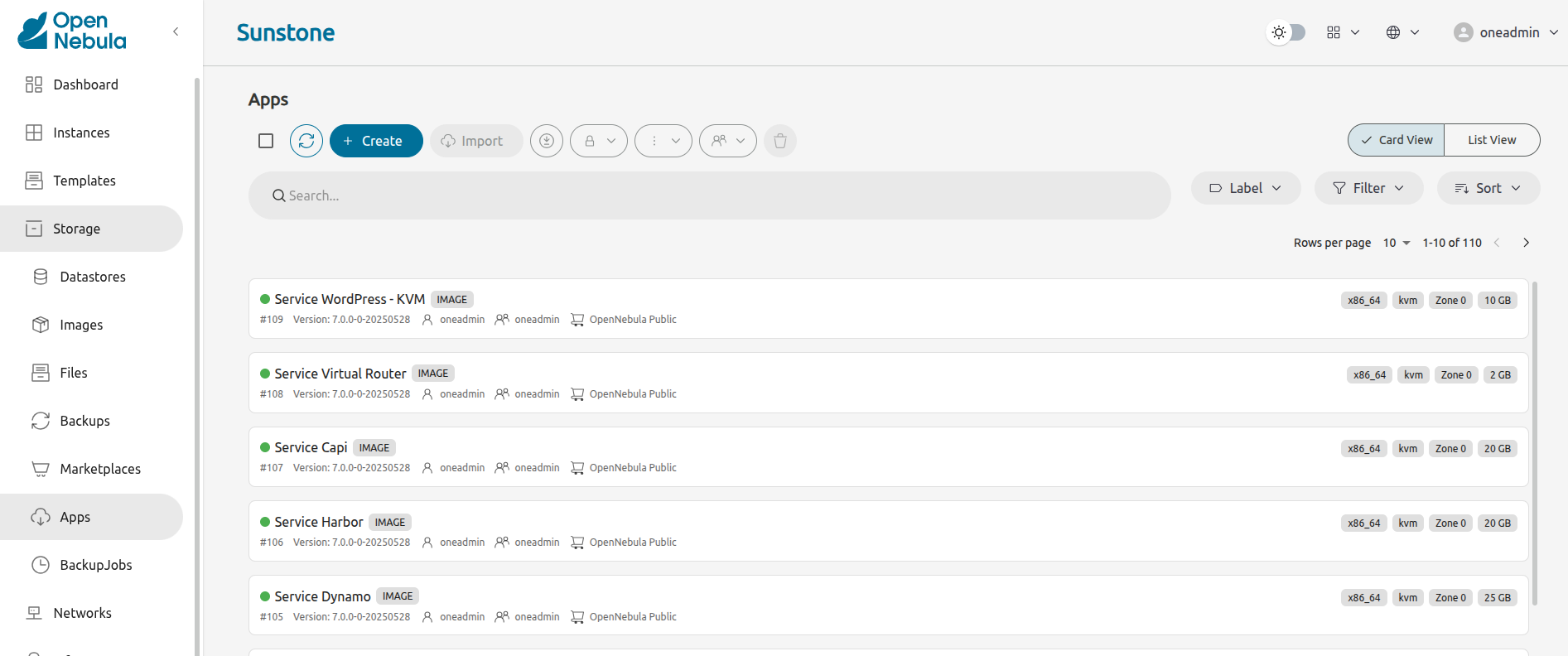

Open the left-hand pane, then select Storage -> Apps. Sunstone will display the Apps screen, showing the first page of apps that are available for download.

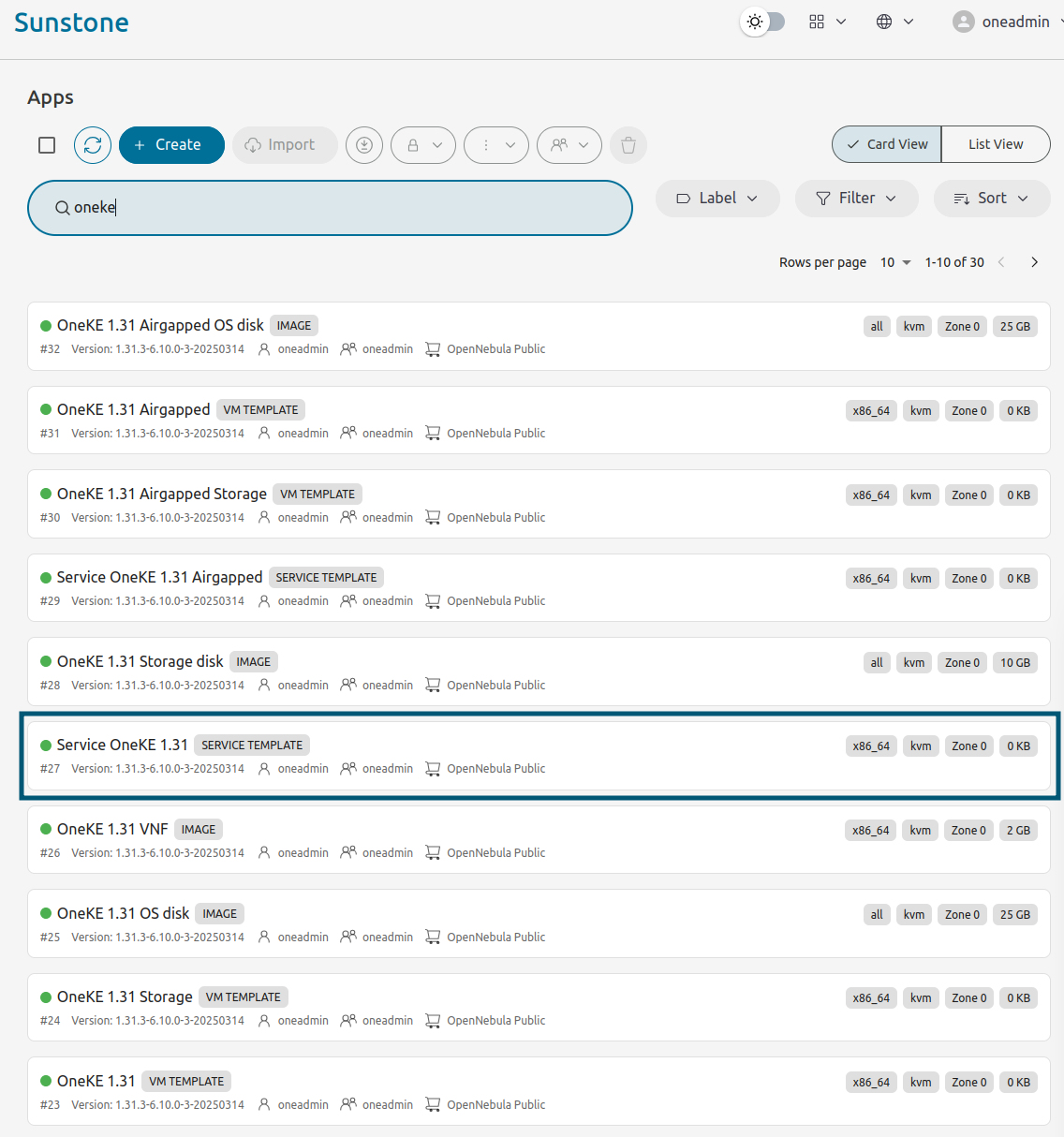

In the search field at the top, type oneke to filter by name. Then, select Service OneKE with the highest version number, in this case Service OneKE 1.31 highlighted below.


Click the Import button.

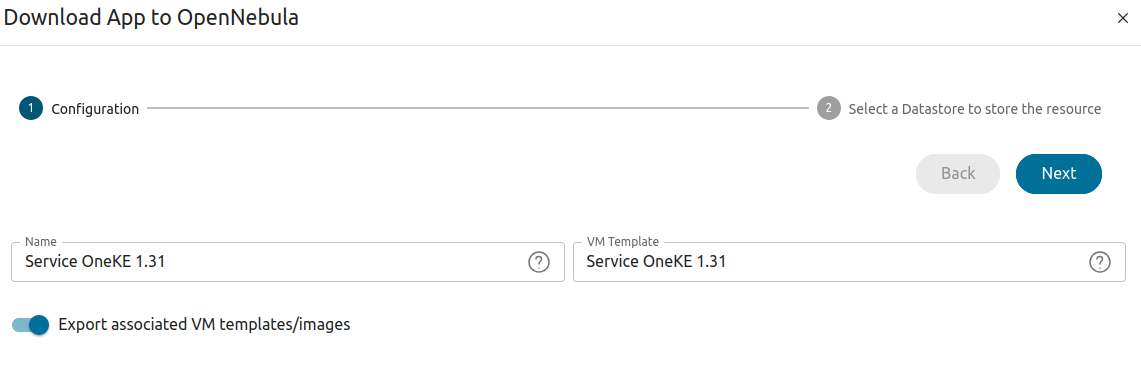

As with the WordPress appliance, Sunstone displays the Download App to OpenNebula wizard. In the first screen of the wizard, click Next.

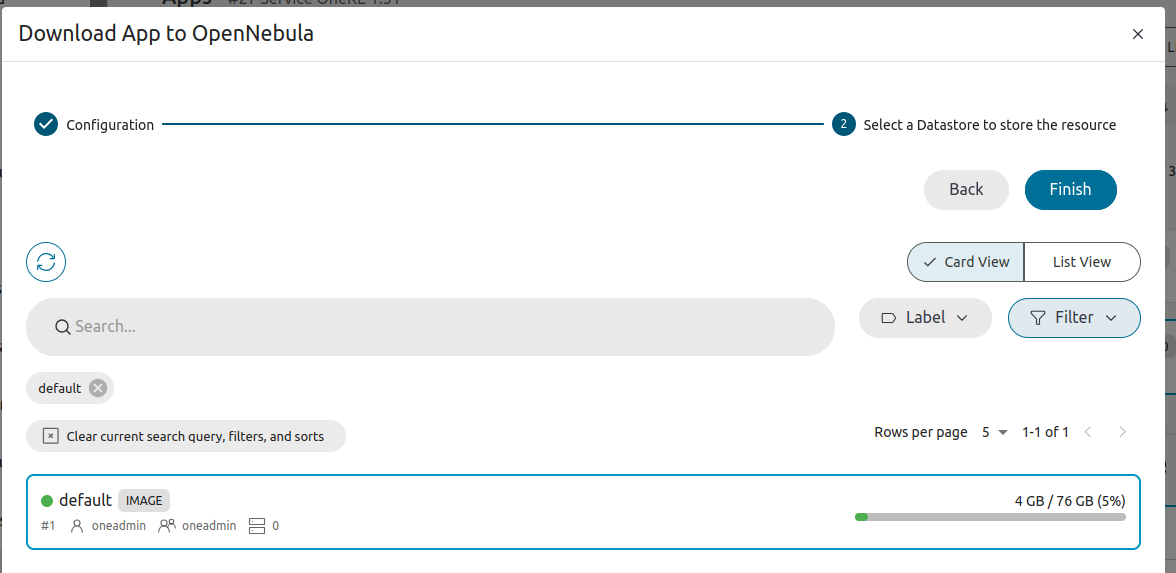

In the second screen you will need to select a datastore for the appliance. Select the default datastore.

kubernetes-qs-marketplace-datastore

Click Finish. Sunstone will import the appliance template and display a message at bottom right. To see the imported template, in the left-hand menu select Templates -> Service Templates:


Step 2. Instantiate a Private Network on the Cloud Cluster

In this step we will create a new virtual network and assign a range of private IPs to. This will network will be used by the OneKE service for internal communication.

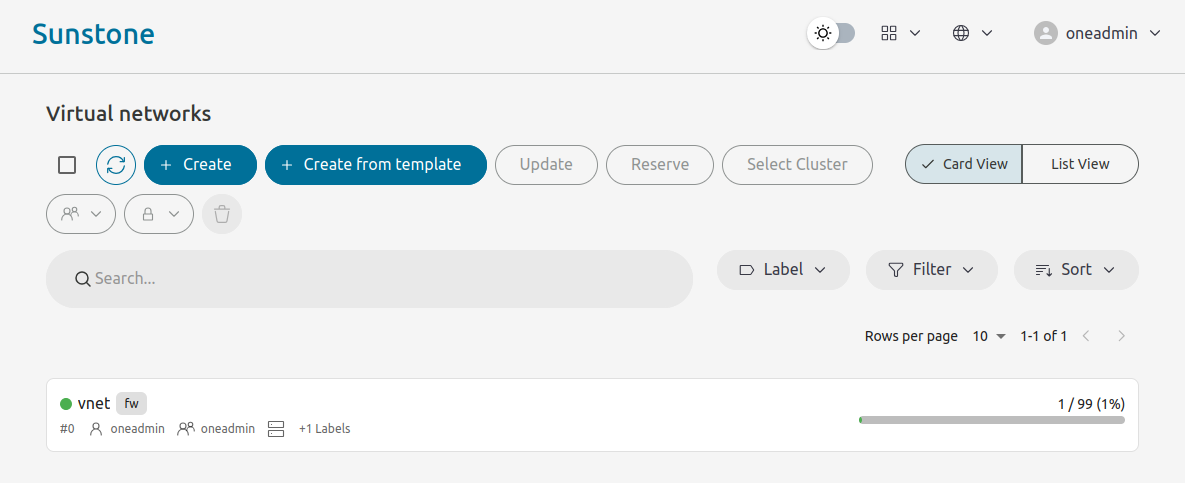

In Sunstone, open the left-hand pane, then select Networks -> Virtual Networks. Sunstone displays the Virtual networks page showing the network automatically created by miniONE:


Click the Create button at the top. Sunstone will display the Create Virtual Network screen. Enter a name for the network – for this example we will use privnet. Then, click Next.

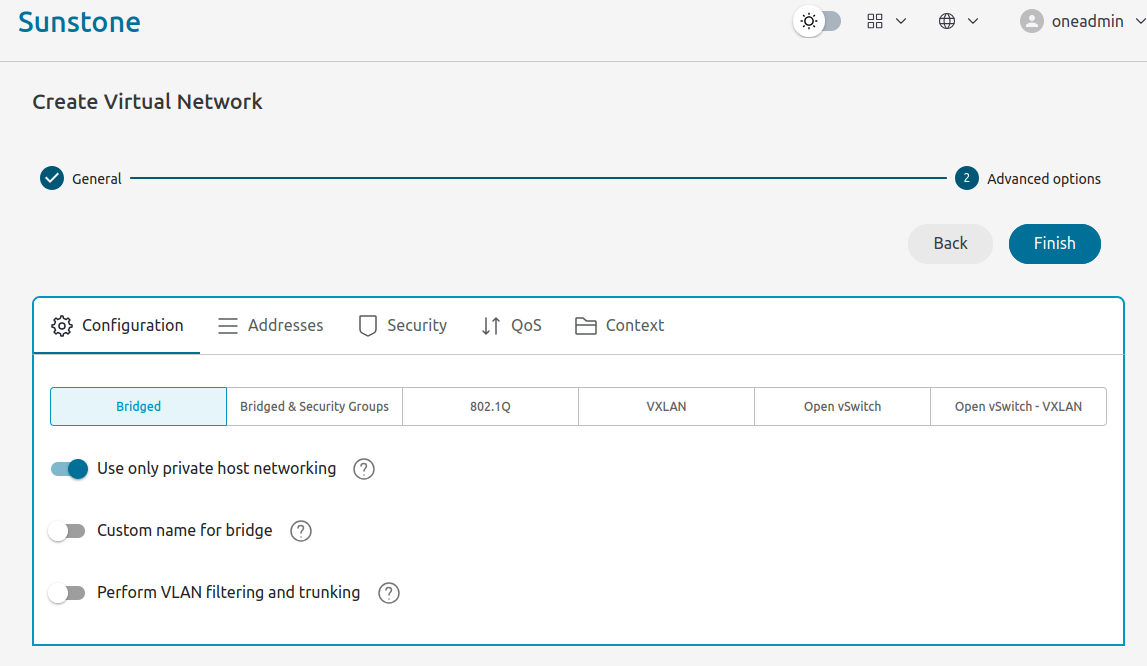

In the next screen, activate the Use only private host networking switch:

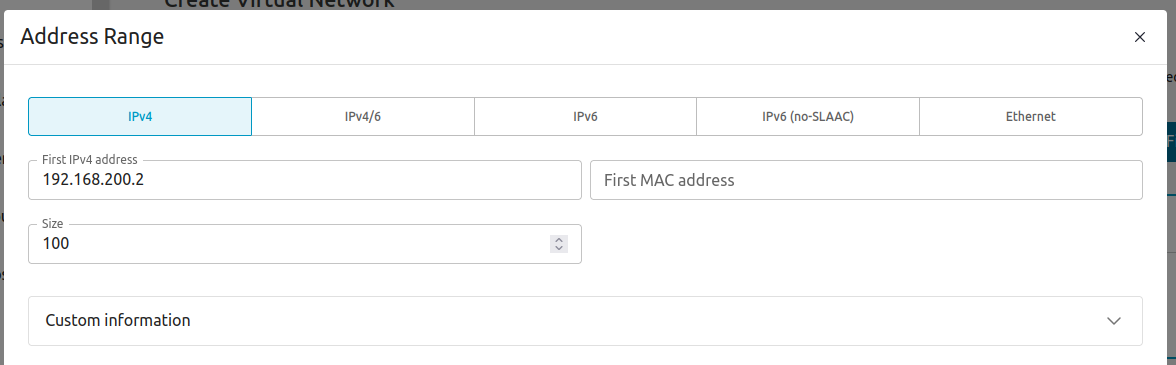

Then, click the Addresses tab. Here we will enter a range of private IP addresses. For this example, enter 192.168.200.2 for the base network address, and set the network size to 100.


Click Finish.

Step 3. Instantiate the Kubernetes Service

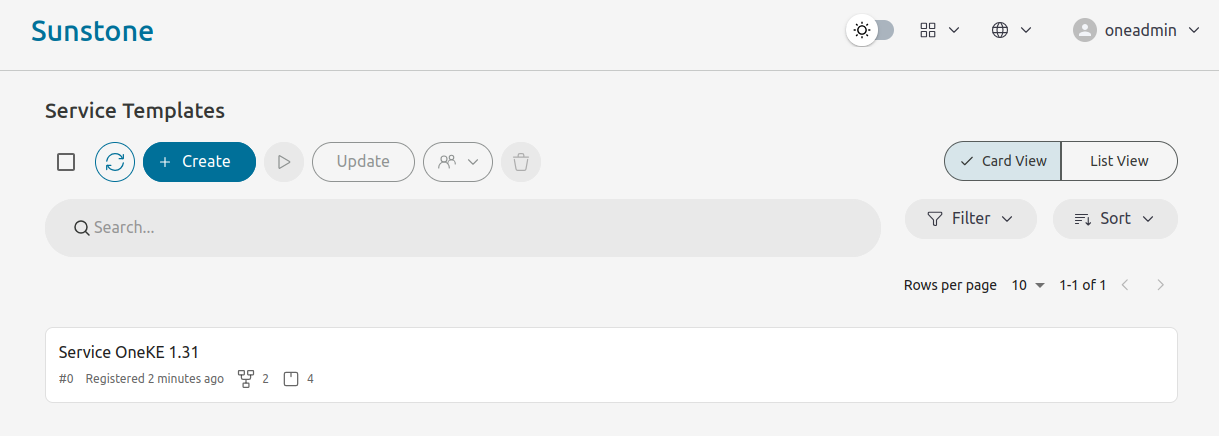

In the left-hand pane, select Templates -> Service Templates.

Select Service OneKE 1.31, then click the Instantiate icon icon2.

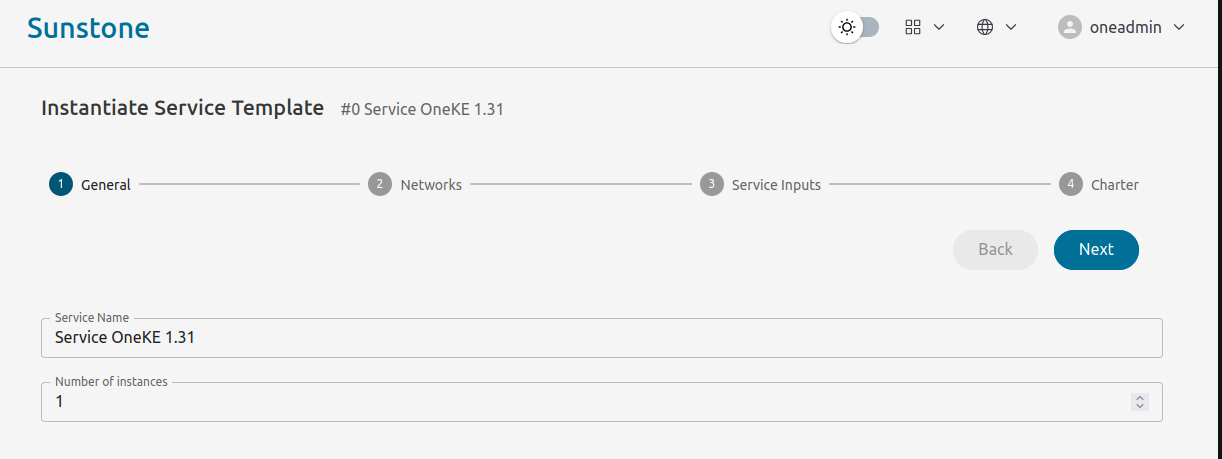

Sunstone displays the Instantiate Service Template wizard. In the first screen you can give your service a name and specify the number of instances to instantiate. In this example we’ll leave the default name Service OneKE 1.31 and start a single instance.

kubernetes-qs-service-start

Click Next to go to the next screen, Networks.

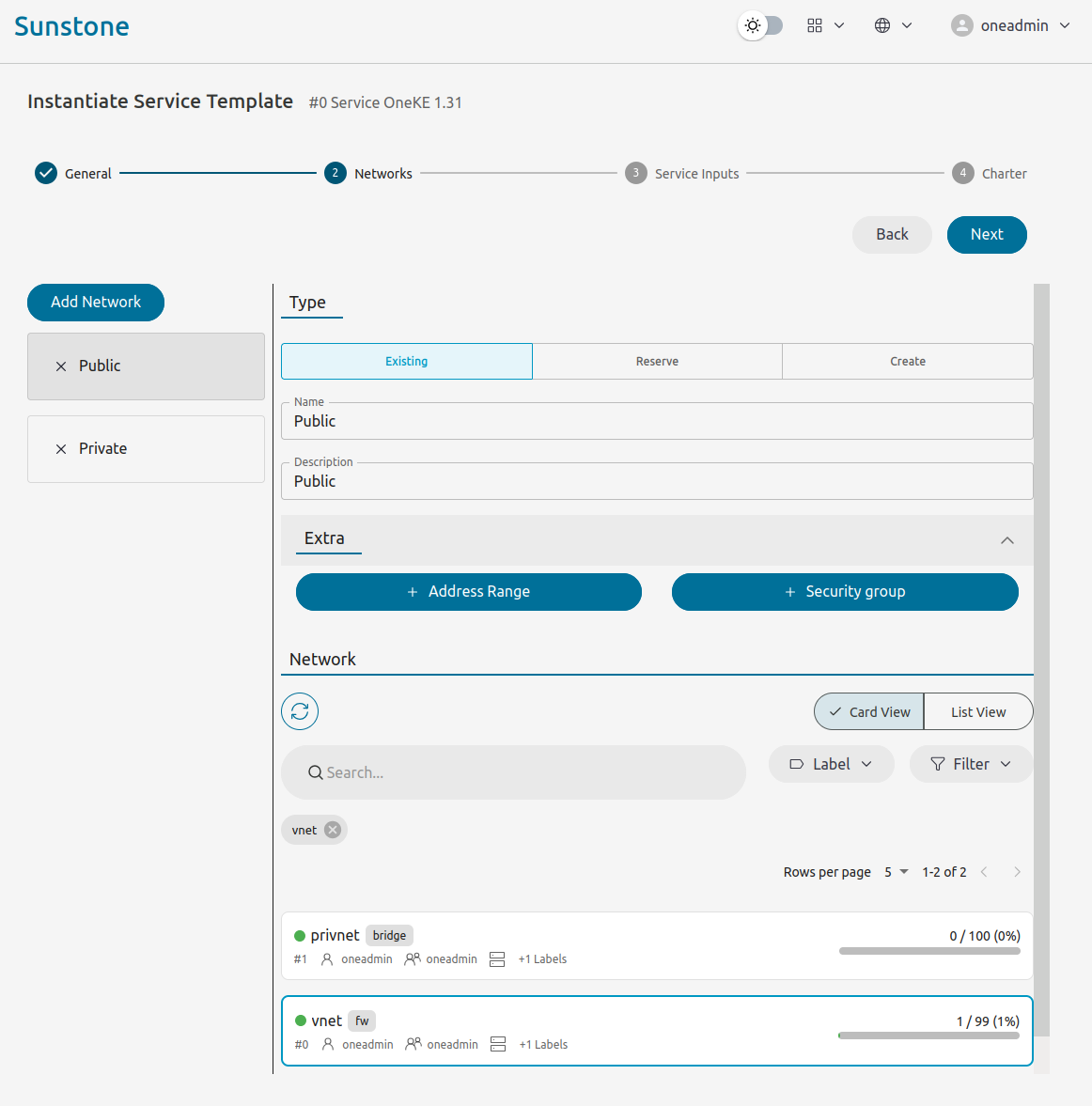

Here we will select the private and the public network for the OneKE service.

To select the public network, click the Public tab on the left, then select network vnet. For the private network, click the Private tab, then select privnet.


Click Next. Sunstone displays the Service Inputs screen:


Here you can define parameters for the cluster, including a custom domain, plugins, VNF routers, storage options and others.

For this tutorial we’ll apply the following configuration:

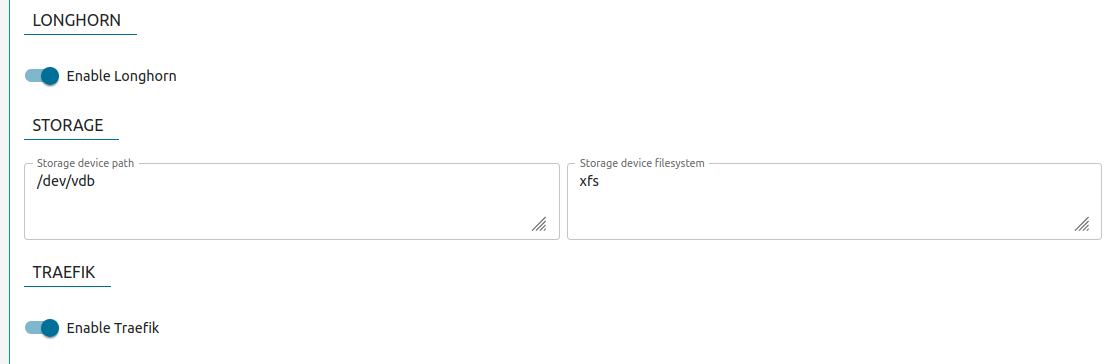

In the Kubernetes Cluster tab, scroll down and activate Enable Longhorn. Then scroll down to the bottom of the page and Enable Traefik.


Click Next.

In the last screen, click Finish.

Verify the OneKE Service Deployment

To verify that the OneKE Service has correctly deployed, you can either use the Sunstone UI, or the command line the Front-end node.

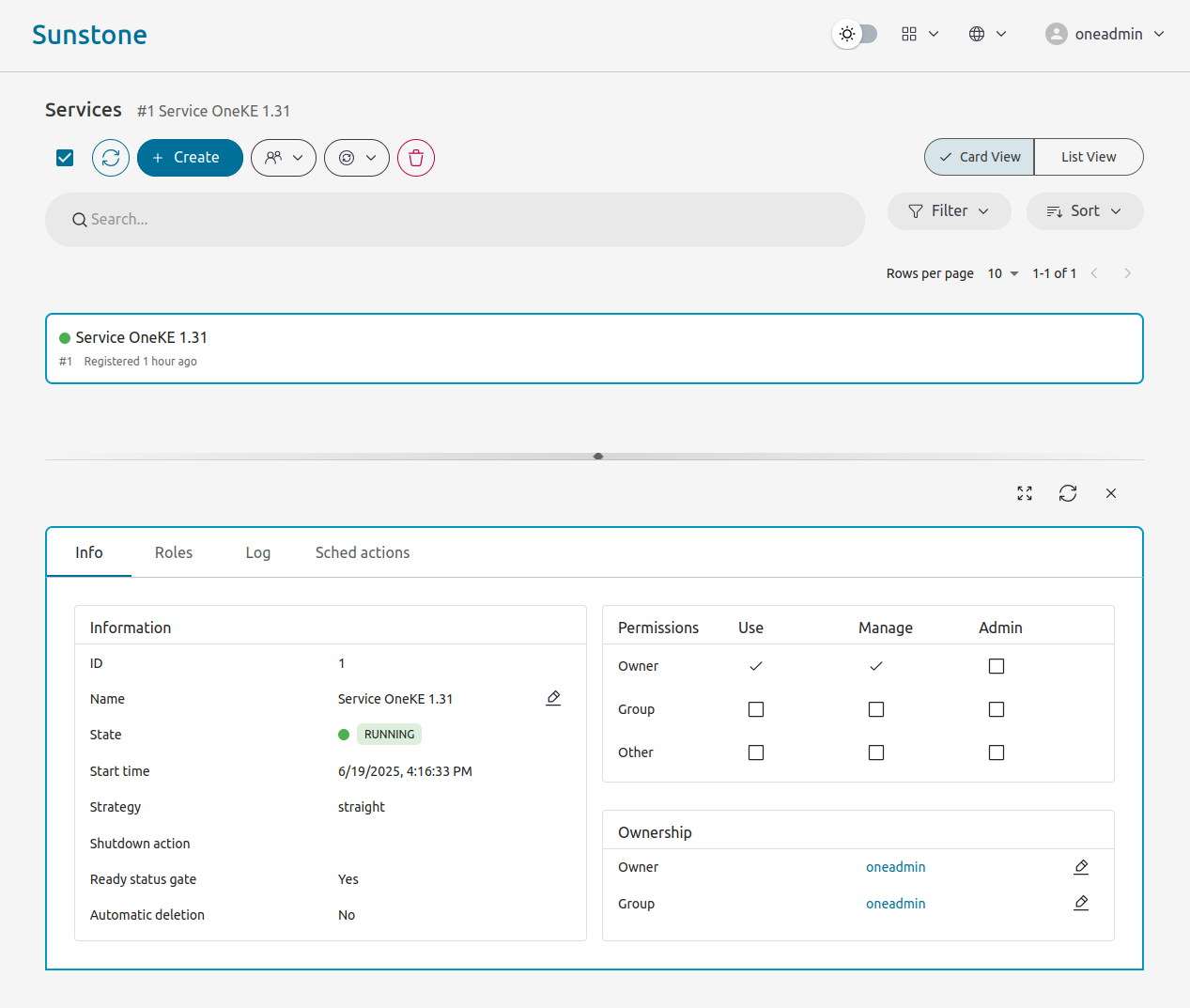

To verify in the Sunstone GUI, open the left-hand pane, then Select Instances -> Services. You should see the OneKE service up and running. Its running VMs should be visible in the Roles tab.


To verify the deployment using the command line, log in to the Front-end node as user oneadmin, then run oneflow list. In the command output, check that the State is RUNNING, as shown below. Bear in mind that the service may take a few moments to display the RUNNING state.

[oneadmin@FN]$ oneflow list
ID USER     GROUP    NAME                                                     STARTTIME STAT
1 oneadmin oneadmin Service OneKE 1.31                                   04/29 08:18:17 RUNNING

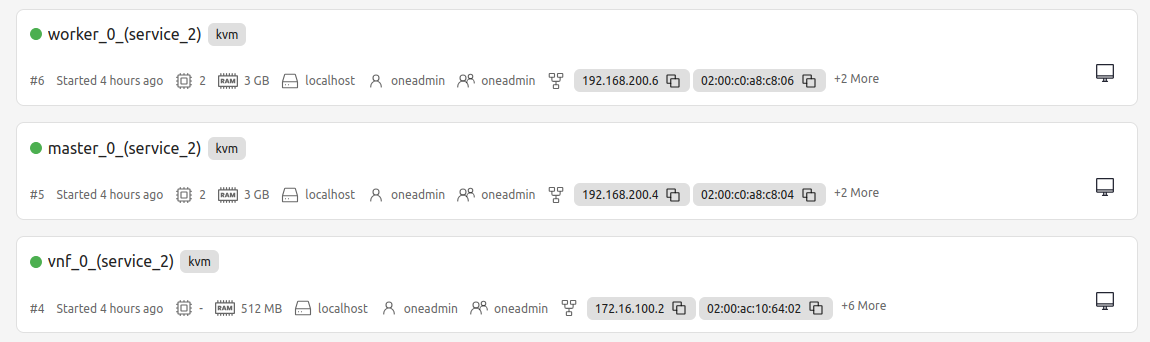

To verify that the VMs for the cluster were correctly deployed, you can use the onevm list command. In the example below, the command lists the VMs for the cluster:

oneadmin@ip-172-31-47-22:~$ onevm list
  ID USER     GROUP    NAME                                         STAT  CPU     MEM HOST                                TIME
   6 oneadmin oneadmin worker_0_(service_2)                         runn    2      3G localhost                       0d 00h00
   5 oneadmin oneadmin master_0_(service_2)                         runn    2      3G localhost                       0d 00h00
   4 oneadmin oneadmin vnf_0_(service_2)                            runn    1    512M localhost                       0d 00h00

At this point you have successfully instantiated the Kubernetes cluster on your local hypervisor.

If the state of the OneKE service as reported by oneflow list remains in DEPLOYING, see below.

Before deploying the test application described in this tutorial, you will need to find out the IP address of the VNF node on the public network – in this case, the vnet network that we set as public network when instantiating the OneKE service – since this is the address that we will use to connect to the application.

Check the IP Address for the VNF Node

To check the VNF node IP in Sunstone, in the left-hand pane go to Instances -> VMs, then check the information displayed under vnf_0_(service_). In the image below, the VNF is **vnf_0_(service_2) and the relevant IP address is 172.16.100.2.


Alternatively, to check on the command line, on the Front-end node as user oneadmin run:

onevm show <VM ID> | less

(Replace VM ID for the VM ID number as shown by onevm show, in this case 4.)

This displays the complete information for the VM, piped through the less pager. Use the up and down arrow to scroll, until you find the VM NICS table:

VM NICS
 ID NETWORK              BRIDGE       IP              MAC               PCI_ID
  0 vnet                 minionebr    172.16.100.2    02:00:ac:10:64:02
  1 privnet              onebr1       192.168.200.2   02:00:c0:a8:c8:02
  2 vnet                 minionebr    172.16.100.3    02:00:ac:10:64:03
  3 privnet              onebr1       192.168.200.3   02:00:c0:a8:c8:03

The relevant IP is the first displayed for the vnet network, 172.16.100.2.

To stop displaying the information for the VM, press q.

If you do not see all VMs listed, or if the OneKE Service is stuck in DEPLOYING, see Known Issues below.

Step 5. Deploy an Application

In this tutorial we will deploy a very simple application designed for training purposes: a MariaDB database to which you can add sample data from the Kubernetes master. The database will reside in the Kubernetes cluster’s Longhorn storage, so the first step is to enable storage for the cluster.

Enable Longhorn Storage

We can enable Longhorn storage with a single command:

oneflow scale <OneKE service ID> storage 1

Most probably, the OneKE service ID should be 1. You can find out with the oneflow list command:

[oneadmin@FN]$ oneflow list
ID USER     GROUP    NAME                                                     STARTTIME STAT
1 oneadmin oneadmin Service OneKE 1.31                                   04/29 08:18:17 RUNNING

In the example above, the ID is 1, so:

oneflow scale 1 storage 1

This will create a Virtual Machine as part of the OneKE Service which will serve as Longhorn storage for the Kubernetes cluster.

The command will take a moment to execute. During that time the OneKE service will change state, from RUNNING to COOLDOWN and back to RUNNING. You must wait until this cycle is finished to continue with the next steps. You can continuously check the status of the cluster by running (as oneadmin on the Front-end node):

oneflow top

This produces the output of oneflow list, updated continuously. Once the status is RUNNING, to exit the command type Ctrl+C.

On the Front-end node, we can check the status of the newly-created storage VM with onevm list:

oneadmin@ip-172-31-47-22:~$ onevm list
  ID USER     GROUP    NAME                                             STAT  CPU     MEM HOST                                   TIME
   7 oneadmin oneadmin storage_0_(service_2)                            runn    2      3G localhost                          0d 04h38
   6 oneadmin oneadmin worker_0_(service_2)                             runn    2      3G localhost                          0d 05h36
   5 oneadmin oneadmin master_0_(service_2)                             runn    2      3G localhost                          0d 05h36
   4 oneadmin oneadmin vnf_0_(service_2)                                runn    1    512M localhost                          0d 05h36

Log into the Master Node and Deploy the Application

First, we will need to connect to the Kubernetes master node via SSH. To this, we need to use the VNF node as “jump host”, i.e. we connect first to the VNF node and from there to the Kubernetes master node.

As we have seen above, in this example the IP address of the VNF is 172.16.100.2. With our network configuration, the IP address for the Kubernetes master node is probably 192.168.200.4 (the second IP address in the private network privnet that we assigned to the OneKE service). Of course if your configuration varies (for example if you installed additional networked Virtual Machines before deploying the OneKE service), then you will have to use the appropriate IPs.

To connect to the Kubernetes master node, from the Front-end, as user root run:

ssh -A -J root@172.16.100.2 root@192.168.200.4

An example run as user root:

root@ip-172-31-47-22:~# ssh -A -J 172.16.100.2 192.168.200.4
Warning: Permanently added '172.16.100.2' (ED25519) to the list of known hosts.
The authenticity of host '192.168.200.4 (<no hostip for proxy command>)' can't be established.
ED25519 key fingerprint is SHA256:8fbzSN9OgOGZ1+2Zfdiq9r/6e+yEIJe1Ar6cqLpZ2Cw.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.200.4' (ED25519) to the list of known hosts.
Welcome to Ubuntu 22.04.5 LTS (GNU/Linux 5.15.0-126-generic x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/pro

 System information as of Wed Jun  4 10:10:11 UTC 2025

  System load:           0.61
  Usage of /:            4.8% of 24.05GB
  Memory usage:          8%
  Swap usage:            0%
  Processes:             106
  Users logged in:       0
  IPv4 address for eth0: 10.0.2.15
  IPv6 address for eth0: fec0::211:22ff:fe33:4455

 * Strictly confined Kubernetes makes edge and IoT secure. Learn how MicroK8s
   just raised the bar for easy, resilient and secure K8s cluster deployment.

   https://ubuntu.com/engage/secure-kubernetes-at-the-edge

Expanded Security Maintenance for Applications is not enabled.

8 updates can be applied immediately.
8 of these updates are standard security updates.
To see these additional updates run: apt list --upgradable

1 additional security update can be applied with ESM Apps.
Learn more about enabling ESM Apps service at https://ubuntu.com/esm


The list of available updates is more than a week old.
To check for new updates run: sudo apt update


   ___   _ __    ___
  / _ \ | '_ \  / _ \   OpenNebula Service Appliance
 | (_) || | | ||  __/
  \___/ |_| |_| \___|


 2/3 Configuration step is in progress...

 * * * * * * * *
 * PLEASE WAIT *
 * * * * * * * *

In the above example the Kubernetes master is self-configuring, hence the “PLEASE WAIT” message.

Once you have connected to the Kubernetes master node, check if kubectl is working, by running kubectl get nodes:

root@oneke-ip-192-168-200-4:~# kubectl get nodes
NAME                     STATUS   ROLES                       AGE     VERSION
oneke-ip-192-168-200-4   Ready    control-plane,etcd,master   5h32m   v1.31.3+rke2r1
oneke-ip-192-168-200-6   Ready    <none>                      5h32m   v1.31.3+rke2r1
oneke-ip-192-168-200-8   Ready    <none>                      4h38m   v1.31.3+rke2r1

The last row in the output is the storage role in the cluster created in the previous step, with IP 172.168.200.8.

Now we are ready to download and deploy our example application.

We can download the application from the master node itself, by running:

wget https://github.com/alpeon/training-files/raw/refs/heads/main/OneKE/test-app.tar

This downloads the test-app.tar package file. Unpack it with:

tar xvf test-app.tar

This creates the test-app directory, which contains the YAML manifest files we will use to deploy the application.

Switch to the test-app directory:

cd test-app

Create all of the applications in the directory:

kubectl apply -f .

For example:

root@oneke-ip-192-168-200-4:~/test-app# kubectl apply -f .
deployment.apps/mariadb created
persistentvolumeclaim/mariadb-data created
service/mariadb created
deployment.apps/test-app created
ingressroute.traefik.io/test-app-ingress created
service/test-app-service created

Check the status of the applications:

kubectl get pods

This should display the status of the database and the test-app application:

NAME                        READY   STATUS    RESTARTS   AGE
mariadb-55496464b6-66kl9    1/1     Running   0          45s
test-app-56b5745c76-bxxld   1/1     Running   0          45s

The process may take some seconds to complete. When both pods display status Running, we are ready to connect to the application.

Connect to the Application

From the Front-end node, as user oneadmin run curl <VNF node IP>. In our case:

curl 172.16.100.2

You should be greeted with:

oneadmin@ip-172-31-47-22:~$ curl 172.16.100.2
<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Spaceship: Nebula Explorer</title>
</head>

<body>

  <div>
      <h1>
        'sup Space Man, want to explore some Nebula?
      </h1>

      <div>
        Visit /create-db to create the database
        <br>
        Visit /insert-dummy to insert some dummy data
        <br>
        Visit /get-data to print out the dummy data

        </div>

        <div>
          <h2>
            See you, Space Cowboy!
          </h2>
          <pre>
          ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠐⢦⣤⣤⣤⣄⣤⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣽⣿⢨⡿⠟⠛⣻⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿
          ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢲⣤⣤⣀⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣉⠻⣿⣿⣿⣿⣿⡏⠉⠉⠉⠉⢩⣿
          ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢈⣩⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣶⡭⢝⣻⣿⣿⣿⣷⣿⣿⣿⣿
          ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠠⢤⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣯⣭⡿⠛⣻⣿⣿⣿⣿
          ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢠⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣶⣿⣻⣿⣿⣿⣿
          ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣰⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣶⣶⣥⣬⣭⣿
          ⠀⠀⠀⠀⠀⠀⠀⠀⠰⠚⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣯⡍⠹⠿
          ⠀⠀⠀⠀⠀⠀⠀⢀⣴⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡇⣴⣶⣶⣾
          ⠀⠀⠀⡄⠀⠀⣠⢟⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿⣿⣿⣿⣿⠋⢻⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡇⢛⡛⣹⣿
          ⠀⠀⠀⣷⡀⠀⢱⠟⢻⣿⣿⣿⣿⣿⣿⣿⡿⢫⣽⣿⣿⣿⣿⣿⣿⣿⣏⢹⠏⣼⣿⣟⣛⣙⡒⣾⣿⣀⢹⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠿⢛⣣⣿⣿
          ⡄⠀⢀⣿⣇⣤⣾⢾⣿⣿⣿⣿⣿⣿⣿⣿⡇⣾⢿⣿⣿⣿⣿⣿⣿⣿⢿⣇⠀⠙⠿⠿⣿⡏⠛⢿⡮⠙⢻⡿⢡⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣭⢶⣿⡿⣿⣿⣿
          ⣇⠀⢸⣿⡏⠁⠀⣾⣿⣿⣿⣿⣿⣿⣿⣿⣧⢧⡸⡿⠟⣿⣿⣿⣿⣿⠈⣿⠀⠀⠀⠀⠀⠀⠀⠬⡷⠖⠋⣠⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿⠿⠋⠁⠀⠙⠻⢶⣍⡛
          ⡿⢿⡇⢹⡿⢦⡀⠙⠛⢿⣿⣿⣿⣿⣿⣿⣿⣎⢻⡛⠂⣿⣿⡿⠙⠃⠈⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠁⠀⣿⡟⢛⣦⣹⣿⣿⣿⣿⣿⣿⣿⣿⣷⣶⠾⠀⠀⠀⠀⠀⠀⠉⠻
          ⣦⣿⡉⠻⣿⣯⠹⠀⣐⢦⣿⣿⣿⣿⣿⣿⣿⣿⣷⣄⣠⠘⢿⣷⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣿⢿⠟⢠⣿⣿⣿⣿⣿⣿⢿⡛⠋⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⢻⠙⢿⣦⡈⠛⣄⡀⠈⠀⠉⠛⣿⣿⣿⣿⣿⣿⣿⣿⣿⣧⢸⠇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠸⠄⠀⣾⣿⣿⣿⣿⣿⠛⠛⠛⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⠘⠀⠀⠙⢻⣶⣄⠙⢦⡀⠀⠀⠈⠹⣿⣿⣿⣿⣿⣿⣿⣿⣧⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢀⠀⠀⢀⡆⣼⣿⣿⣿⢻⡍⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⠀⠀⠀⠀⠀⠈⠻⢷⣄⠈⠦⡀⣀⣴⢶⣿⣟⠛⠫⠍⠉⠉⠉⠙⠛⠛⠛⠛⠛⠛⠛⠛⢻⣿⣟⡽⠶⠚⢿⣷⡾⠋⡰⠋⢹⣟⠙⢷⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⠀⠀⠀⠀⠀⢀⣀⣀⠻⢿⡟⠉⠻⠶⠧⠄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣠⣶⠿⢯⡥⣤⠤⣤⣀⣻⢅⡴⠃⠀⢸⠛⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⠀⠀⣀⠀⢰⣿⡿⠿⢧⣤⣾⡿⠛⠻⢿⡛⠲⢤⣀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣠⢾⡿⠋⠀⠠⣄⣈⢛⣄⡹⣧⡞⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⠀⠀⠈⠁⢺⣿⡇⣠⣶⣿⣿⣿⣿⣿⣿⣿⣷⣶⣭⡳⢤⡀⠀⠀⠐⢤⣠⢞⣵⠋⠀⠀⠀⠀⠈⠛⠿⠋⣹⣾⡛⠶⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⠀⠀⠀⠀⣸⣿⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⢿⣷⣶⣶⣿⣵⣿⣿⣷⣄⠀⠀⠀⠀⠀⠀⣼⠃⠀⠙⠲⡌⠳⣄⠀⠀⠀⠀⣀⡤⠶⠶⠦⣤⣀⠀⢀⣀⡀⠀⠀⠀⠀⠀
          ⠀⣠⣴⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣝⣿⣧⣝⣻⡿⣿⣿⣿⣷⣦⣄⣀⣀⣼⣿⡷⣄⠀⠀⠙⢦⣸⣧⠔⣛⣿⠷⠋⠙⠲⠶⣄⠉⠉⠀⠀⠀⠀⠀⠀⠀⠀
          ⣼⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣝⢿⣄⣉⣷⢬⣿⣿⣿⣿⣿⣿⣿⣿⠿⠿⣷⣄⠀⠀⠛⠛⠛⠉⠀⠀⠀⠀⠀⠀⠈⢷⡄⠀⠀⠀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣆⠹⣿⣷⣿⣿⣿⣿⣿⡿⠛⠉⠀⠀⠀⠈⠛⢷⣤⣀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠹⣄⢀⠀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣆⠈⠻⣿⣿⣿⣿⣮⡳⣄⠀⠀⠀⠀⠀⠀⠀⠈⠛⠛⠲⢤⣀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠻⣶⡄⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣄⠘⣿⣿⣏⠉⠻⣽⣧⣤⣴⣖⣲⠶⠬⠽⠿⠶⠖⠷⣬⡉⠉⠂⠀⠀⠀⠀⠀⠀⠀⠀⠉⠓⠶⠶⡂
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡃⠈⢻⣿⢧⢀⣠⣙⣻⣿⣿⣿⣷⣄⠀⠀⠀⠀⡀⣿⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣾⣿⣿⣤⠟⢿⣿⣿⣿⣿⣿⣿⣿⣷⣄⠀⢰⡷⣿⣇⣀⣀⣀⣴⣶⣤⣀⠀⠀⠀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡟⠇⠀⢻⣿⣿⣿⣿⣿⣿⣿⣿⡗⢒⣋⣉⣉⣭⣏⠻⣶⡖⢽⣏⠳⣤⡀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣄⠀⠈⣿⡿⣿⣿⣿⣿⣿⣿⣷⣾⣿⣿⣿⡏⠉⠳⢤⡉⢺⣿⡆⠀⠉⠂⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⡀⣹⣿⣶⣝⠿⣿⣿⣿⢿⣿⣿⣿⣿⡇⠀⠀⠀⠙⣾⣿⢻⡄⠀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠙⣿⣿⣷⣌⠛⢿⣌⢻⣿⣿⣿⣿⣷⣴⡤⠀⣿⣿⢰⣿⠀⠀⠀⠀⠀⠀
          ⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣧⡘⢿⣿⣿⣿⣦⡙⠿⣿⣿⣿⣿⣿⣿⠀⠀⣿⣿⣾⣿⣷⠀⠀⠀⠀⠀
        </pre>

Now we can create the database with:

curl 172.16.100.2/create-db

This should return the following:

oneadmin@ip-172-31-47-282:~$ curl 172.16.100.2/create-db
{"message":"Table 'data' created successfully"}

To insert some dummy data into the database:

curl 172.16.100.2/insert-dummy

Repeat this commands to insert more than one data point. Then, verify the inserted data with:

curl 172.16.100.2/get-data

For example:

oneadmin@ip-172-31-47-22:~$ curl 172.16.100.2/get-data
[{"data1":"2025-06-23 11:51:27","data2":"50","id":1},{"data1":"2025-06-23 11:51:54","data2":"63","id":2},{"data1":"2025-06-23 11:52:09","data2":"84","id":3}]

And that’s it – you have successfully deployed a Kubernetes cluster, and deployed and tested an application.

For more information including additional features for the OneKE Appliance, please refer to the OpenNebula Apps Documentation.

Known Issues

OneFlow Service is Stuck in DEPLOYING

An error in network configuration, or any major failure (such as network timeouts or performance problems) can cause the OneKE service to lock up due to a communications outage between it and the Front-end node. The OneKE service will lock if any of the VMs belonging to it does not report READY=YES to OneGate within the default time.

If one or more of the VMs in the Kubernetes cluster never leave the DEPLOYING state, you can troubleshoot OneFlow communications by inspecting the file /var/log/one/oneflow.log on the Front-end node. Look for a line like the following:

[E]: [LCM] [one.document.info] User couldn't be authenticated, aborting call.

The line above means that provisioning the service exceeded the allowed time. In this case it is not possible to recover the broken VM instance; it must be recreated.

Before attempting to recreate the instance, ensure that your environment has a good connection to the public Internet and does not suffer from any impairments in performance.

To recreate the VM instance, you must first terminate the OneKE service. A service stuck in DEPLOYING cannot be terminated by the delete operation. To terminate it, you need to run the following command:

oneflow recover --delete <service_ID>

Then, re-instantiate the service from the Sunstone UI: in the left-hand pane, Service Templates -> OneKE 1.31, then click the Instantiate icon.

One or more VMs Fail to Report Ready

Another possible cause for failure of the OneKE Service to leave the DEPLOYING state is that a temporary network glitch or other variation in performance prevented one or more of the VMs in the service to report READY to the OneGate service. In this case, it is possible that you see all of the VMs in the service up and running, but the OneKE service is stuck in DEPLOYING.

For example on the Front-end, the output of onevm list shows all VMs running:

oneadmin@ip-172-31-47-22:~$ onevm list
  ID USER     GROUP    NAME                                             STAT  CPU     MEM HOST                                   TIME
   6 oneadmin oneadmin worker_0_(service_2)                             runn    2      3G localhost                          0d 01h36
   5 oneadmin oneadmin master_0_(service_2)                             runn    2      3G localhost                          0d 01h36
   4 oneadmin oneadmin vnf_0_(service_2)                                runn    1    512M localhost                          0d 01h37

Yet oneflow list indicates the OneKE service is DEPLOYING:

ID USER     GROUP    NAME                                                                   STARTTIME STAT
 2 oneadmin oneadmin OneKE 1.31                                                        06/20 12:30:07 DEPLOYING

In this case you can manually instruct the VMs to report READY to the OneGate server. Follow these steps:

  1. From the Front-end node, log in to the VNF node as user root, by running:

    ssh root@<VNF IP>


    (To find out the IP address of the VNF node, see above.)

  2. For each VM in the OneKE service, run:

    onegate vm update <ID> --data "READY=YES"


    For each VM, use the ID reported by the onevm list command. For example, given the onevm output shown above, to update the Kubernetes master node run onegate vm update 5 --data "READY=YES".

    Then, on the VNF node you can check the status of the service with onegate vm show:

    SERVICE 3
    NAME                : OneKE 1.31
    STATE               : RUNNING

    ROLE vnf
    VM 1
    NAME                : vnf_0_(service_2)

    ROLE master
    VM 2
    NAME                : master_0_(service_2)

    ROLE worker
    VM 3
    NAME                : worker_0_(service_2)

    ROLE storage

  3. On the Front-end, run oneflow list again to verify that the service reports RUNNING:

    [oneadmin@FN]$ oneflow list
    ID USER     GROUP    NAME                                                                    STARTTIME STAT
     2 oneadmin oneadmin OneKE 1.31                                                         08/30 12:35:21 RUNNING


One or more VMs is Ready, but Unreachable

As in the previous situation, here onevm list shows all VMs running, but the service is stuck in DEPLOYING; additionally, the VNF VM is not reachable through SSH – and hence you cannot run the onegate vm update command.

In this case, we can try to scale down and up the role of the problematic VM from Sunstone, web UI:

  1. In Sunstone, go to Services, then select the OneKE Service.
  2. In the Roles tab, choose the problematic VM’s role (e.g. worker).
  3. Scale the role to 0.
  4. Wait until VM shuts down and the scaling and cooldown period of the service finishes.
  5. Scale the role to 1.
  6. Verify if the problem is solved and oneflow list reports the RUNNING state.
