Managing Kubernetes with Rancher and the Cluster API Integration

Overview

Previous tutorials of this Quick Start guide show how to use miniONE to:

This tutorial builds on the infrastructure created in those previous tutorials. It shows how to use OpenNebula to quickly and easily install the Rancher Kubernetes management platform, and how to use Rancher’s point-and-click interface to provision OpenNebula CAPI RKE2 clusters. It includes complete examples for deploying services, applying configurations, and upgrading the workload cluster.

This tutorial was designed and tested in an on-premises installation. You can use it, for example, as a continuation of OpenNebula On-prem with miniONE. If you wish to deploy a production-grade Kubernetes cluster on Amazon AWS, please see Run a Kubernetes Cluster.

OpenNebula’s CAPI Appliance

The Kubernetes Cluster API (CAPI) is a set of declarative APIs designed for simplifying and automating Kubernetes life cycle management. OpenNebula’s Kubernetes (CAPI) appliance provides a ready-to-use solution for managing Kubernetes clusters through the Rancher web UI. The appliance is fully integrated to support OpenNebula as an infrastructure provider via the Cluster API Provider for OpenNebula.

As shown in this tutorial, the CAPI appliance eliminates the need for manual configuration – it allows you to effortlessly create, manage, and upgrade CAPI-managed RKE2 clusters, greatly reducing operational overhead.

This tutorial shows how to:

  • Download and install the CAPI Appliance
  • Log in to Rancher and deploy an RKE2 cluster
  • Import the cluster into Rancher
  • Deploy a sample application
  • Deploy additional services
  • Upgrade the workload cluster

Pre-requisites

To follow this tutorial you will need:

Tutorial Outline

For completing this tutorial, we’ll follow these high-level steps:

  1. Create a private network on the Front-end.
  2. Download the CAPI Appliance.
  3. Instantiate the CAPI Appliance.
  4. Connect to the Rancher UI.
  5. Deploy an OpenNebula RKE2 cluster.
  6. Import the cluster into Rancher.

Additionally, we’ll perform various operations on the workload cluster:

  • Install Longhorn
  • Deploy an Nginx service
  • Add a worker node to the cluster

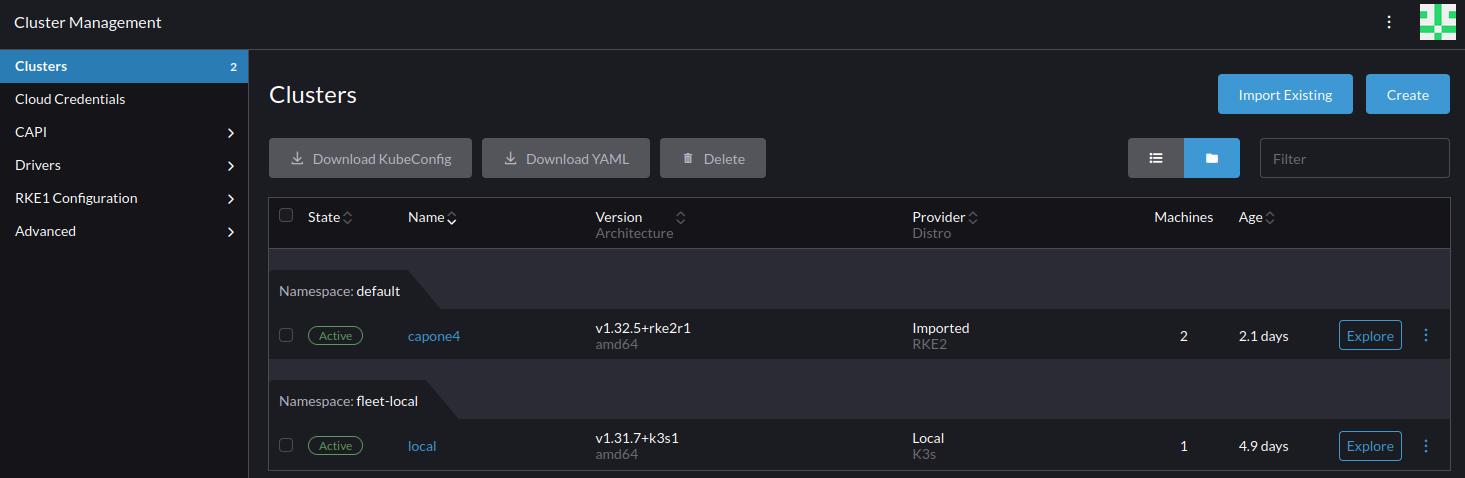

  • Upgrade the workload cluster to the newest version

Step 1. Create a Private Network on the Front-end

In this step we will create a new virtual network and assign a range of private IPs to it. This network will be used by the Virtual Machines in the workload Kubernetes cluster.

To create the network in Sunstone, open the left-hand pane, then select Networks -> Virtual Networks. Sunstone displays the Virtual networks page. If you installed using miniONE, this screen shows the public network automatically installed, called vnet:


Click the Create button at the top. Sunstone will display the Create Virtual Network screen. Enter a name for the network – for this example we will use private. Then, click Next.

In the next screen, activate the Use only private host networking switch:


Then, click the Addresses tab. Here we will enter a range of private IP addresses. For this example, in First IPv4 address enter 192.168.200.2, and set the network size to 100.


Click Finish.

Step 2. Download the CAPI Appliance

From your OpenNebula Front-end, you can download the CAPI appliance from the Sunstone UI or from the command line.

Download from the Sunstone UI

You can download the CAPI appliance by following the same steps as when downloading the WordPress VM:

  1. On the left-hand pane, go to Storage -> Apps.
  2. On the Apps screen showing the available apps, filter for capi.
  3. Click Service Capi to select it, then click Import.
  4. In the import wizard, select the default image datastore, then click Finish.

Download from the Command Line

On the Front-end, as the oneadmin user run:

onemarketapp export 'Service Capi' Capi --datastore default

This automatically downloads the Service Capi appliance into the default datastore.

Step 3. Instantiate the CAPI Appliance

From the Sunstone UI

To instantiate the Service Capi appliance, follow the same steps described for the WordPress VM:

  1. In the left-hand pane, go to Templates -> VM Templates.
  2. Select Capi, then click the Instantiate icon at the top.
  3. Sunstone displays the Instantiate VM Template wizard. In this wizard you can modify the VM’s capacity to your requirements, or leave the default values.
  4. In the last screen of the wizard, click Finish.

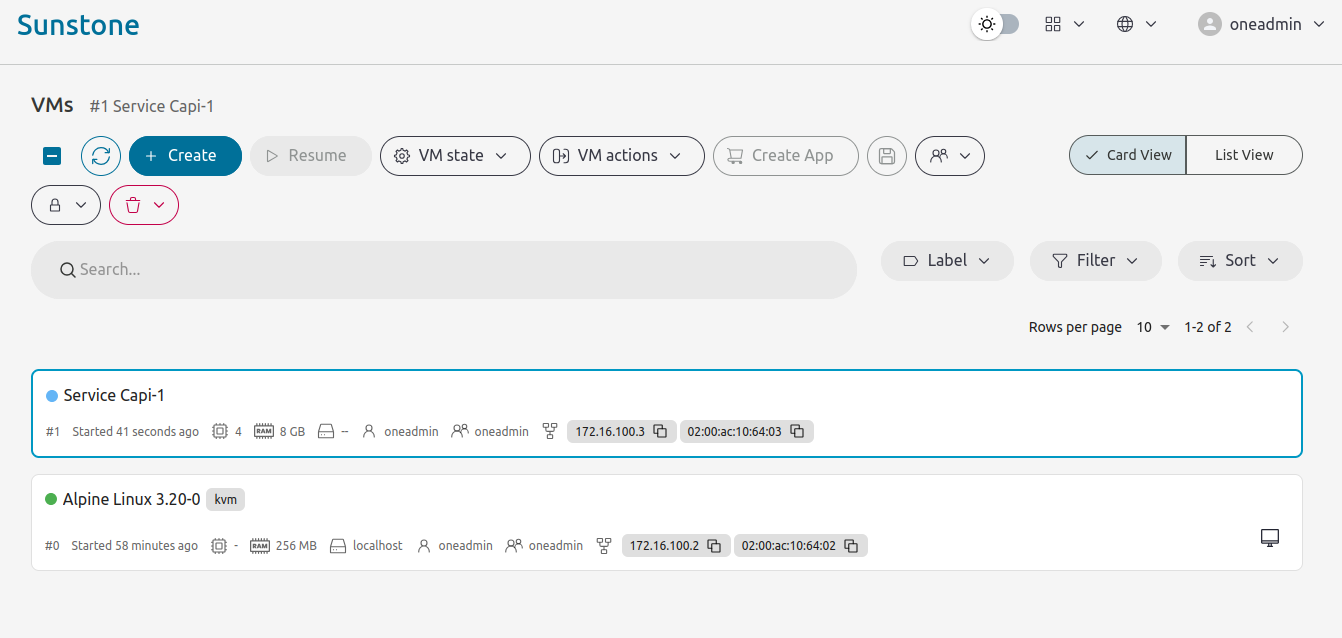

Sunstone will display the Instances -> VMs screen, showing the newly-created VM:

><

Wait a few moments until the VM displays the RUNNING state.

From the Command Line

To instantiate the Capi appliance template without additional user inputs, as user oneadmin run:

onetemplate instantiate Capi --nic vnet

This instantiates the template and attaches the NIC on the public network, vnet, to the Virtual Machine.

When you run the command, you will be prompted for user inputs such as the versions for CAPONE, K3s and Turtles. For this tutorial we can leave the values at their defaults, by hitting Enter at each prompt.

oneadmin@frontend:~$ onetemplate instantiate Capi --nic vnet
There are some parameters that require user input. Use the string <<EDITOR>> to launch an editor (e.g. for multi-line inputs)
  * (ONEAPP_CAPI_CAPONE_VERSION) Capone Version
  * (ONEAPP_CAPI_CERT_MANAGER_VERSION) Cert Manager Chart Version
  * (ONEAPP_CAPI_K3S_VERSION) K3s Version
  * (ONEAPP_CAPI_RANCHER_HOSTNAME) Rancher Hostname
  * (ONEAPP_CAPI_RANCHER_PASSWORD) Rancher Password
  * (ONEAPP_CAPI_RANCHER_VERSION) Rancher Chart Version
  * (ONEAPP_CAPI_TURTLES_VERSION) Turtles Chart Version
VM ID:
2

If you leave the Rancher password empty, it will default to capi1234 (username admin).

The last number in the command output is the ID for the Virtual Machine, in this case 2.

Step 4. Connect to the Rancher UI

To connect to the Rancher interface, fire up a web browser and go to https://<VM IP>.sslip.io. In this tutorial, the IP is 172.16.100.3. You can obtain the VM’s IP from the Sunstone UI: in the left-hand pane go to Instances -> VMs, then check IP address displayed for the VM (see image above).

Alternatively, on the Front-end run:

onevm show <VM ID>

where VM ID is the number that was given by the onetemplate instantiate command. To quickly filter the IP from the output of onevm show, you can run:

onevm show <VM ID> | grep ETH0_IP=

For example:

oneadmin@frontend:~$ onevm show 2 | grep ETH0_IP=
  ETH0_IP="172.16.100.3",

In this case we will connect to https://172.16.100.3.sslip.io.

><

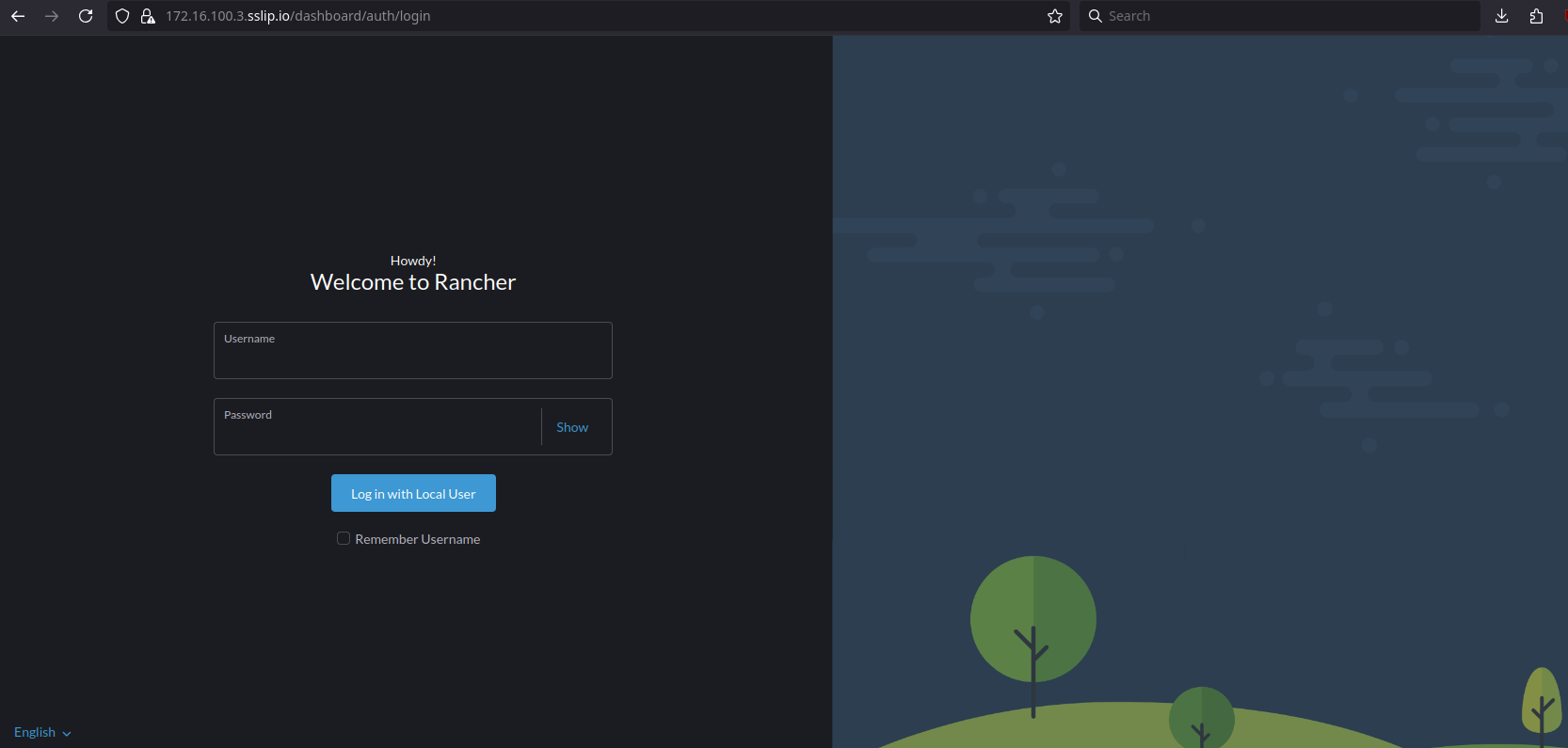

If you did not set a password when instantiating the VM, log in with these credentials:

  • Username: admin
  • Password: capi1234

Step 5. Deploy an OpenNebula RKE2 Cluster

To deploy an OpenNebula RKE2 cluster, there are two available options:

  • Import a YAML file for the cluster
  • Use the Helm charts provided by OpenNebula for Kubeadm and RKE2

For this tutorial we will use the second option, installing via the GUI using the RKE2 Helm chart.

To install from the Helm chart, follow these steps:

In Rancher’s left-hand navigation pane, go to the Management Cluster by clicking the Rancher icon rancher, then select Apps -> Charts.

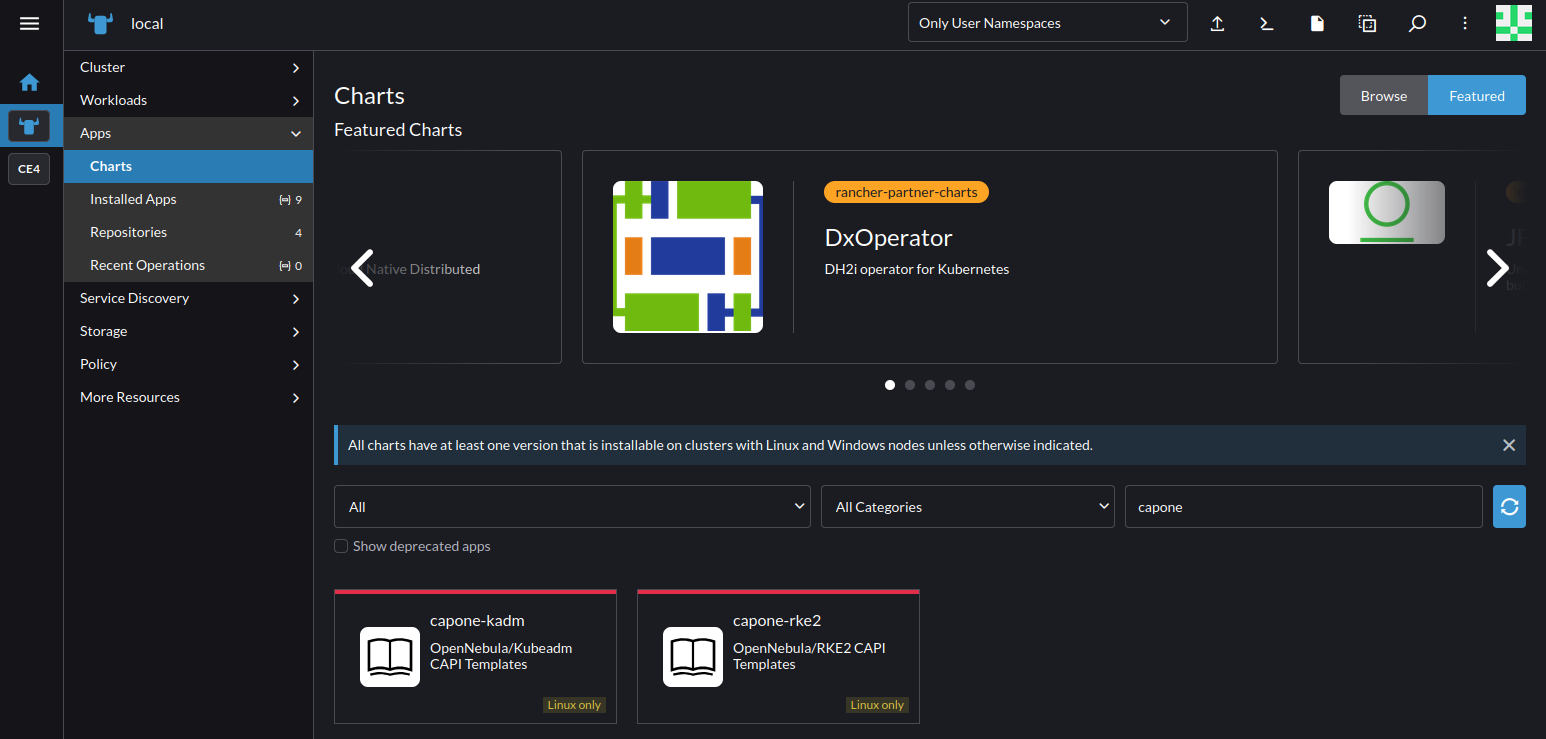

In the Filter charts results input field, type capone. This should display two charts, capone-kadm and capone-rke2.

><

For this tutorial, select capone-rke2.

Rancher will take you to a screen displaying chart details. To install, click the Install button at top right.

In the next screen, you can specify the namespace where the resources will be created, as well as an optional name for the cluster. In this example we will use the default namespace, and name capone4.

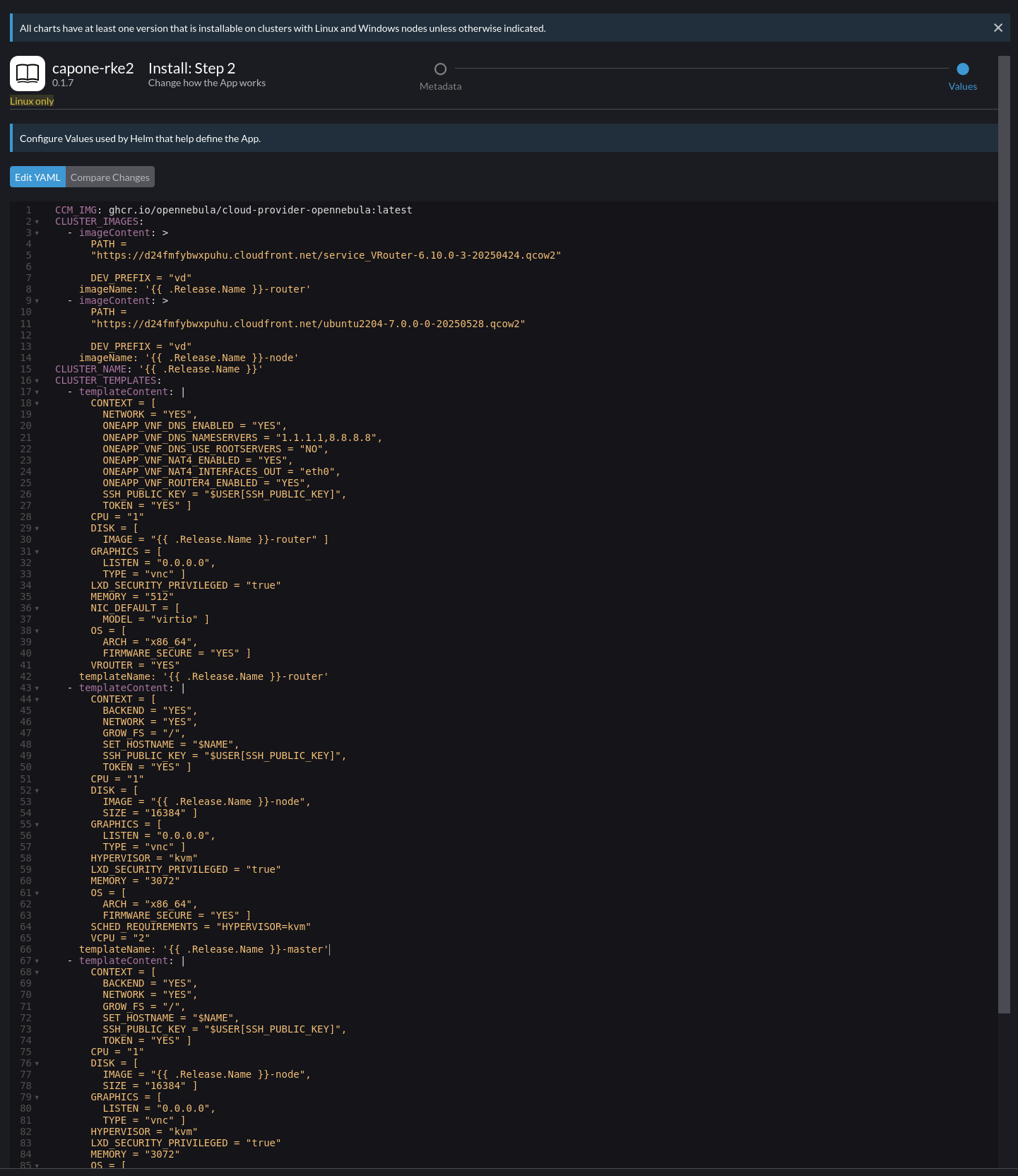

Click Next. The next screen shows the YAML configuration file. Here you will need to edit some parameters to adapt the deployment to your environment.

><

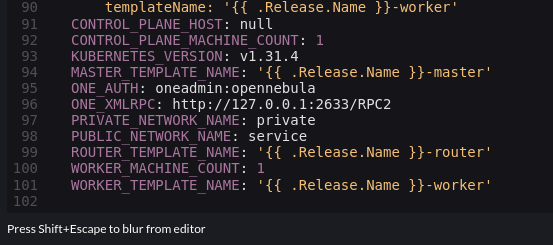

Scroll down to the end of the YAML file:

><

Here you will to ensure that the values of the following parameters match your installation:

  • ONE_AUTH: User credentials for the Front-end, in <user>:<password> format. By default, the user is oneadmin. The password is the same as for logging in to Sunstone. If you installed your Front-end using miniONE, the credentials were shown at the end of the installation output. (If you installed using miniONE and are unsure of the credentials, on the Front-end check the contents of /var/lib/one/.one/one_auth.)
  • ONE_XMLRPC: The XML RPC endpoint. This will be the base address of the public network that the VM is connected to. In this example, the network is vnet and the address is 172.16.100.1.
  • PRIVATE_NETWORK_NAME: Name for the private network created on the Front-end, in our case private.
  • PUBLIC_NETWORK_NAME: Name for the public network created on the Front-end, in our case vnet.

The parameters that were modified for this example are shown below:

ONE_AUTH: oneadmin:ZMCoOWUsBg
ONE_XMLRPC: http://172.16.100.1:2633/RPC2
PRIVATE_NETWORK_NAME: private
PUBLIC_NETWORK_NAME: vnet

After modifying the parameters, click the Install button on the bottom right corner.

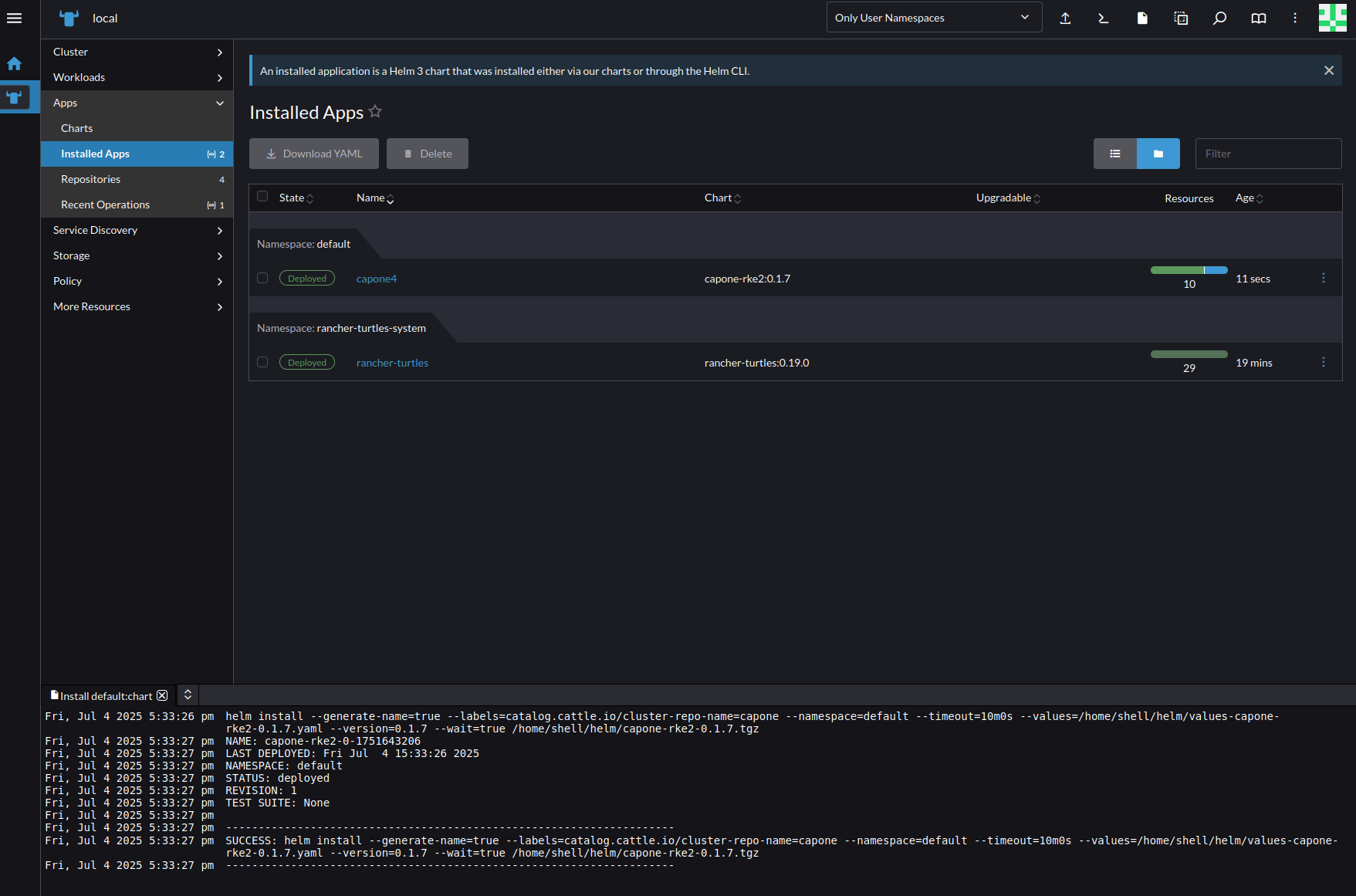

The cluster should install and deploy; this process can take a few minutes.

In Rancher’s left-hand navigation pane, go to the Management Cluster by clicking the Rancher icon rancher, then select Apps -> Installed Apps. The list of applications should show the name of the cluster you deployed (in this example, capone4), with status Deployed.

><

Step 6. Import the Cluster into Rancher

To manage the cluster in the Rancher UI, you must first import it into Rancher.

To import the cluster, in the left-hand pane go to Cluster Management by clicking the “farmhouse” icon icon near the bottom. Then, in the left-hand pane select Clusters, and in the Clusters screen select the capone4 cluster.

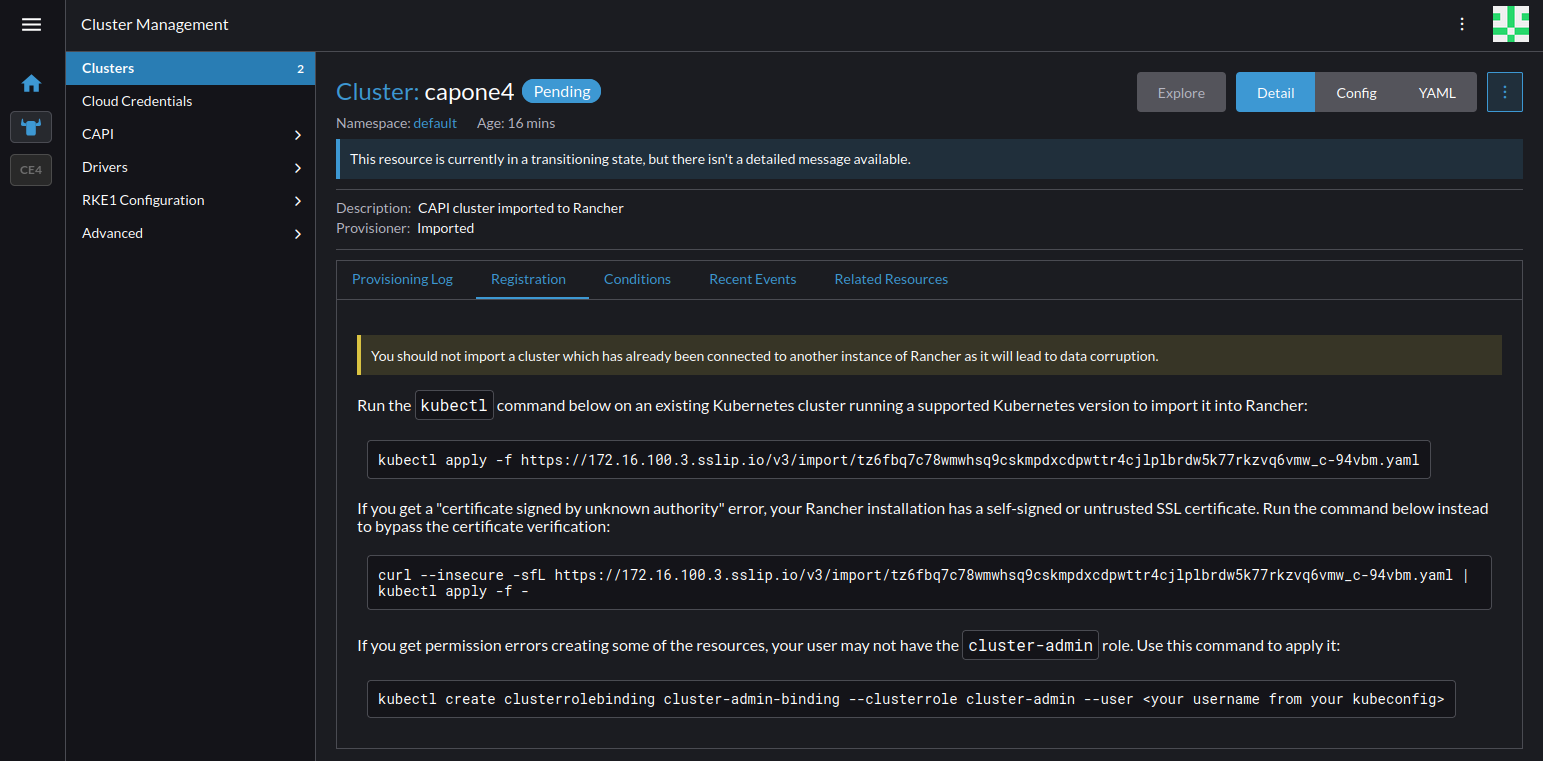

Rancher displays the screen for the cluster, shown below.

><

This screen shows three alternative commands that you can use for importing the cluster. In this case, since the Rancher installation uses a self-signed certificate, we will use the second command, with curl and kubectl:

curl --insecure -sfL https://172.16.100.3.sslip.io/v3/import/<import file>.yaml | kubectl apply -f -

Copy the command from the screen (you can click the command to copy it to the clipboard).

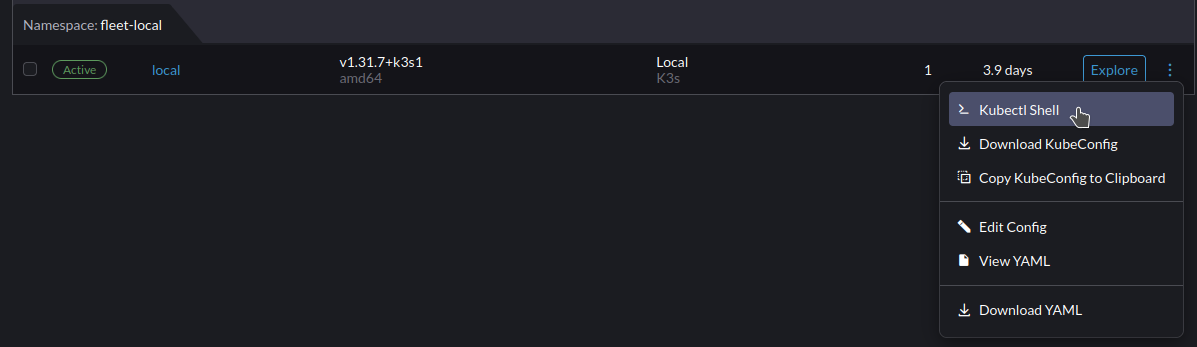

You will need to enter the command in the Kubectl Shell for the Management Cluster. To go to the Kubectl Shell for the Management Cluster, go to Cluster Management (via the “farmhouse” icon icon at bottom left). Then, in the Clusters screen select the local cluster, click the three-dot menu icon on the right, and select Kubectl Shell from the drop-down.

><

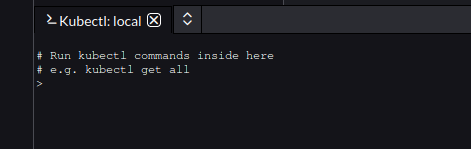

Rancher should display a tab on the bottom of the screen, with the Kubectl:local shell:

><

First, before running the import command you must retrieve the kubeconfig file for the workload cluster. For cluster capone4, run:

kubectl get secrets capone4-kubeconfig -o jsonpath="{.data.value}" | base64 -d > one-kubeconfig

This downloads the configuration for the cluster into the one-kubeconfig file.

Now it’s time to import the cluster into Rancher. Paste the command you copied above, for example:

curl --insecure -sfL https://172.16.100.3.sslip.io/v3/import/tz6fbq7c78wmwhsq9cskmpdxcdpwttr4cjlplbrdw5k77rkzvq6vmw_c-94vbm.yaml | kubectl apply --kubeconfig one-kubeconfig -f -

This will import the cluster into Rancher, which should take a few seconds.

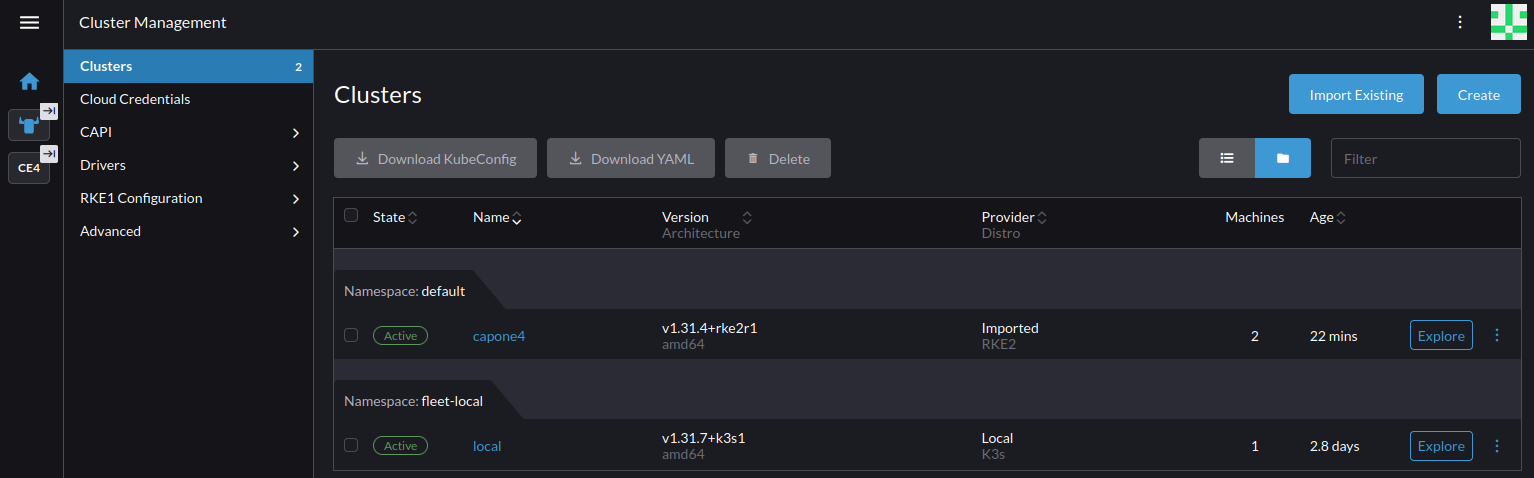

Once the cluster has been imported, it becomes fully accessible from the Rancher UI, where it is displayed alongside the K3s cluster.

><

You can now explore and use the cluster – for instance installing Helm charts, executing kubectl commands, and even upgrading the Kubernetes version of the cluster. In the next sections we will perform a few example operations.

Operating the Cluster

This section provides a brief overview of performing day-to-day operations on the workload cluster through the Rancher UI. Here we will:

  • Install Longhorn
  • Create a Persistent Volume Claim (PVC) on Longhorn
  • Deploy an Nginx instance that uses the Longhorn volume
  • Expose the Nginx instance

Installing Longhorn

In the capone4 cluster, select Cluster Management, then the capone4 cluster:

><

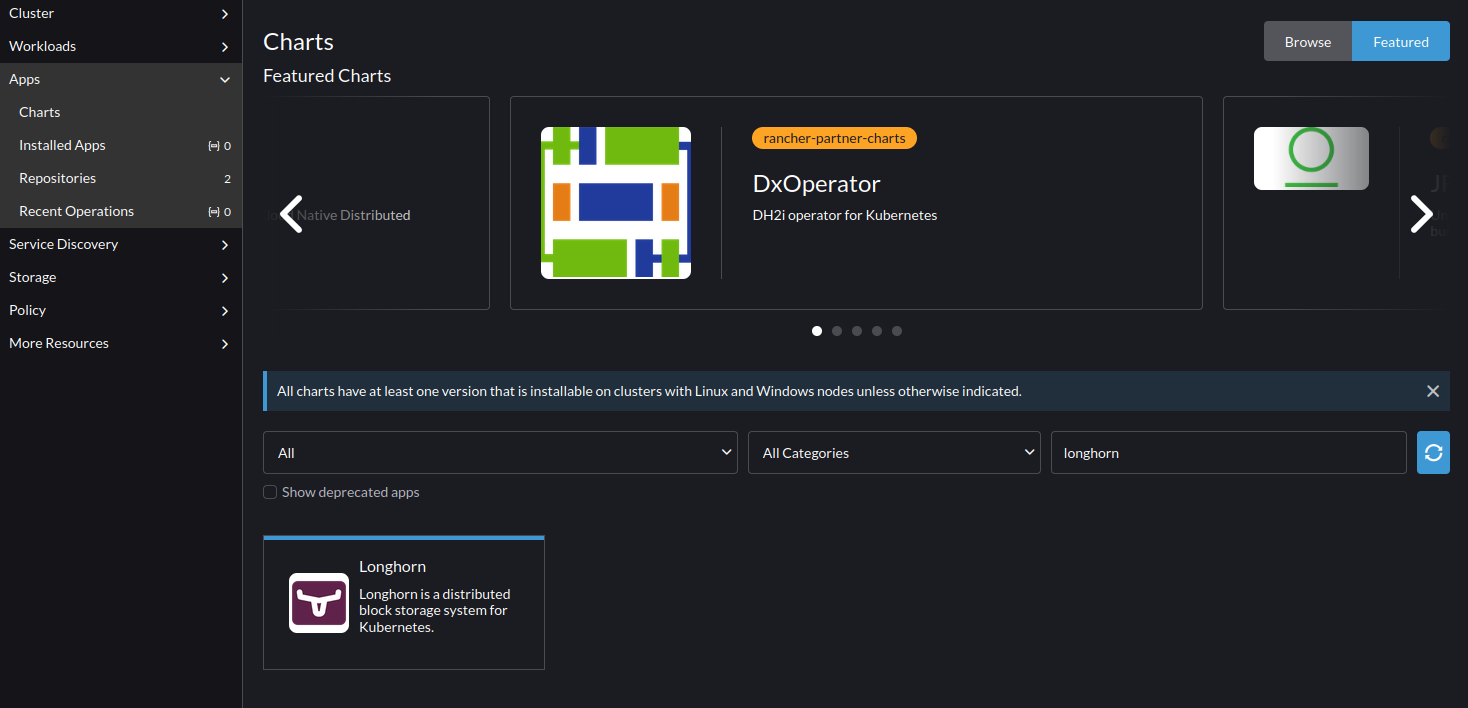

In the left-hand nav pane for the cluster, go to Apps -> Charts. In the Filter charts results input field, type longhorn.

><

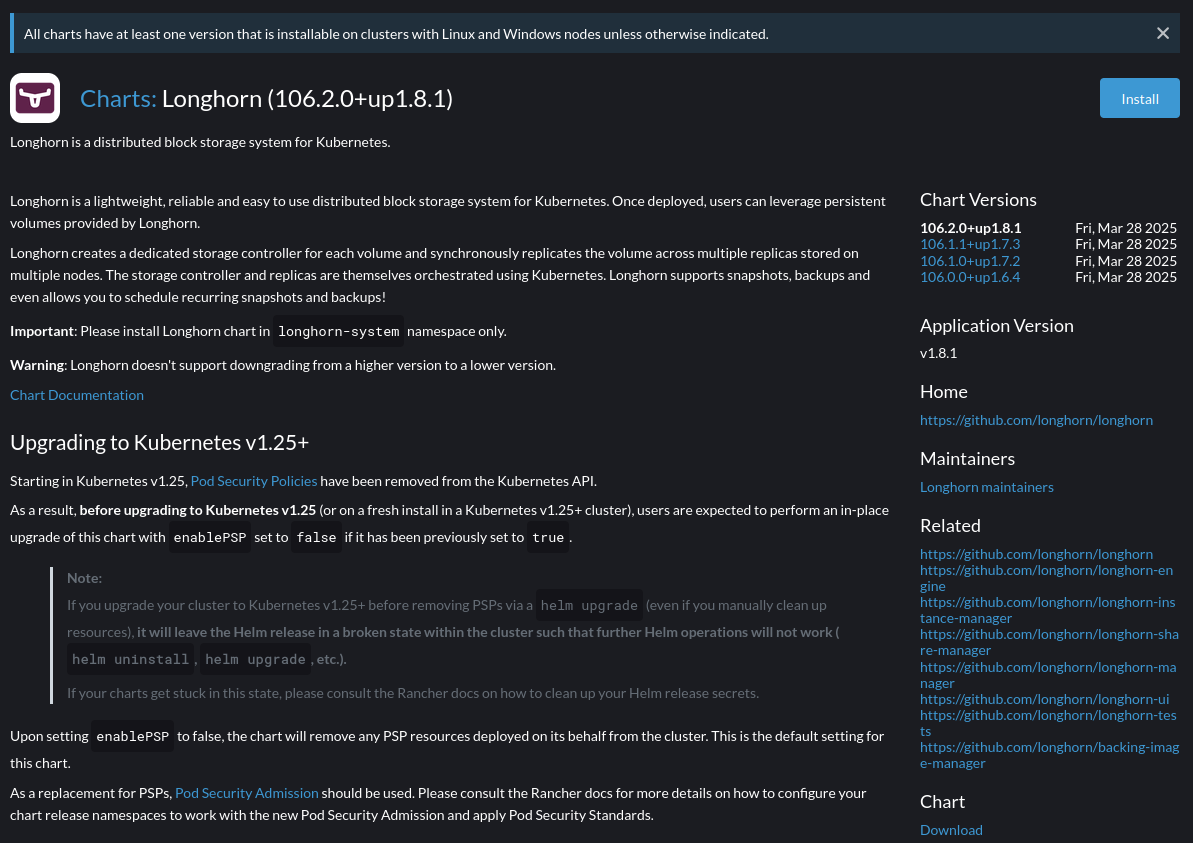

Select the Longhorn chart. Rancher should display the details screen for Longhorn:

><

Click the Install button at top right.

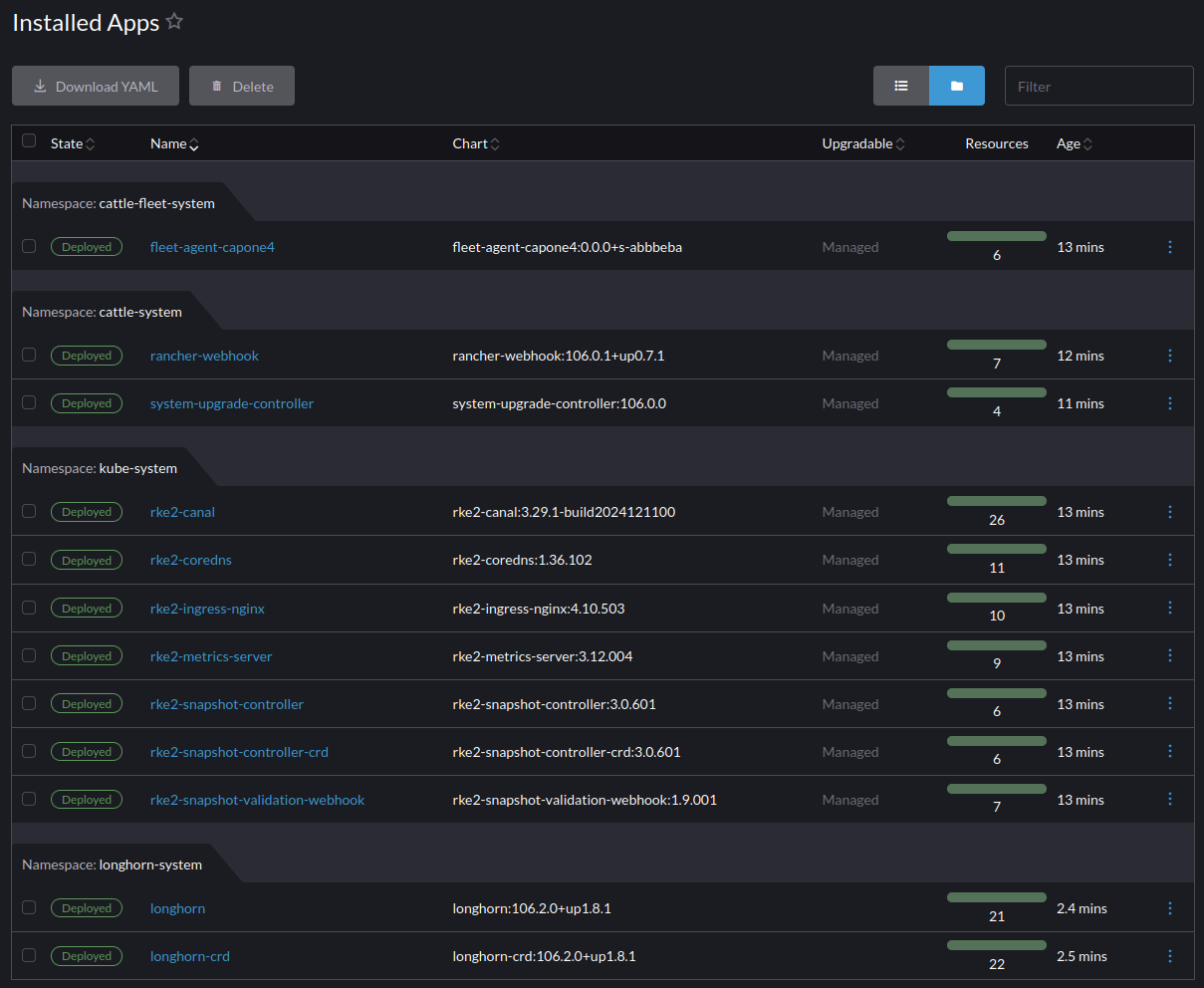

The Rancher UI will take you to the Installed Apps screen, where Longhorn should be displayed as “Deployed” (near the bottom of the image below).

><

Creating a Persistent Volume Claim on Longhorn

In this step we will create the Persistent Volume Claim that will be used by our Nginx deployment.

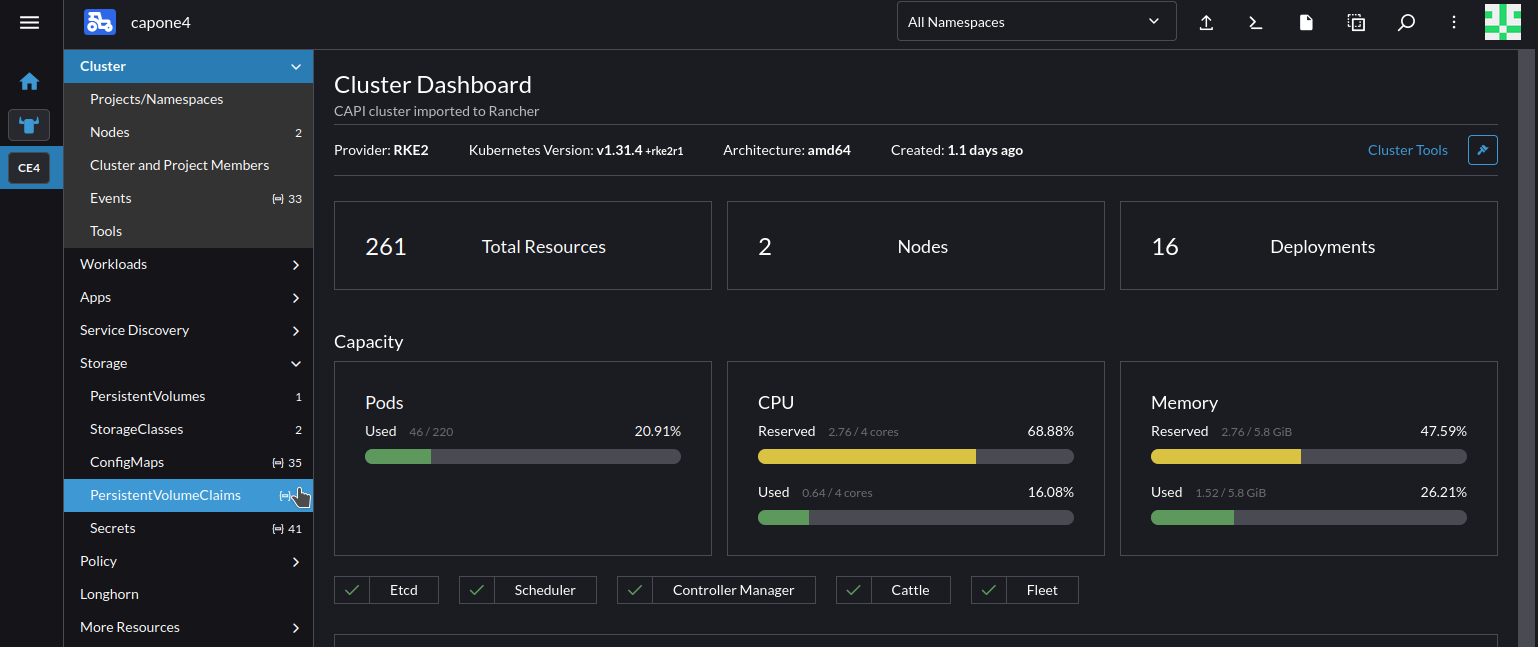

To create a PVC, in the left-hand nav pane for the cluster select Storage -> PersistentVolumeClaims.

><

Rancher will display the PersistentVolumeClaims screen. To create a new PVC, click Create.

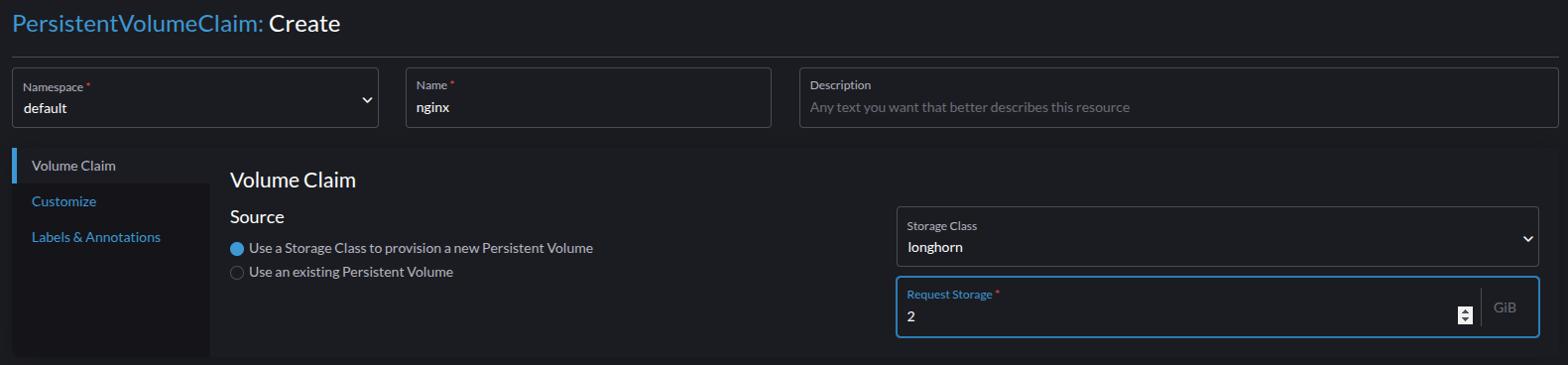

Fill in the required parameters for the PVC:

  • In the Name field, type nginx
  • In Source, leave at its default option, “Use a Storage Class to provision a new Persistent Volume”
  • In the Storage Class drop-down, select longhorn
  • In Request Storage, you can modify the default value of 10 GiB to your needs. In this example we will set it to 2 GiB

><

Click Create.

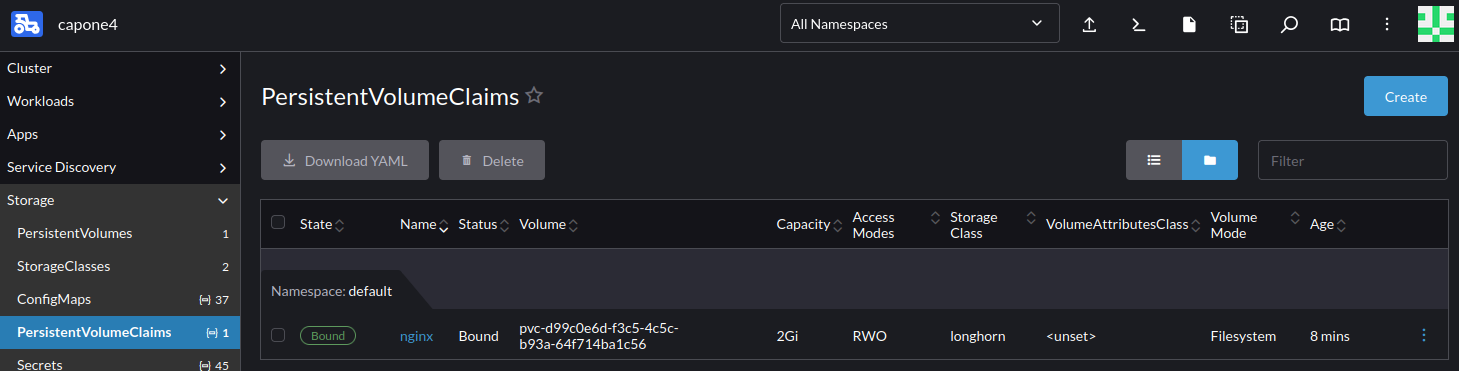

The PVC should now be listed in the Storage -> PersistentVolumeClaims tab for the cluster, shown below.

><

Creating an Nginx Deployment

We will create the Nginx deployment by importing the deployment’s YAML definition, to illustrate Rancher’s YAML import feature.

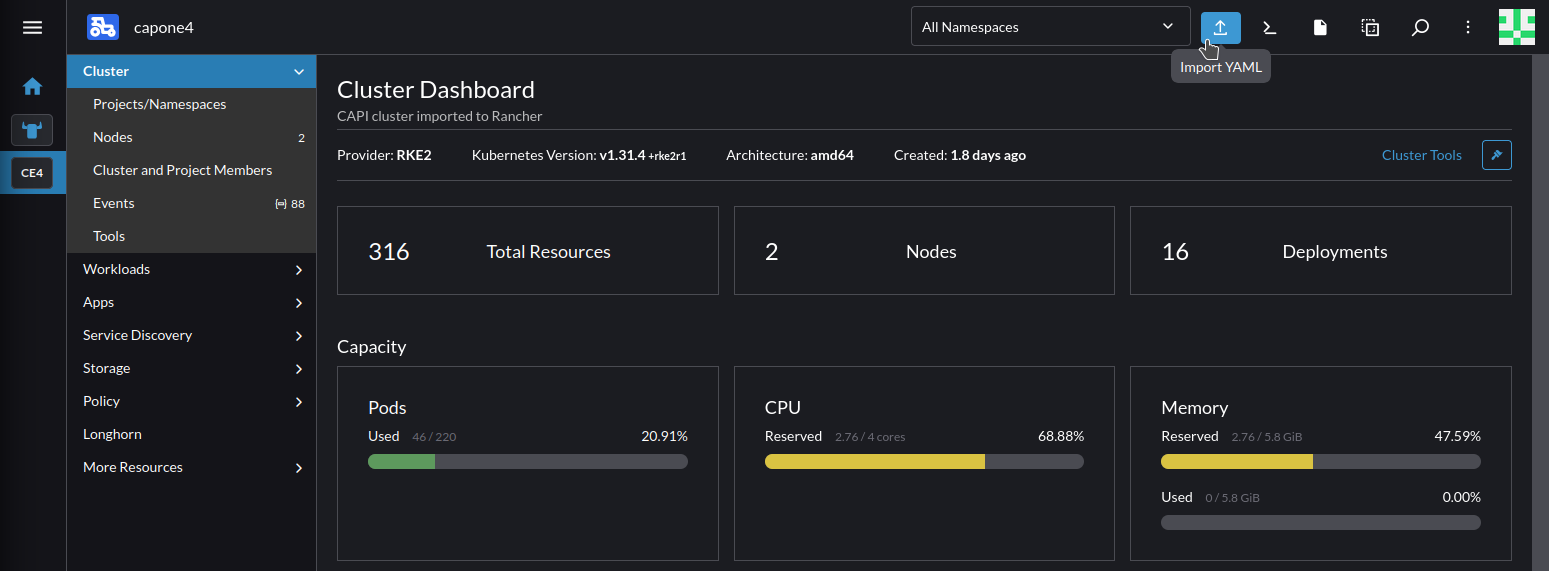

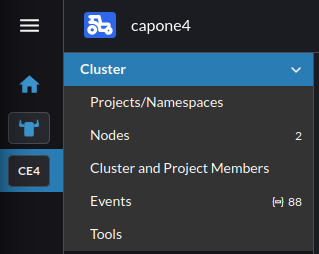

Go to the Cluster Dashboard (click the icon for the cluster on the left, then in the cluster nav pane click Cluster). Then, in the top bar click the Import YAML icon Import YAML:

><

Rancher displays the Import YAML screen. To deploy Nginx, you can copy and paste the following definition:

---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: http
        image: nginx:alpine
        imagePullPolicy: IfNotPresent
        ports:
        - name: http
          containerPort: 80
        volumeMounts:
        - mountPath: "/persistent/"
          name: nginx
      volumes:
      - name: nginx
        persistentVolumeClaim:
          claimName: nginx

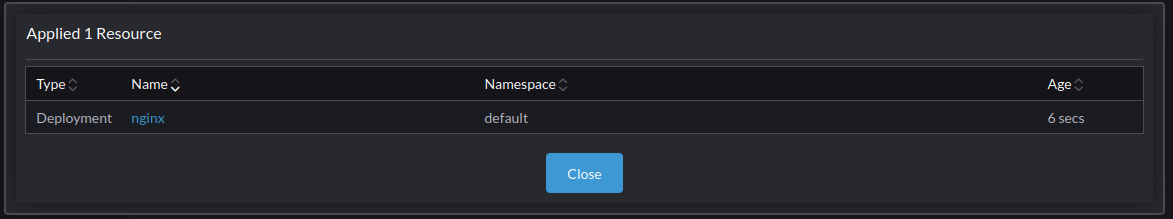

Paste the definition into the input box, then click Import. Rancher will create a simple Nginx deployment that mounts the PVC we previously created.

><

To see the Nginx deployment, in the menu for the cluster select Deployments, and in the default namespace look for nginx.

><

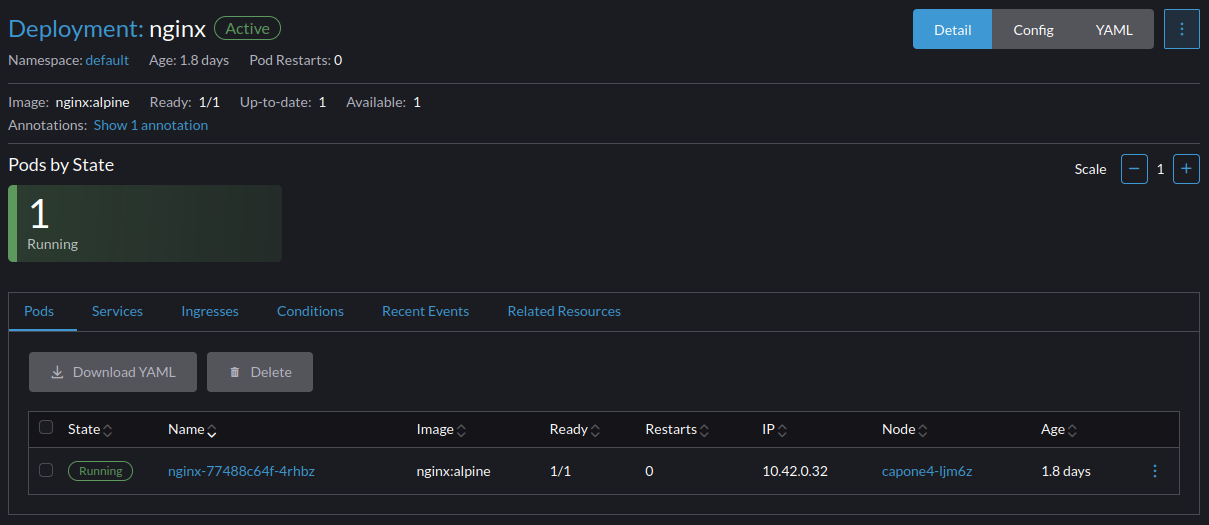

Clicking nginx displays additional information for the deployment, including its IP, in this case 10.42.0.32:

><

Checking the Nginx Deployment from OpenNebula (Optional)

This optional step shows how you can check the Nginx deployment without logging into Rancher.

The node where Nginx is running is the Virtual Machine created by OpenNebula as part of the workload cluster, which you can see in Sunstone (Instances -> VMs), or by running onevm list on the Front-end node:

oneadmin@frontend:~$ onevm list
  ID USER     GROUP    NAME                                         STAT  CPU     MEM HOST                                TIME
   4 oneadmin oneadmin capone4-ljm6z                                runn    1      3G localhost                       0d 00h01
   3 oneadmin oneadmin vr-capone4-cp-0                              runn    1    512M localhost                       0d 00h01
   2 oneadmin oneadmin Capi-2                                       runn    2      8G localhost                       2d 19h37
   0 oneadmin oneadmin Alpine Linux 3.20-0                          runn    1    256M localhost                       2d 20h03

To quickly check that the Nginx deployment is working, you can log in to the VM from the Front-end with onevm ssh <VM ID> (in this case 4):

onevm ssh 4

And run curl against the deployment’s IP (in this case 10.42.0.32):

root@capone4-ljm6z:/var/log# curl 10.42.0.32
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>
root@capone4-ljm6z:/var/log#

At this point we know that the Nginx deployment is working. In the next step we will expose it and check the result on a web browser.

Exposing the Nginx Deployment

For this tutorial, we’ll expose the Nginx deployment by creating a NodePort service.

To create the service, in Rancher click the Import YAML icon Import YAML in the top bar. Then, copy-paste the below definition:

apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  selector:
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
      nodePort: 30080
  type: NodePort

This will expose port 80 of the pod running the nginx service on port 30080 of the master node in the capone4 cluster.

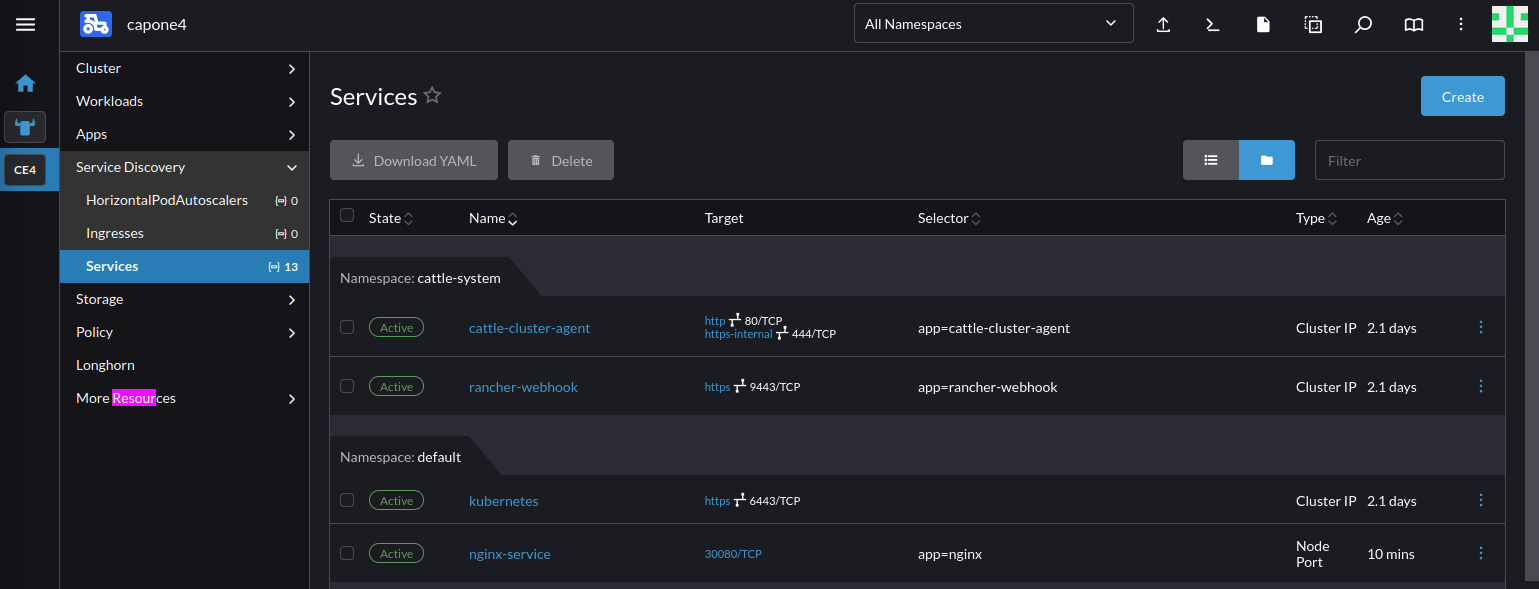

After clicking Import, you should see nginx-service in the cluster’s Services tab:

><

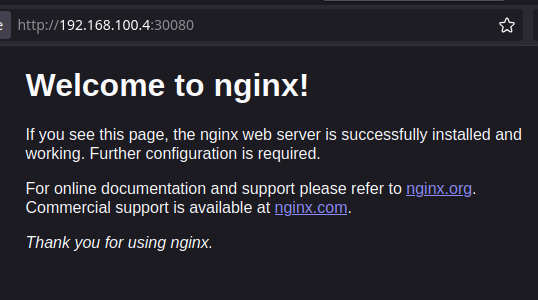

Now your Nginx deployment should be visible on the external IP of the node – which in this example setup is 192.168.100.4 – on port 30080:

><

Additional Tasks

Adding Worker Nodes to the Cluster

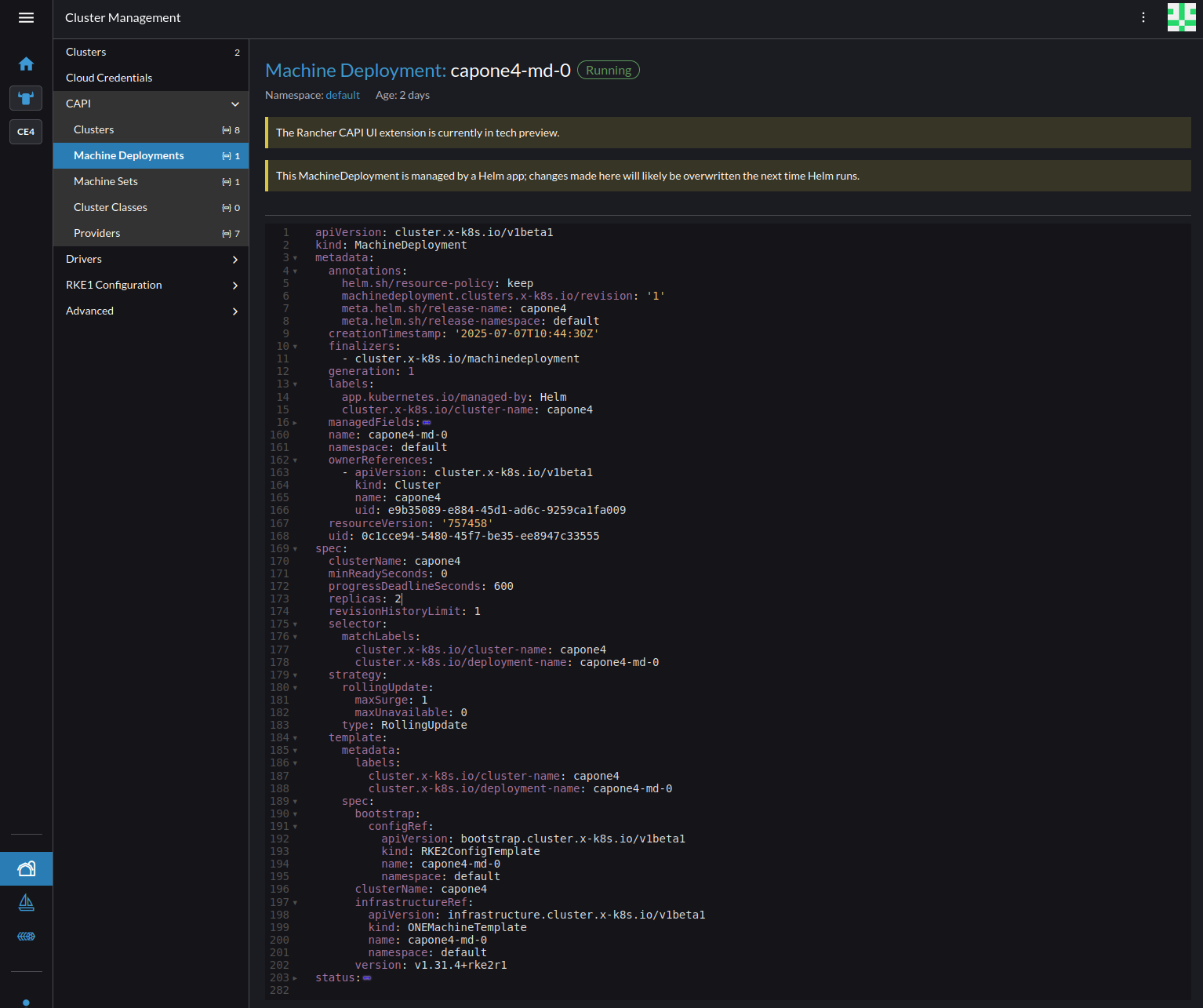

To add a Worker Node to the cluster, use CAPI to create a replica of the cluster.

In Rancher, go to Cluster Management, then in the left-hand nav pane CAPI -> Machine Deployments. Rancher should display the current deployment of the capone4 cluster. Clicking the deployment name shows the YAML file for the deployment. To add a replica, click the three-dot menu icon at top right, then select Edit YAML. Find the string replicas: 1 and change the number to the desired number of replicas.

><

Upgrading the Workload Cluster

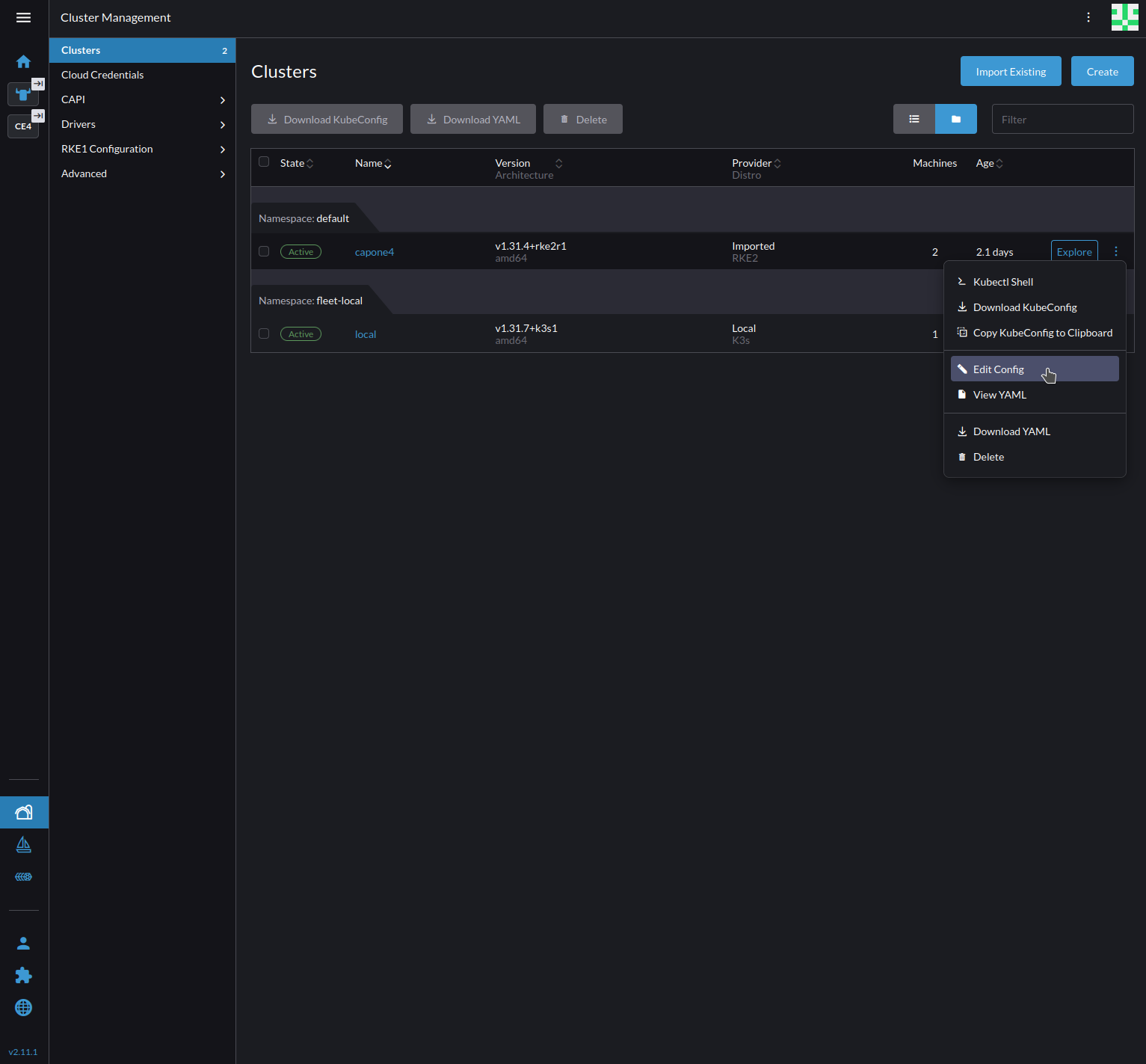

To upgrade the cluster from within Rancher, select Cluster Management at bottom left, then Clusters on the left-hand pane. Click the three-dot menu icon for the cluster, then select Edit Config from the drop-down.

><

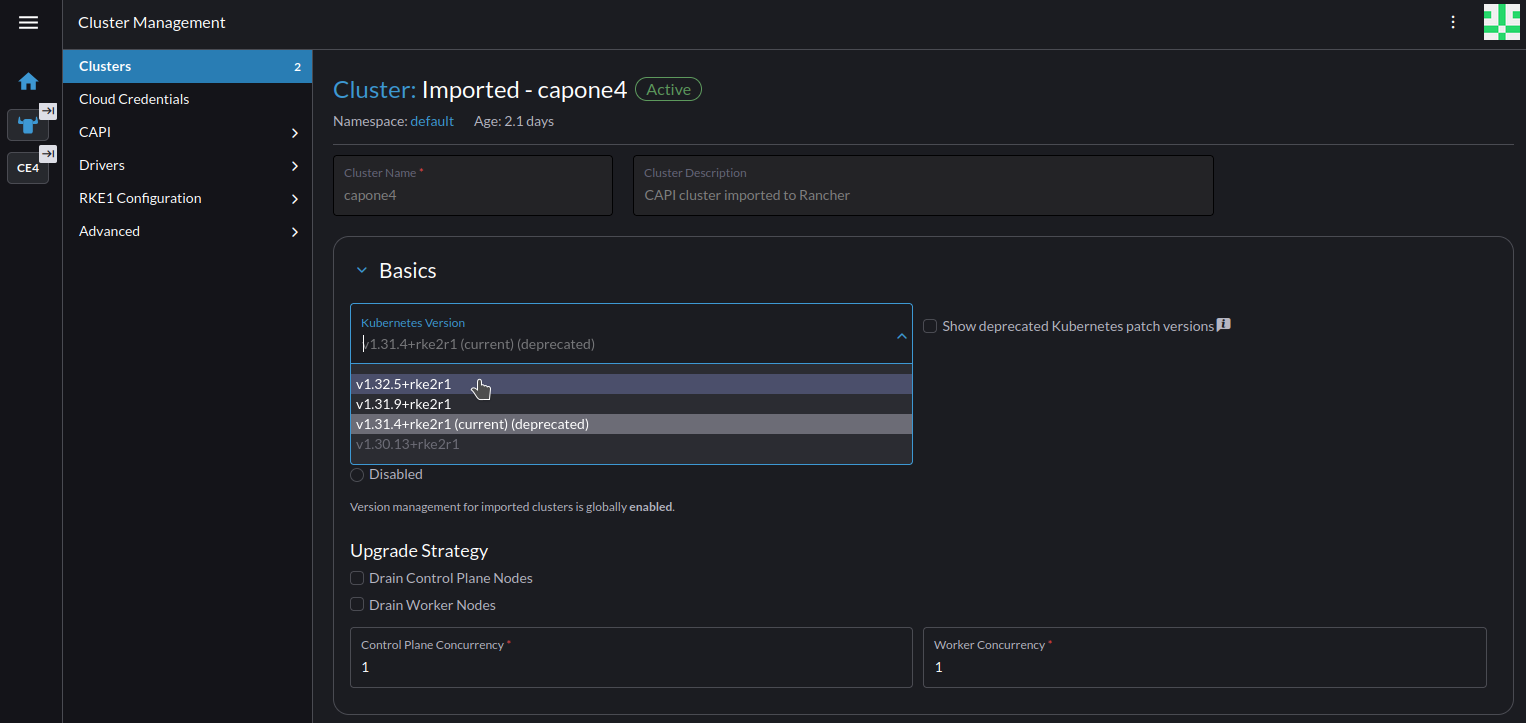

Rancher should display the configuration screen for the cluster. In the Basics section, select the desired version for upgrading.

><

Rancher should display the Clusters screen, where the cluster should display status Upgrading. The upgrade can take several minutes. To see the upgrade process, click the Explore button to the right of the cluster – this takes you to the Cluster Dashboard where upgrade messages are displayed.

When the upgrade is finished, the Clusters screen should display the cluster with the new version.

><

Congratulations! You have successfully deployed a K3s cluster with the Rancher management platform as well as a production-grade workload cluster where you’ve created, exposed and tested a deployment – all with minimal configuration and using graphical interfaces.

Next Steps

This tutorial marks the end of the Quick Start guide.

To learn about OpenNebula in depth, the next sections of the documentation include all of the information necessary for configuration and administration, as well as software life cycle, releases and installation details.

If you are interested in installing OpenNebula by following further tutorials, you can head over to Automatic Installation with OneDeploy to automatically install a production-ready OpenNebula cloud.
