Security Groups

Security Groups define firewall rules to be applied to Virtual Machines.

Warning

Security groups are not supported for OpenvSwitch.

Defining a Security Group

A Security Group is composed of several Rules. Each Rule is defined with the following attributes:

Attribute	Type	Meaning	Values
PROTOCOL	Mandatory	Defines the protocol of the rule	ALL, TCP, UDP, ICMP, IPSEC
RULE_TYPE	Mandatory	Defines the traffic direction	INBOUND, OUTBOUND
IP	Optional	If the rule only applies to a specific net. This is the first IP of the consecutive set of IPs. Must be used with SIZE.	A valid IP
SIZE	Optional	If the rule only applies to a net. The number of total consecutive IPs of the network. Use always with IP.	An integer >= 1
RANGE	Optional	A Port Range to filter specific ports. Only works with TCP and UDP.	(iptables syntax) multiple ports or port ranges are separated using a comma, and a port range is specified using a colon. Example: `22,53,80:90,110,1024:65535`
ICMP_TYPE	Optional	Specific ICMP type of the rule. If a type has multiple codes, it includes all the codes within. This can only be used with ICMP. If omitted the rule will affect the whole ICMP protocol.	0,3,4,5,8,9,10,11,12,13,14,17,18
NETWORK_ID	Optional	Specify a network ID to which this Security Group will apply	A valid networkd ID

Note

When using IPSEC value for PROTOCOL, rules for the Encapsulating Security Payload (ESP) protocol of IPSec are set.

To create a Security Group, use the Sunstone UI Interface or create a template file following this example:

NAME = test

RULE = [
    PROTOCOL = TCP,
    RULE_TYPE = inbound,
    RANGE = 1000:2000
]

RULE = [
    PROTOCOL= TCP,
    RULE_TYPE = outbound,
    RANGE = 1000:2000
]

RULE = [
    PROTOCOL = ICMP,
    RULE_TYPE = inbound,
    NETWORK_ID = 0
]

$ onesecgroup create ./sg.txt
ID: 102

Tip

This guide focuses on the CLI command onesecgroup but you can also manage Security Groups using the Sunstone GUI interface. Select the Security Group tab to create and manage groups in a user-friendly way.

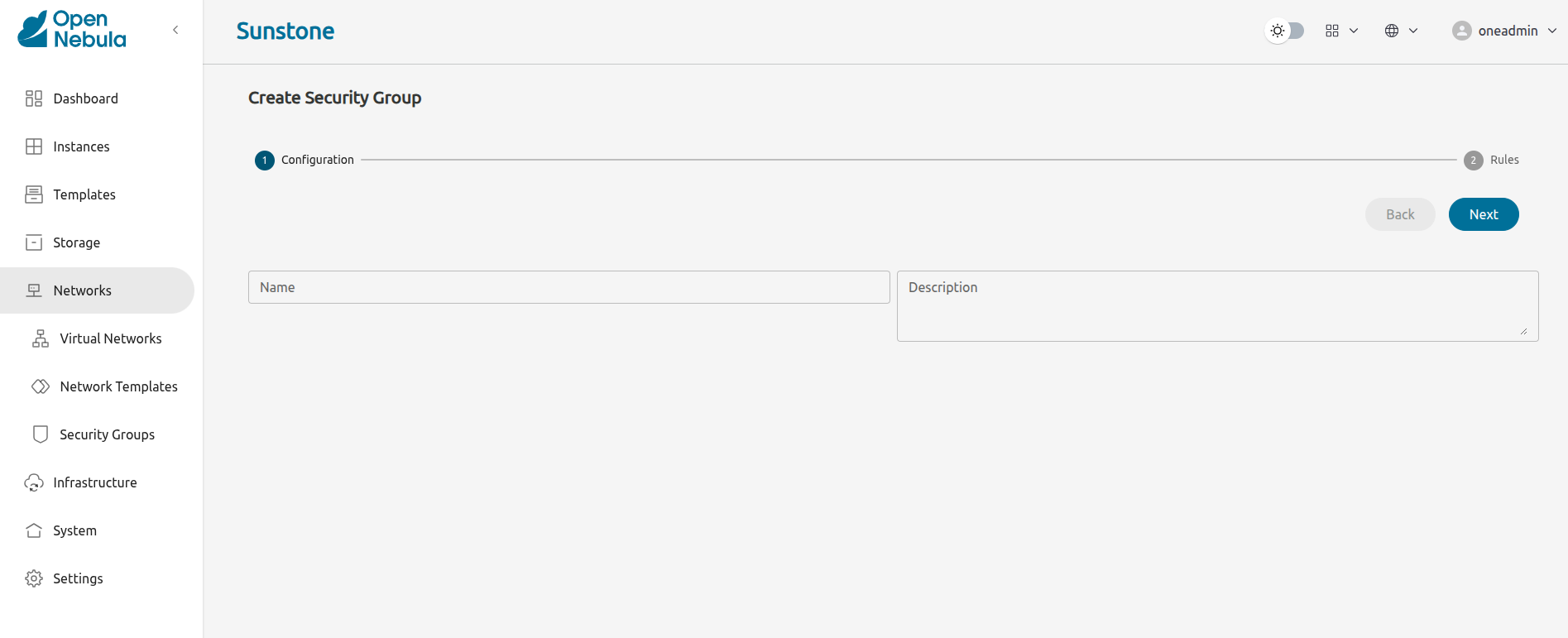

sg_wizard_create

Using a Security Group

To apply a Security Group to your Virtual Machines, you can assign them to the Virtual Networks. Either use the Sunstone wizard, or set the SECURITY_GROUPS attribute:

$ onevnet update 0

SECURITY_GROUPS = "100, 102, 110"

When a Virtual Machine is instantiated, the rules are copied to the VM resource and can be seen in the CLI and Sunstone.

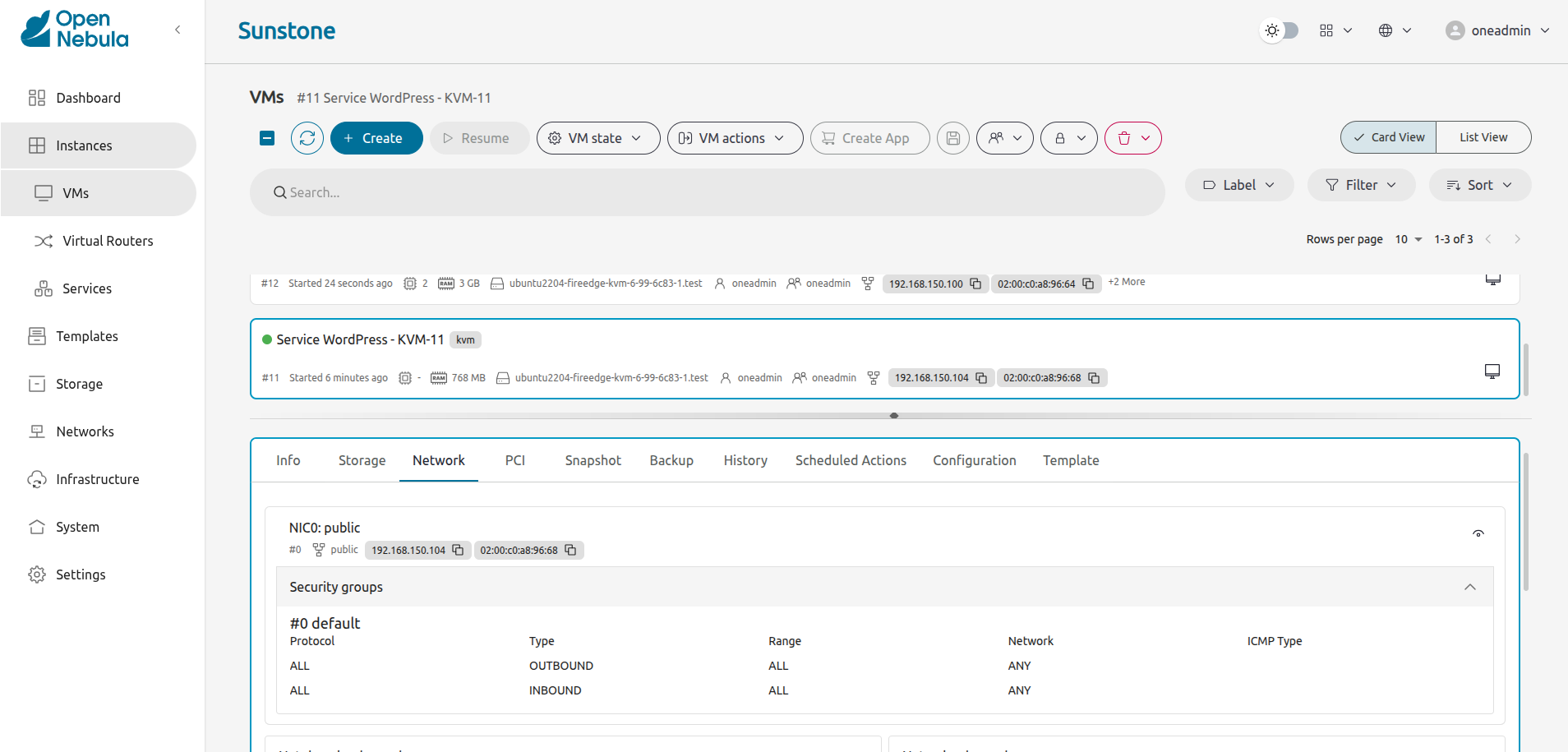

sg_vm_view

Advanced Usage

To accommodate more complex scenarios, you can also set Security Groups to each Address Range of a Virtual Network:

$ onevnet updatear 0 1

SECURITY_GROUPS = "100, 102, 110"

Moreover, each Virtual Machine Template NIC can define a list of Security Groups:

NIC = [
  NETWORK = "private-net",
  NETWORK_UNAME = "oneadmin",
  SECURITY_GROUPS = "103, 125"
]

If the Address Range or the Template NIC defines SECURITY_GROUPS, the IDs will be added to the ones defined in the Virtual Network. All the Security Group IDs are combined and applied to the Virtual Machine instance.

The Default Security Group

There is a special Security Group: default (ID 0). This security group allows all OUTBOUND traffic and all INBOUND traffic.

Whenever a network is created, the default Security Group is added to the network.

This means that you must edit every newly created network and remove the default Security Group from it. Otherwise, even if you add other Security Groups, the default one will allow all traffic and therefore override the rest of the Security Groups.

Note

You may want to remove the rules included in the default security groups. This way, users are forced to create security groups (otherwise they will not have connectivity to and from the VMs) which avoid some security problems.

Security Group Update

Security Groups can be updated to edit or add new rules. These changes are propagated to all VMs in the security group, so it may take some time till the changes are applied. The particular status of a VM can be checked in the Security Group properties, where outdated and up-to-date VMs are listed.

If the update process needs to be reset, i.e., reapply the rules, you can use the onesecgroup commit command.
