Group Admin View

The role of a Group Admin is to manage all the virtual resources of the Group, including the creation of new users. It’s like a limited version of the cloud administrator view. You can read more about OpenNebula’s approach to Groups and VDC’s from the perspective of different user roles in Cloud Access Models and Roles.

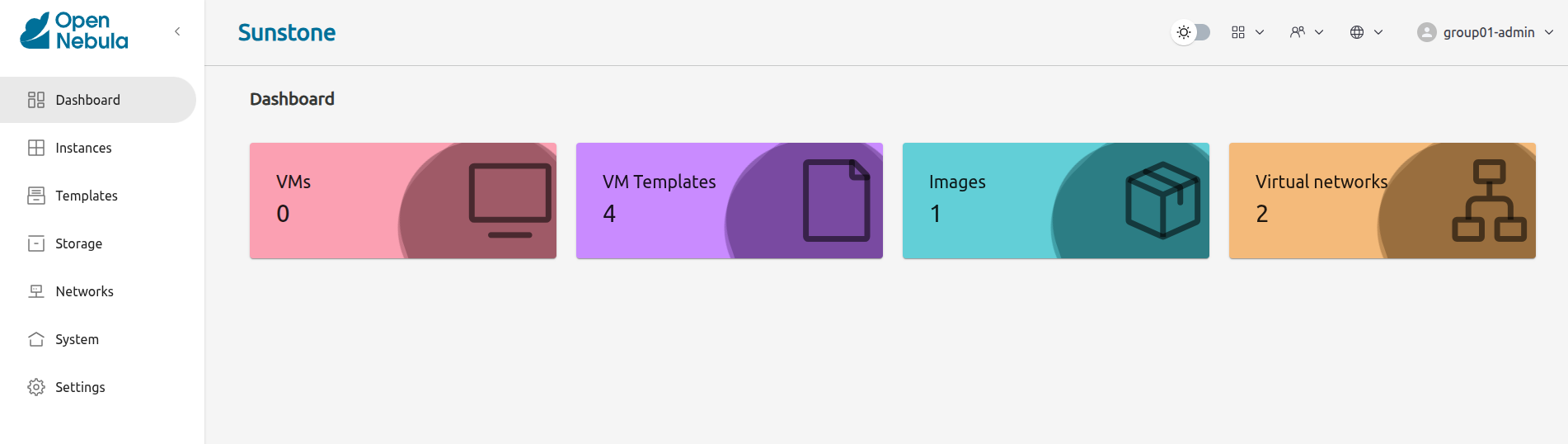

groupadmin_dash

Manage Users

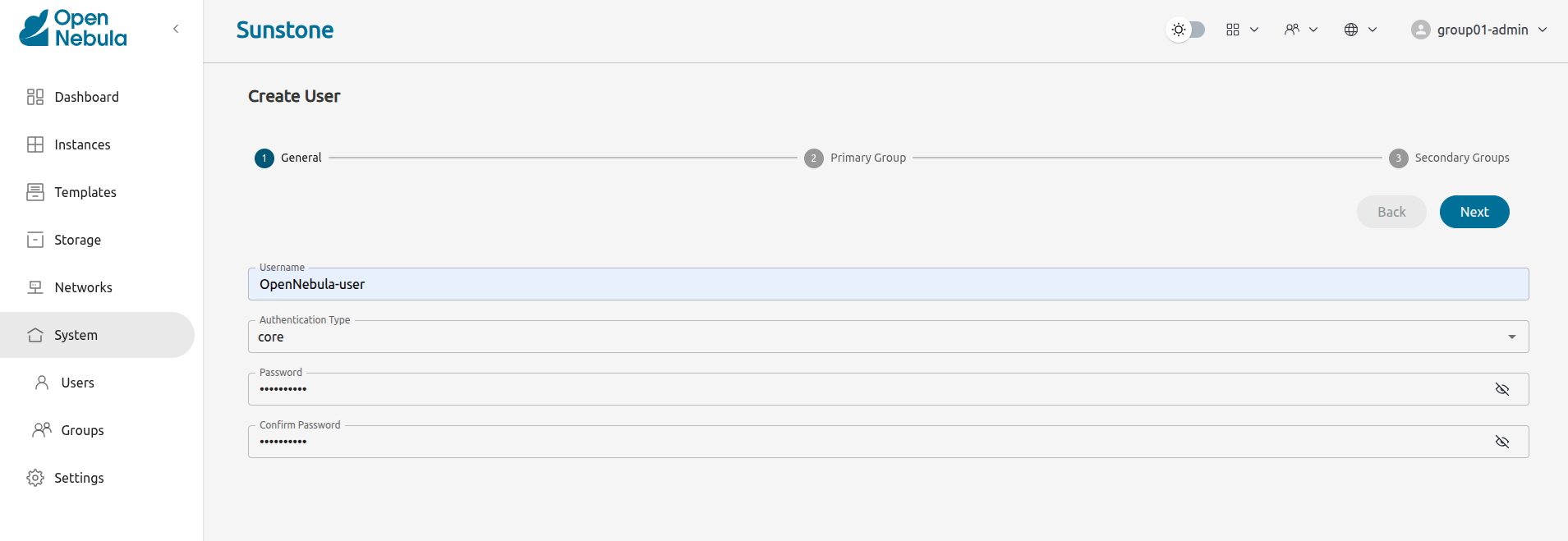

The Group Admin can create new user accounts that will belong to the same Group.

groupadmin_create_user

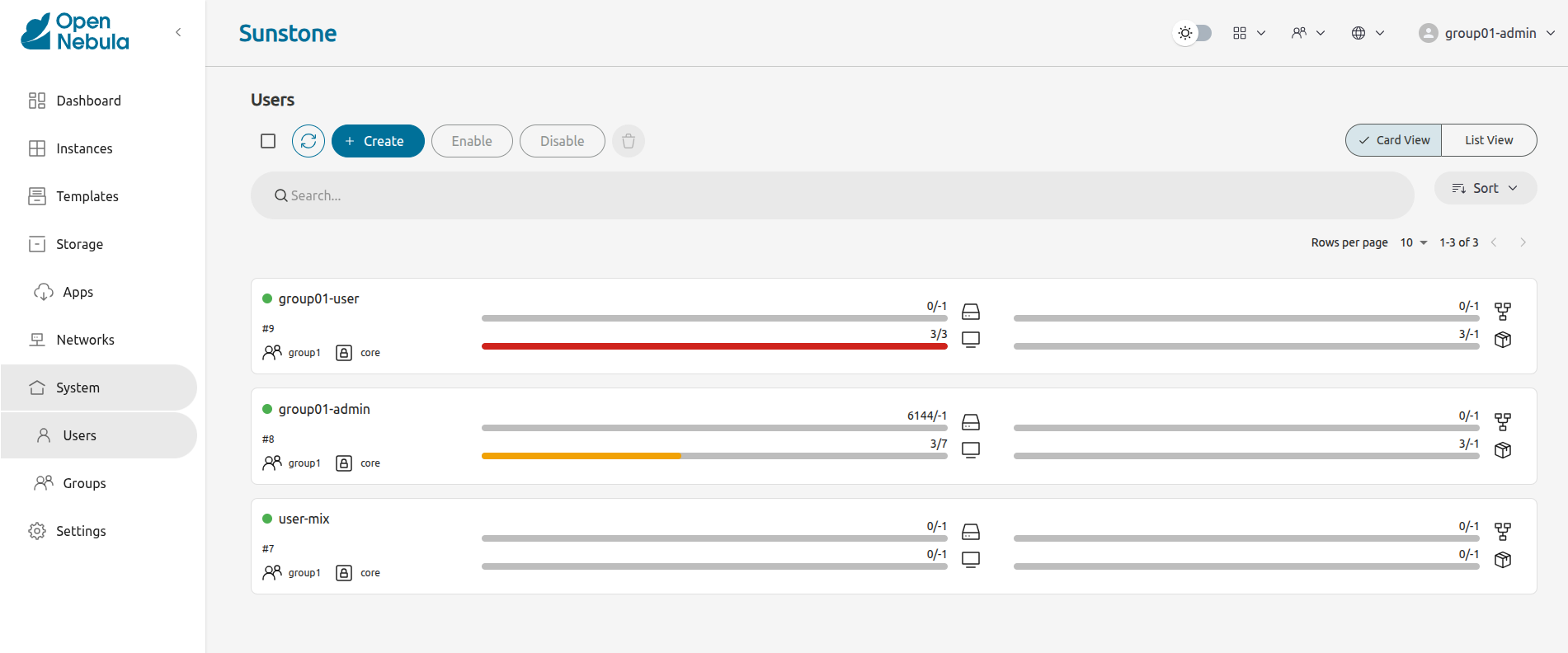

They can also see the current resource usage of all the Group users.

groupadmin_users

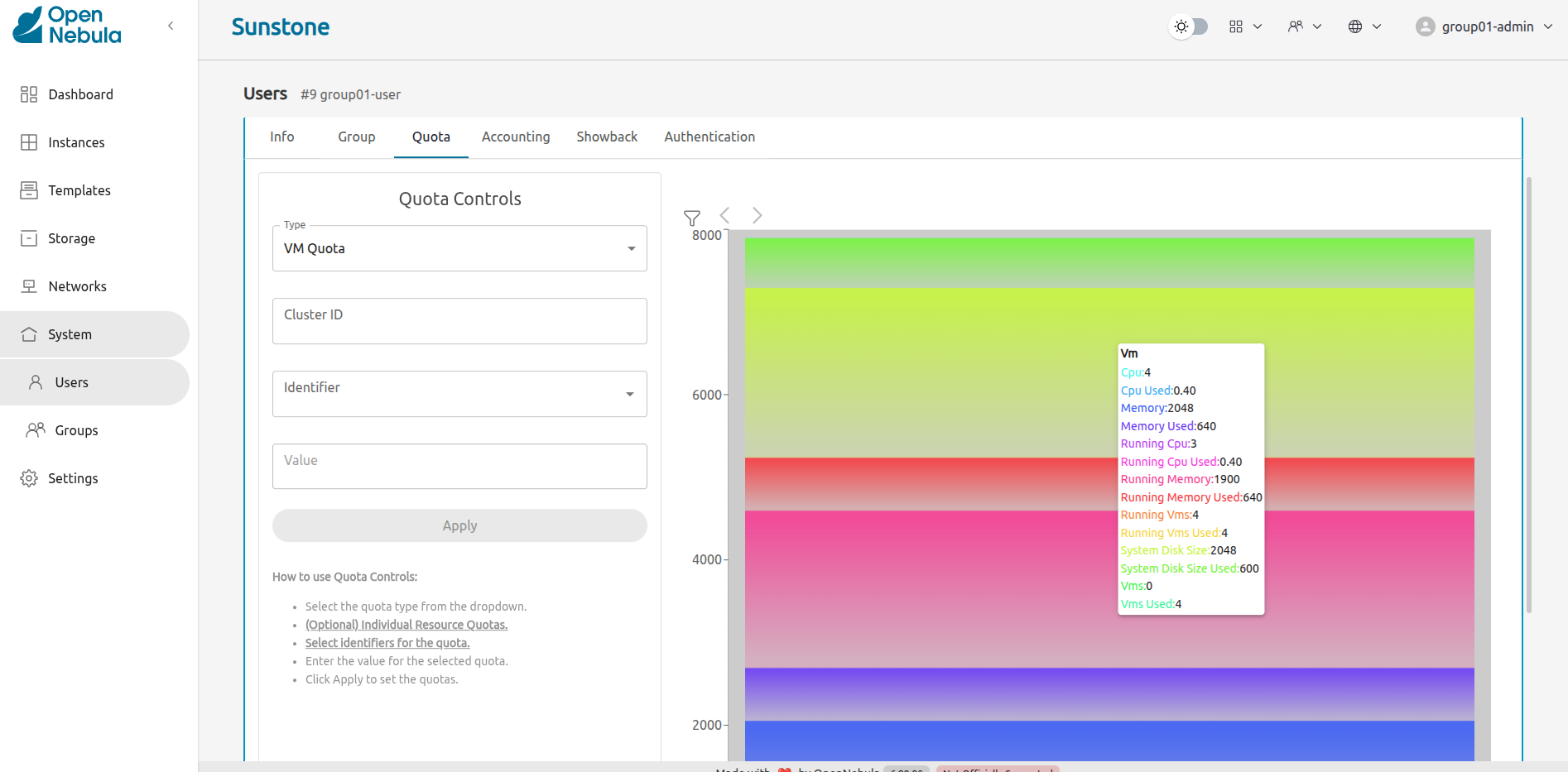

And set quota limits for each one of them. Read the Chapter about how to Usage Quotas for more information.

groupadmin_edit_quota

Manage Resources

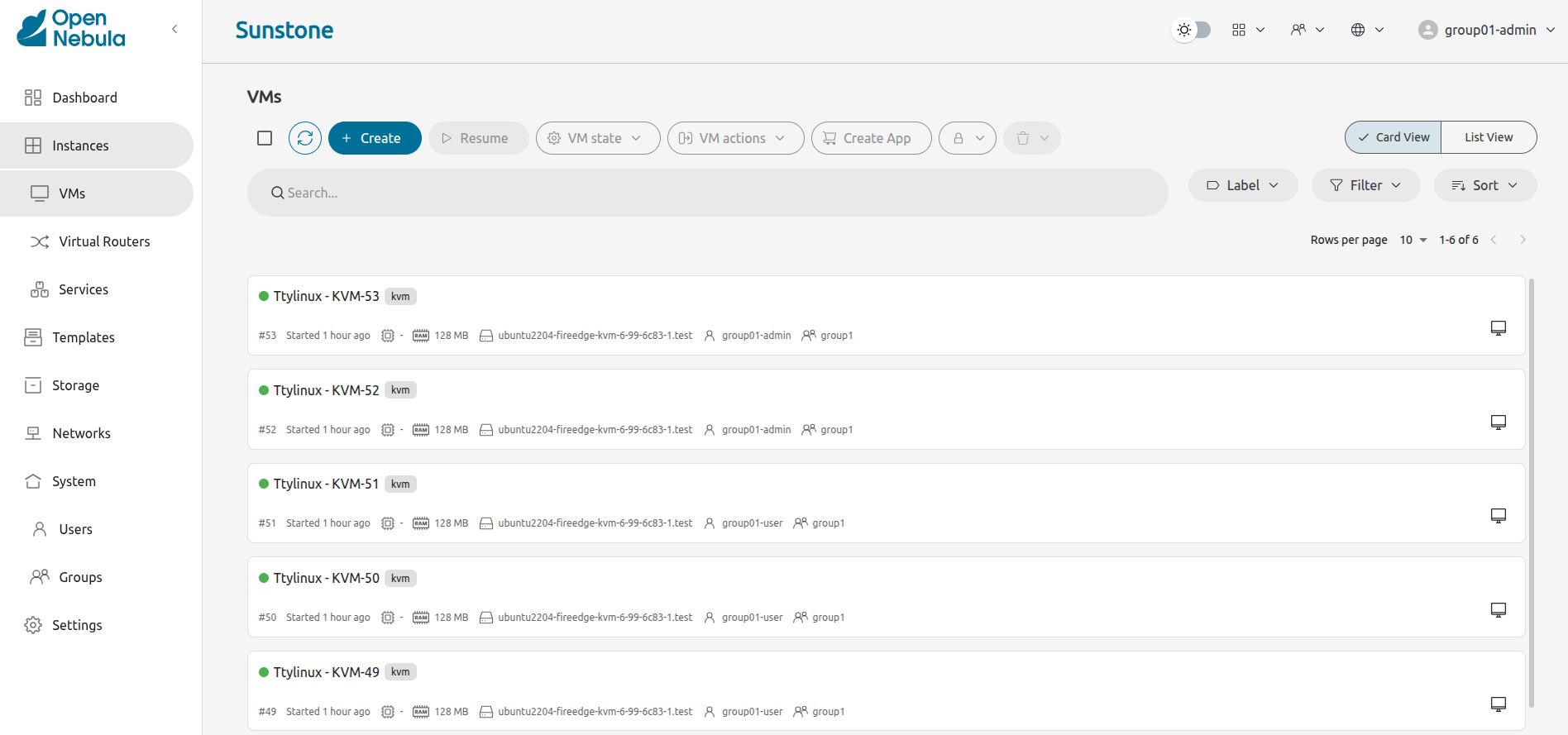

The Group Admin can manage the Services, VMs, and Templates of other users in the Group.

groupadmin_list_vms

Create Resources

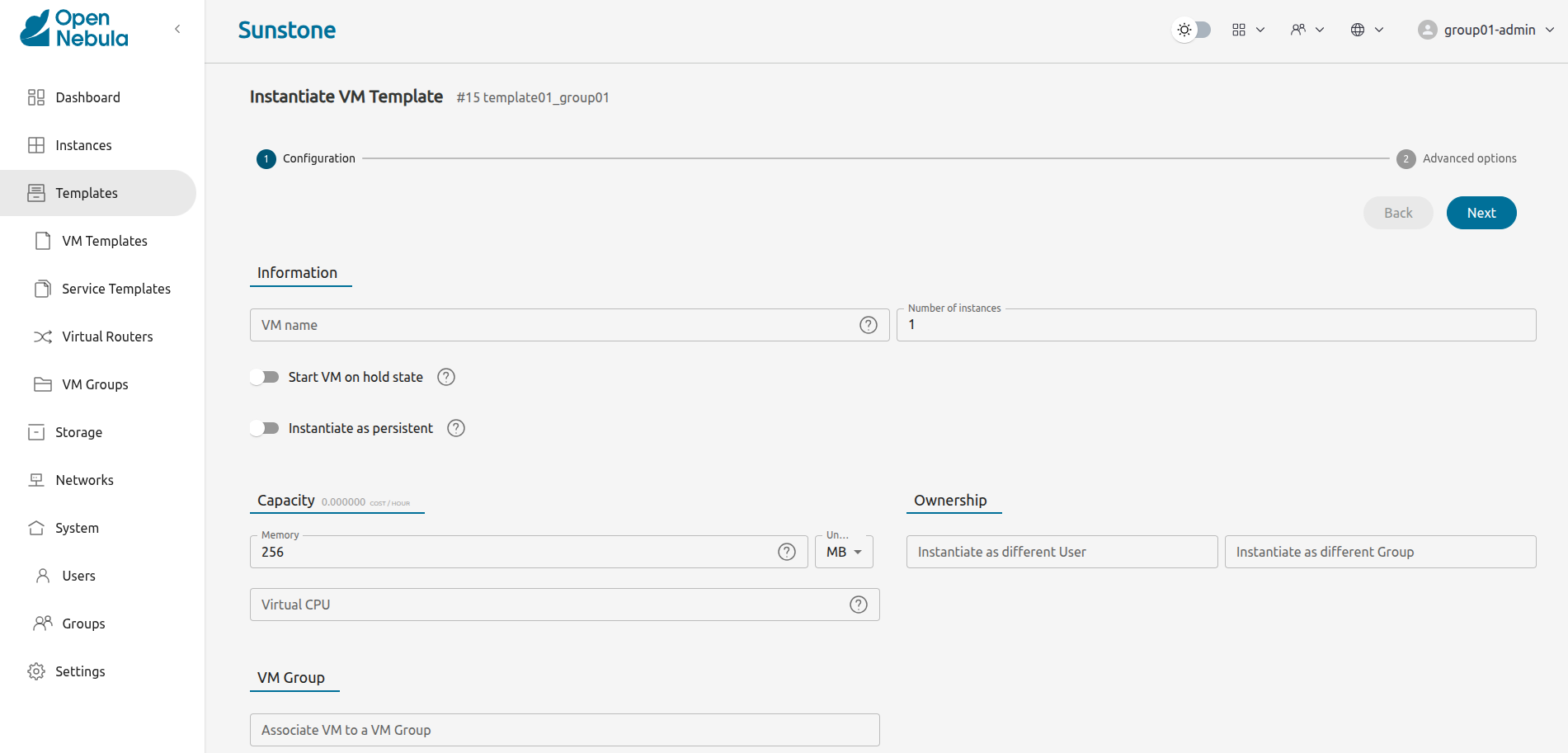

The Group Admin can create new resources in the same way as a regular user does from the Cloud view. The creation wizard for the VMs and Services are similar in the groupadmin and cloud views.

groupadmin_instantiate

Prepare Resources for Other Users

Any user of the Cloud View or Group Admin View can save the changes made to a VM back to a new Template and use this Template to instantiate new VMs later. See the VM persistency options in the Cloud View for more information.

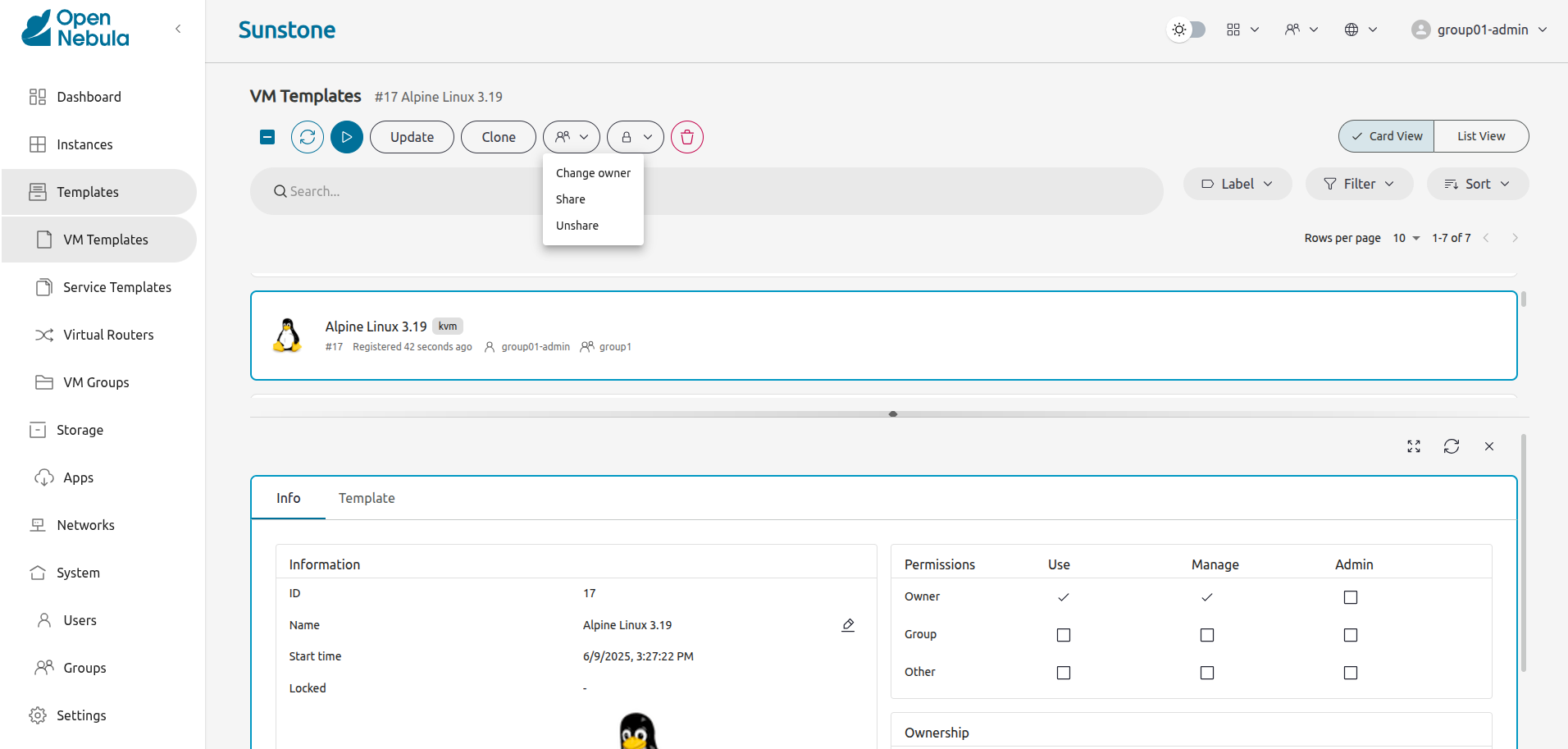

The Group Admin can also share his own Saved Templates with the rest of the Group.

For example, the Group Admin can instantiate a clean VM prepared by the cloud administrator, install software needed by other users in his Group, save it in a new Template, and make it available for the rest of the Group.

groupadmin_share_template

These shared templates will be listed to all the Group users in the VM creation wizard, marked as group. A Saved Template created by a regular user is only available for that user and is marked as mine.

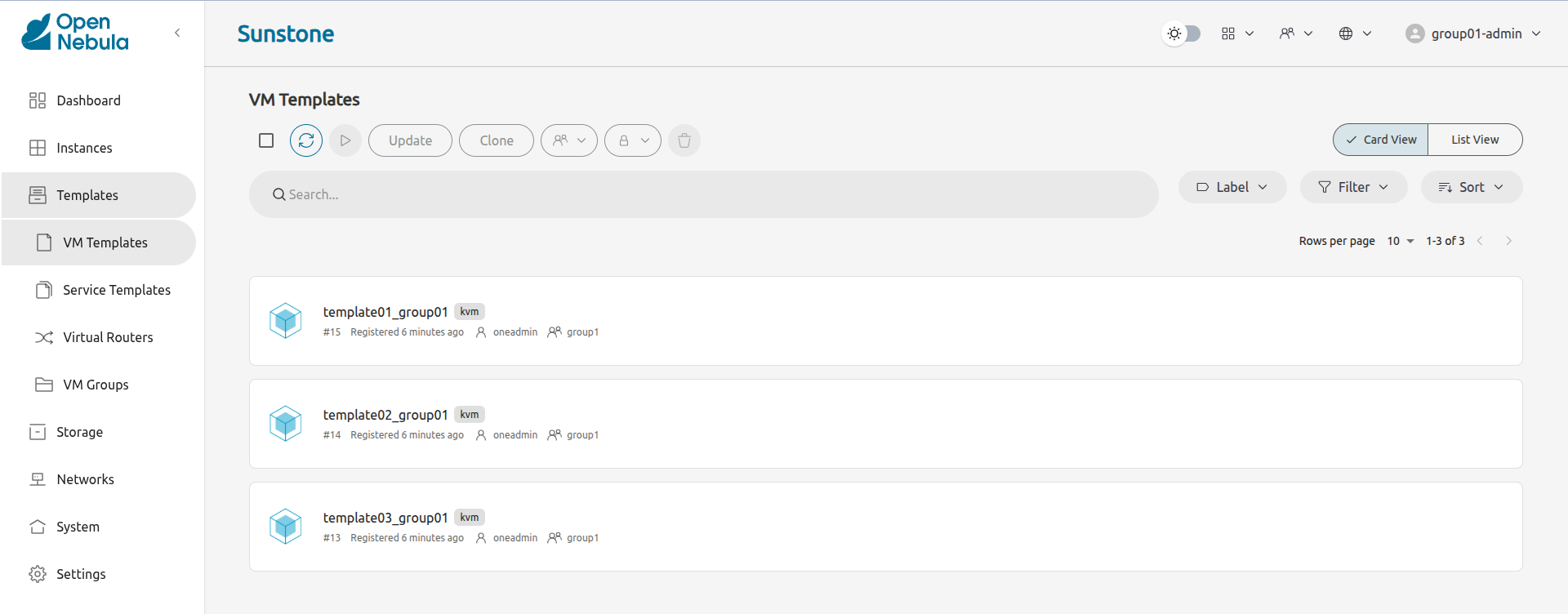

groupadmin_create_vm_templates_list

Accounting and Showback

Group Accounting and Showback

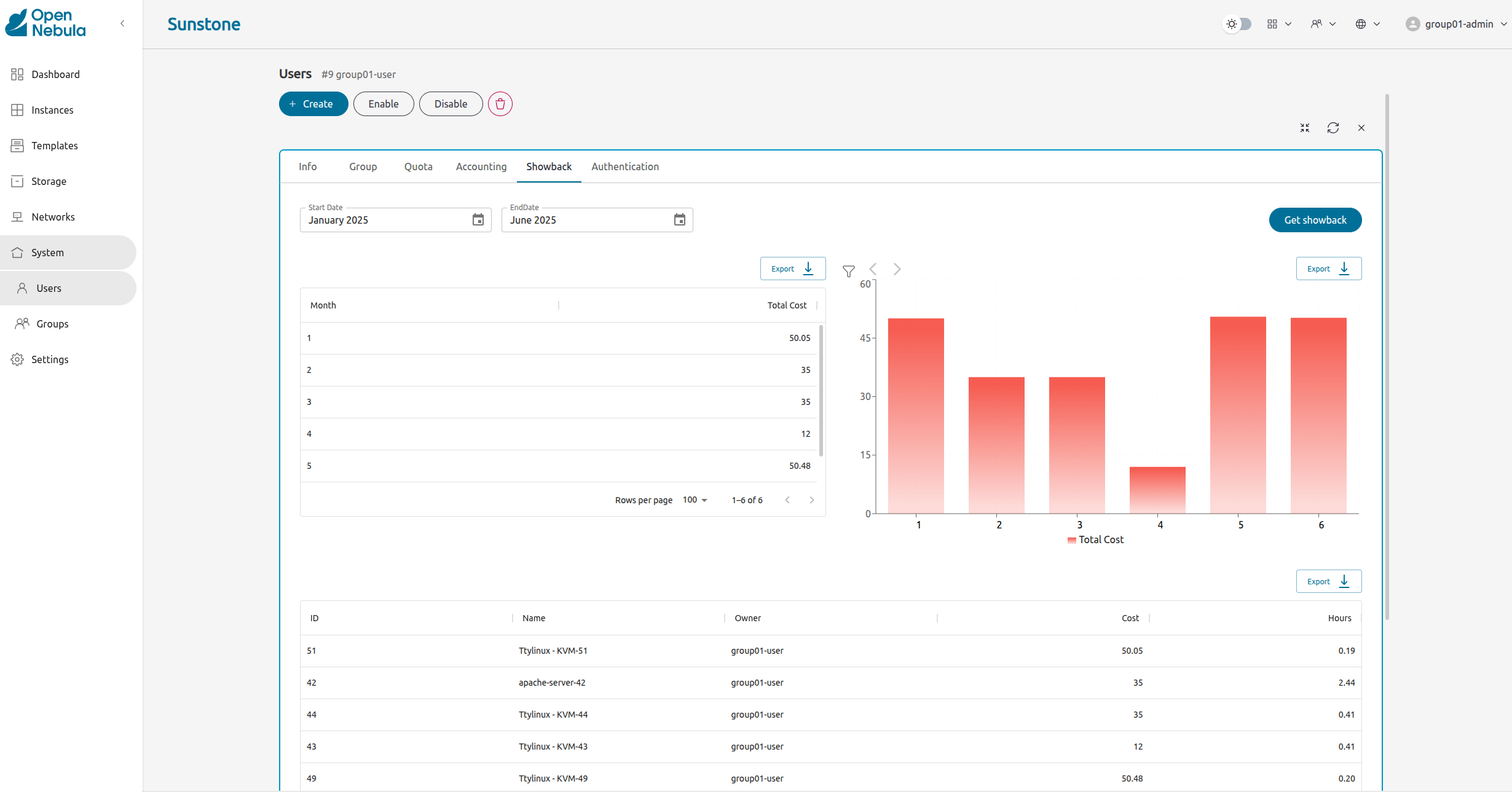

The Group info tab provides information about the resources usage, accounting and showback reports that can be generated. These records can be configured to report the usage per VM or per user for a specific range of time.

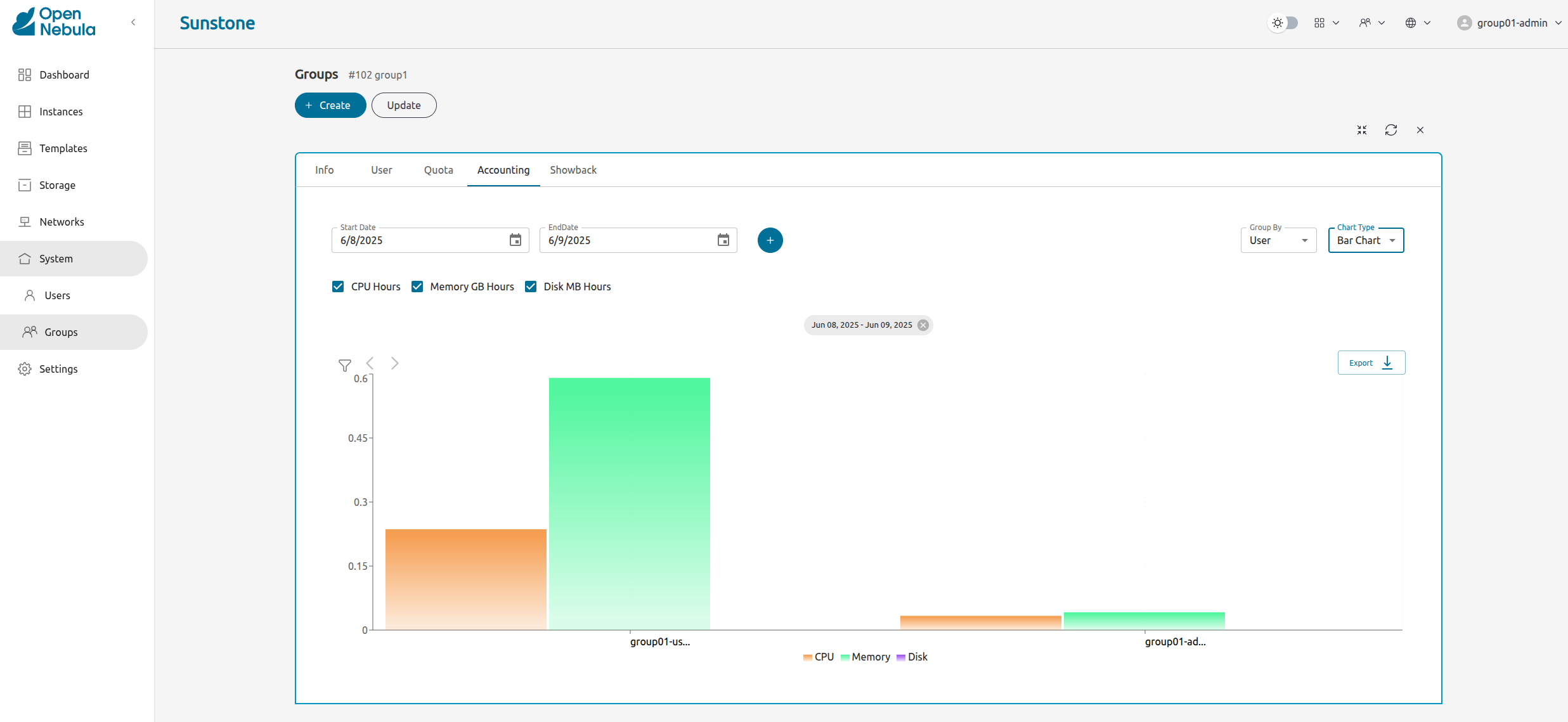

groupadmin_group_acct

groupadmin_group_showback

User Accounting and Showback

The detail view of the user provides information on their usage of resources, from this view accounting reports can be also generated for this specific user.

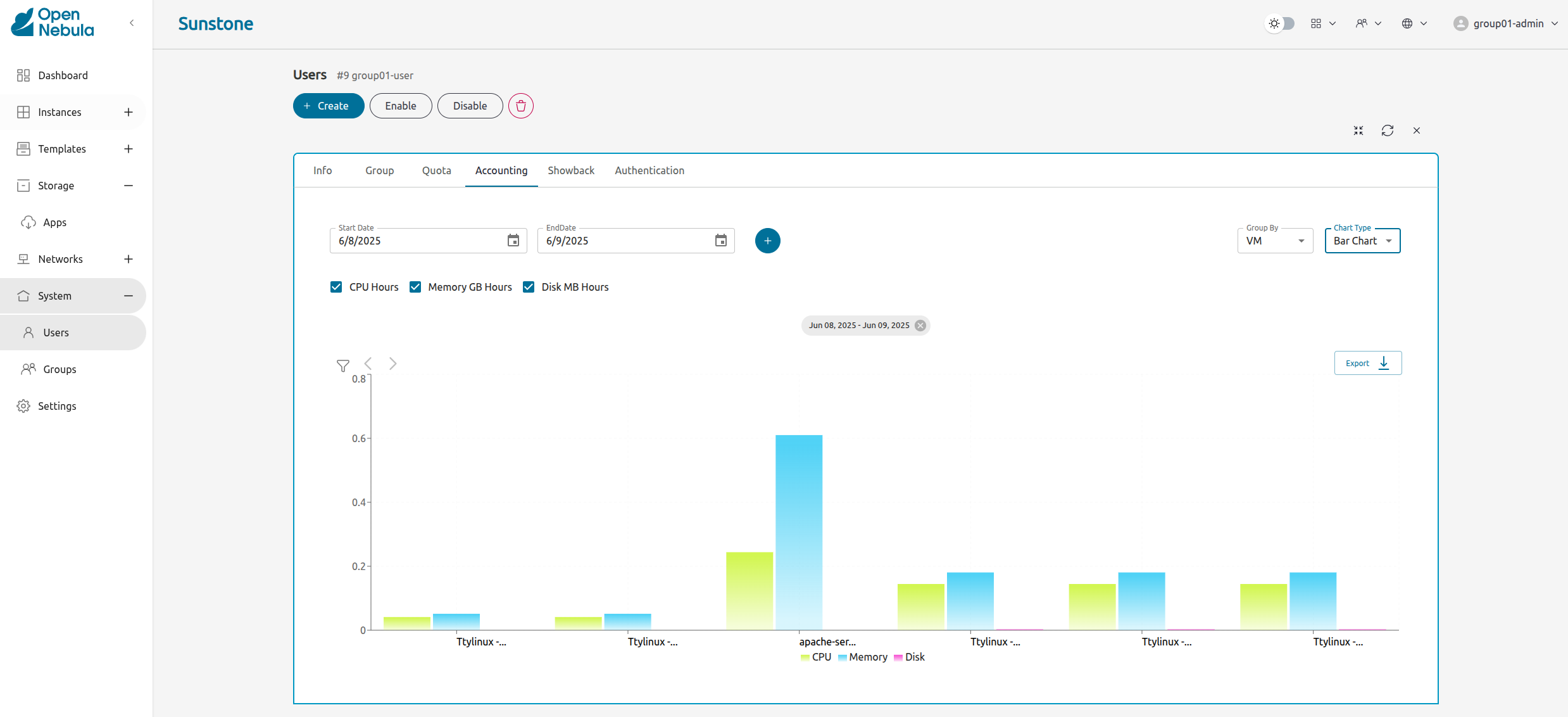

groupadmin_user_acct

Networking

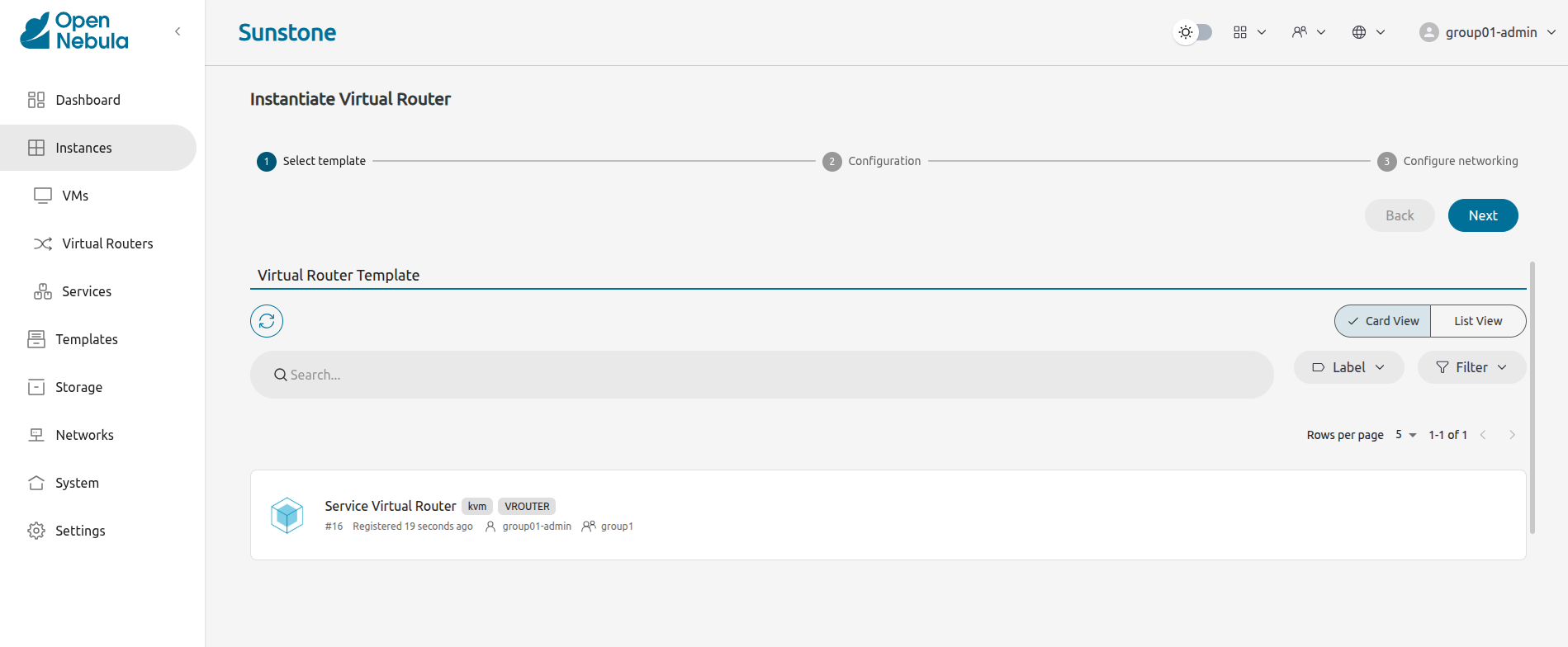

Group administrators can create Virtual Routers from Templates prepared by the cloud administrator. These virtual routers can be used to connect two or more of the virtual networks assigned to the Group.

groupadmin_create_vrouter
