Self-service Cloud View

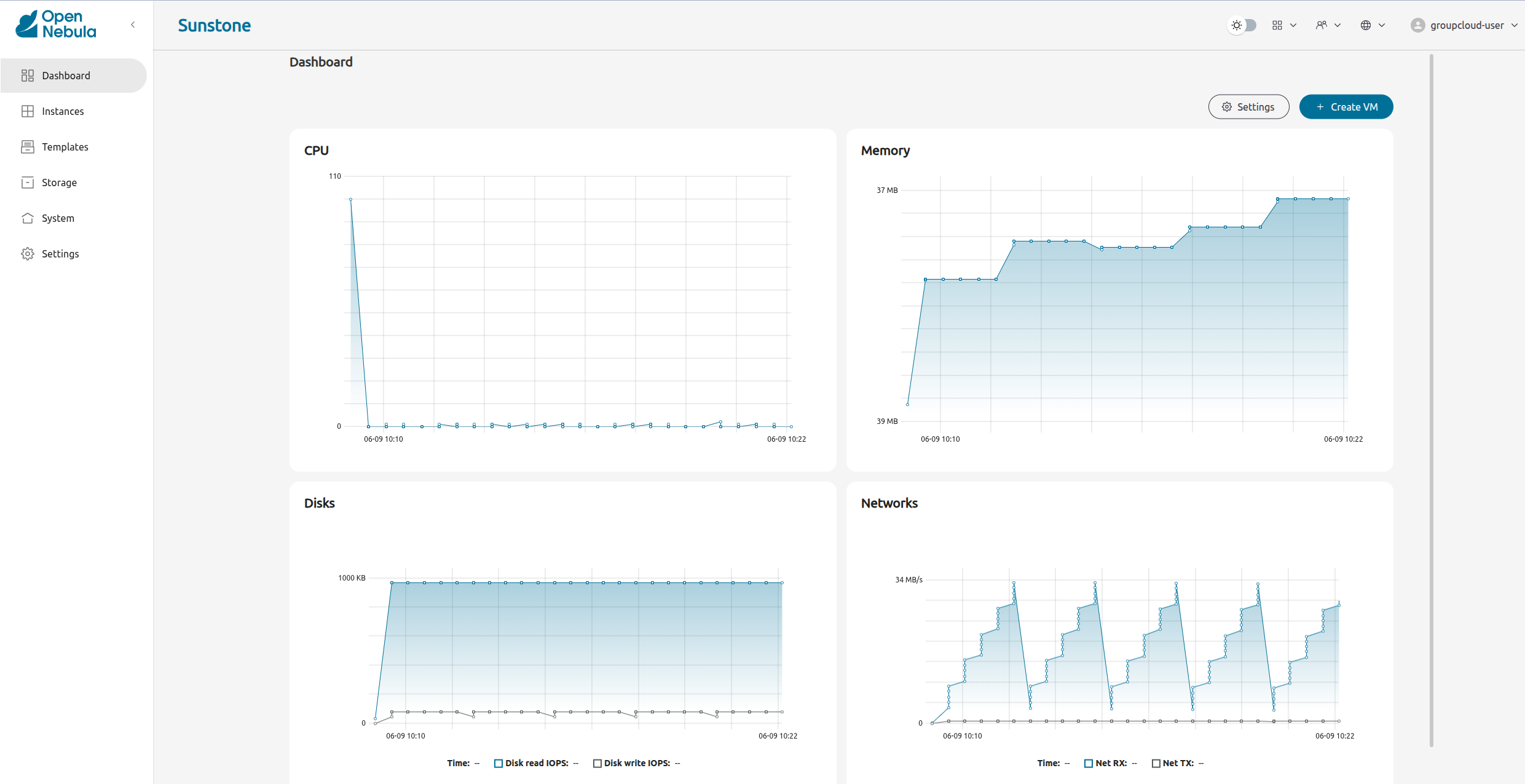

This is a simplified view intended for cloud consumers that just require a portal where they can provision new VMs easily. To create new VMs and Services, they just have to select one of the available Templates prepared by the administrators.

sunstone_cloud_dash

Using the Cloud

Create VM

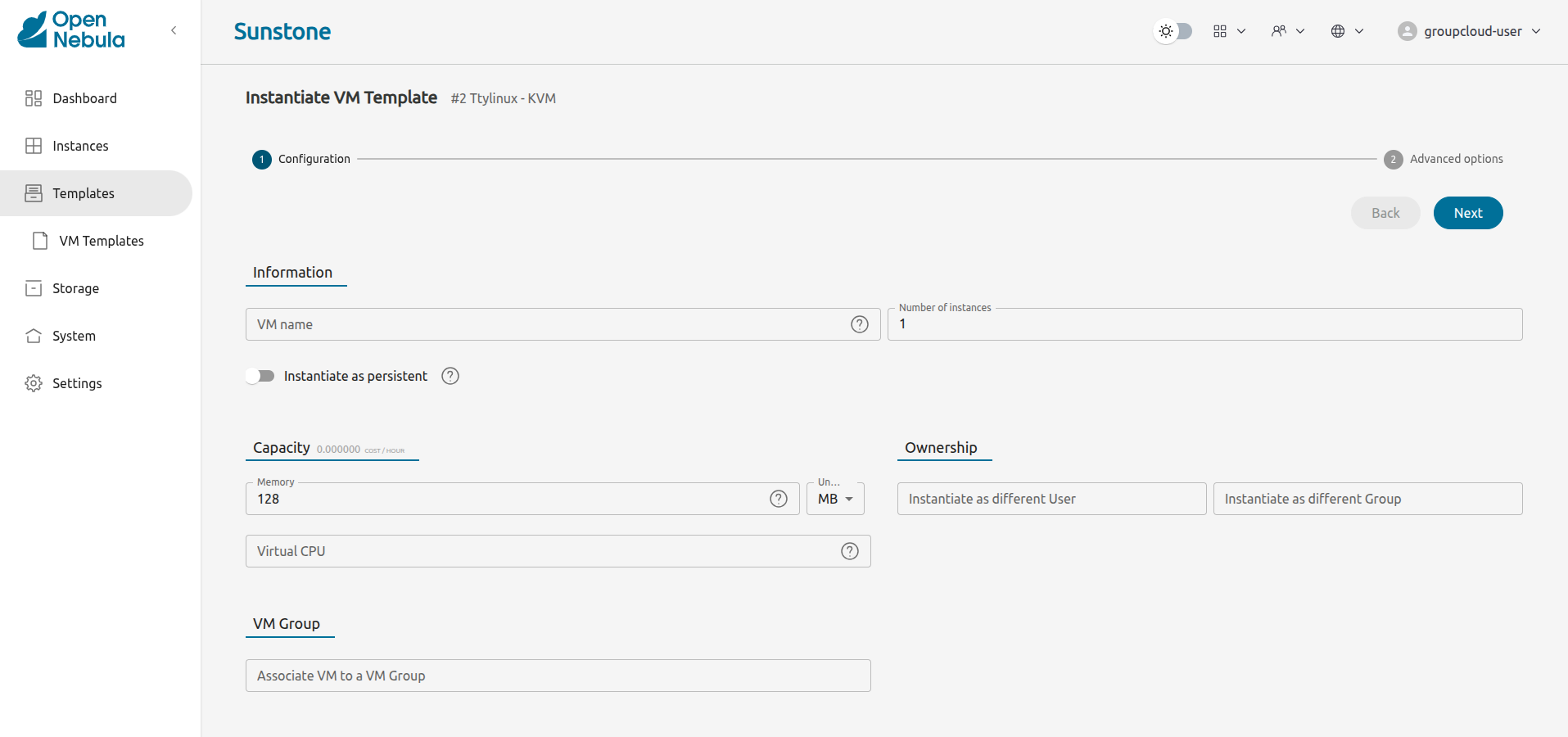

In this scenario the cloud administrator must prepare a set of Templates and Images to make them available to the cloud users. These resources must be ready to be used.

For example, when template attributes are defined as mandatory, users can optionally customize the VM capacity, resize disks, add new Network Interfaces, and provide values required by the template. Read tips on how to prepare VM Templates for End-Users.

sunstone_cloud_create_vm

Access the VMs with SSH Keys

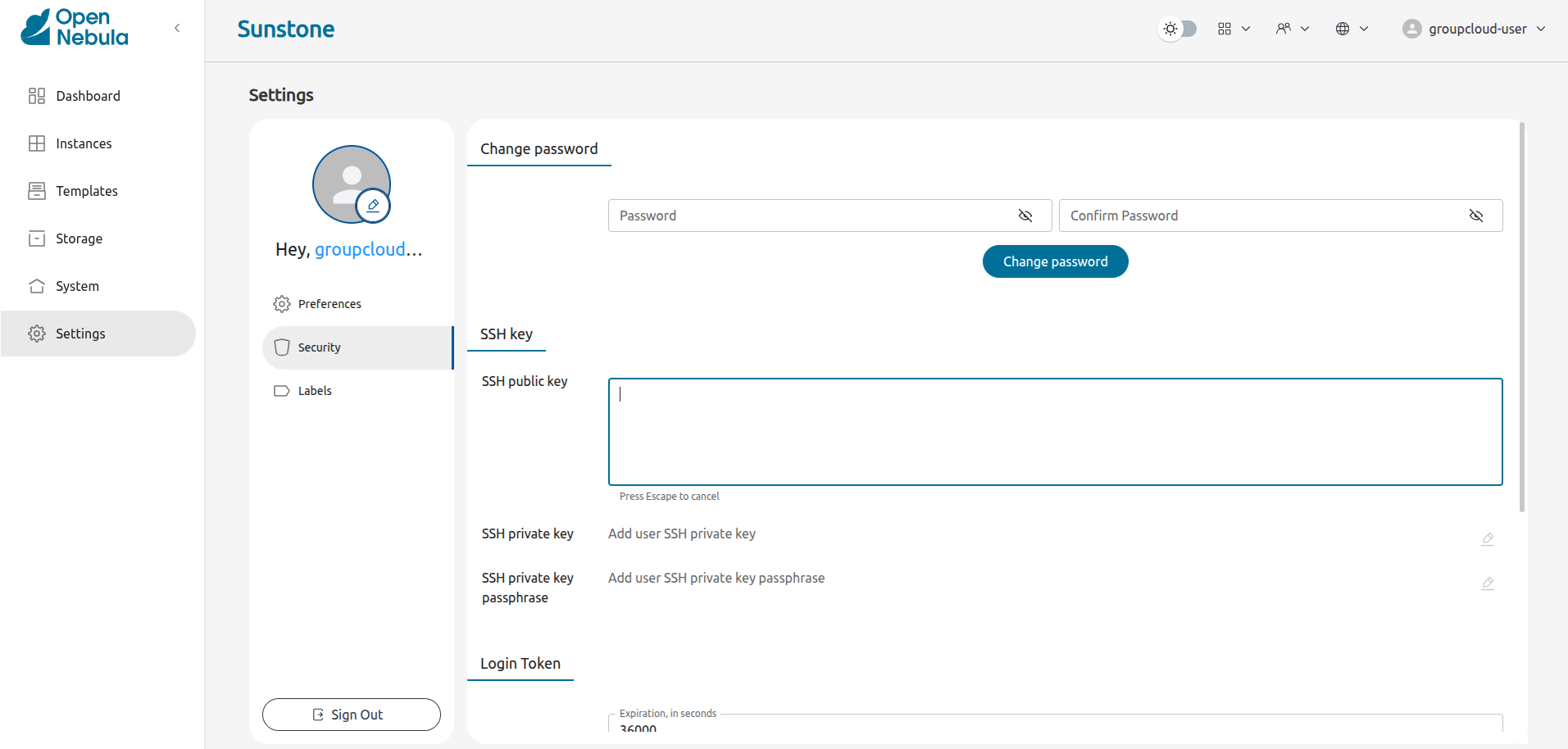

Any user can provide his own SSH public key to be included in the VMs created through this view. This requires the VM guest to be contextualized, and the Template must have the SSH contextualization enabled.

sunstone_cloud_add_ssh_key

Manage VMs

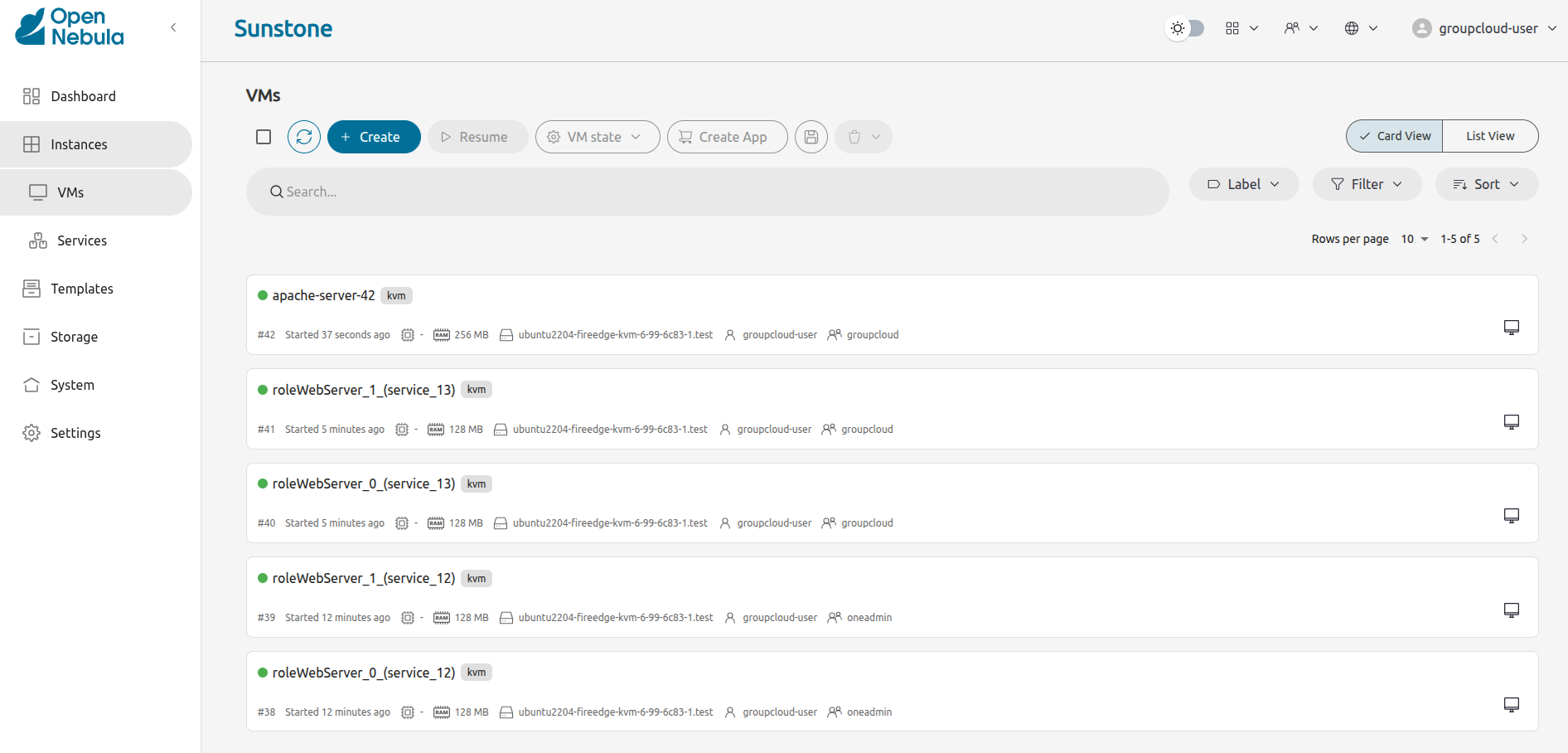

The status of the Virtual Machines can be monitored from the VMs tab.

sunstone_cloud_vms_list

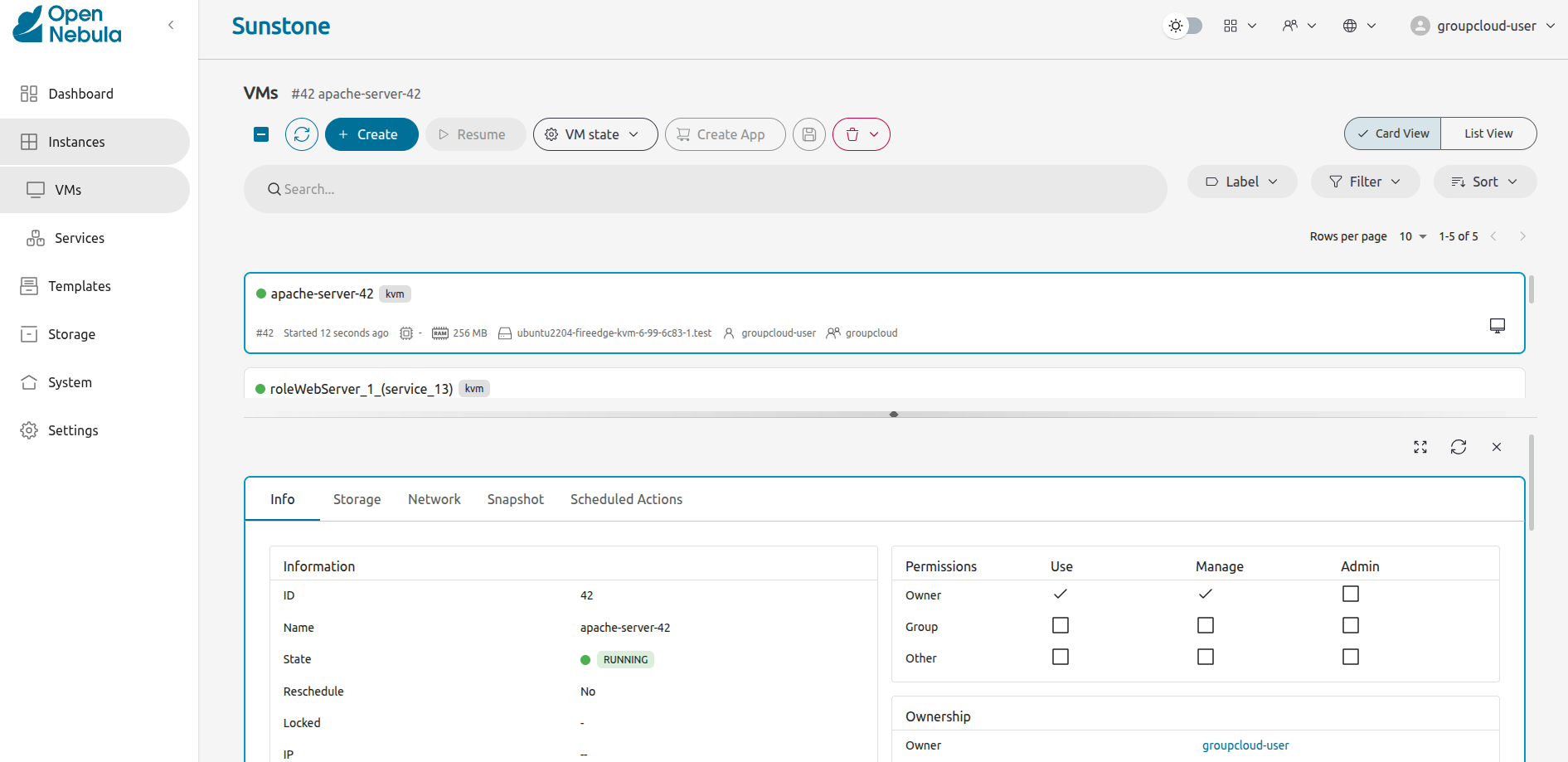

Information about the capacity, operating system, ips, creation time, and monitoring graphs for a specific VM are available in the detail view.

sunstone_cloud_vm_info

Users can perform the following actions from this view:

Access the VNC console, but only if it’s configured in the Template.
Reboot the VM: the user can send the reboot signal (reboot) or reboot the machine (reboot hard).
Power off the VM: the user can send the power off signal (poweroff) or power off the machine (poweroff hard).
Terminate the VM.
Save the VM into a new Template.
Power on the VM.

Make the VM Changes Persistent

Users can create a persistent private copy of the available templates. A persistent copy will preserve the changes made to the VM disks after the instance is terminated. This template is private and will only be listed to the owner user.

To create a persistent copy, use the Persistent switch:

sunstone_persistent_vm

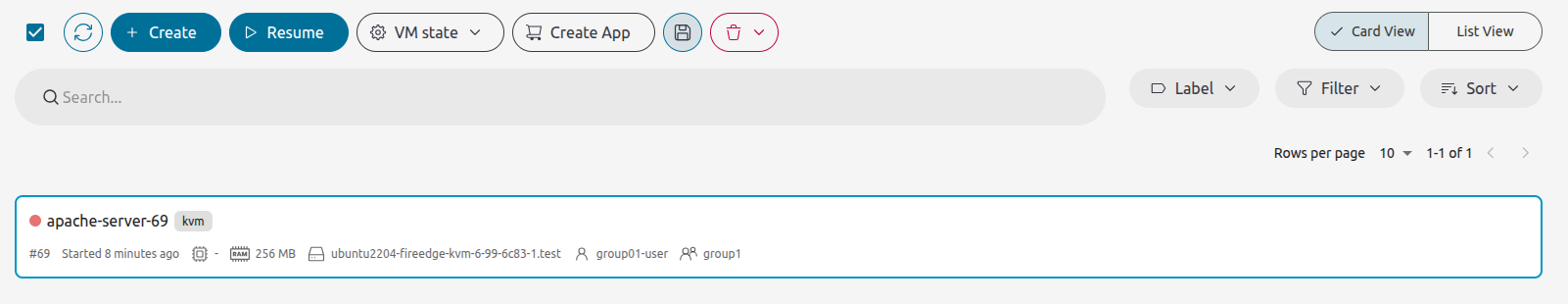

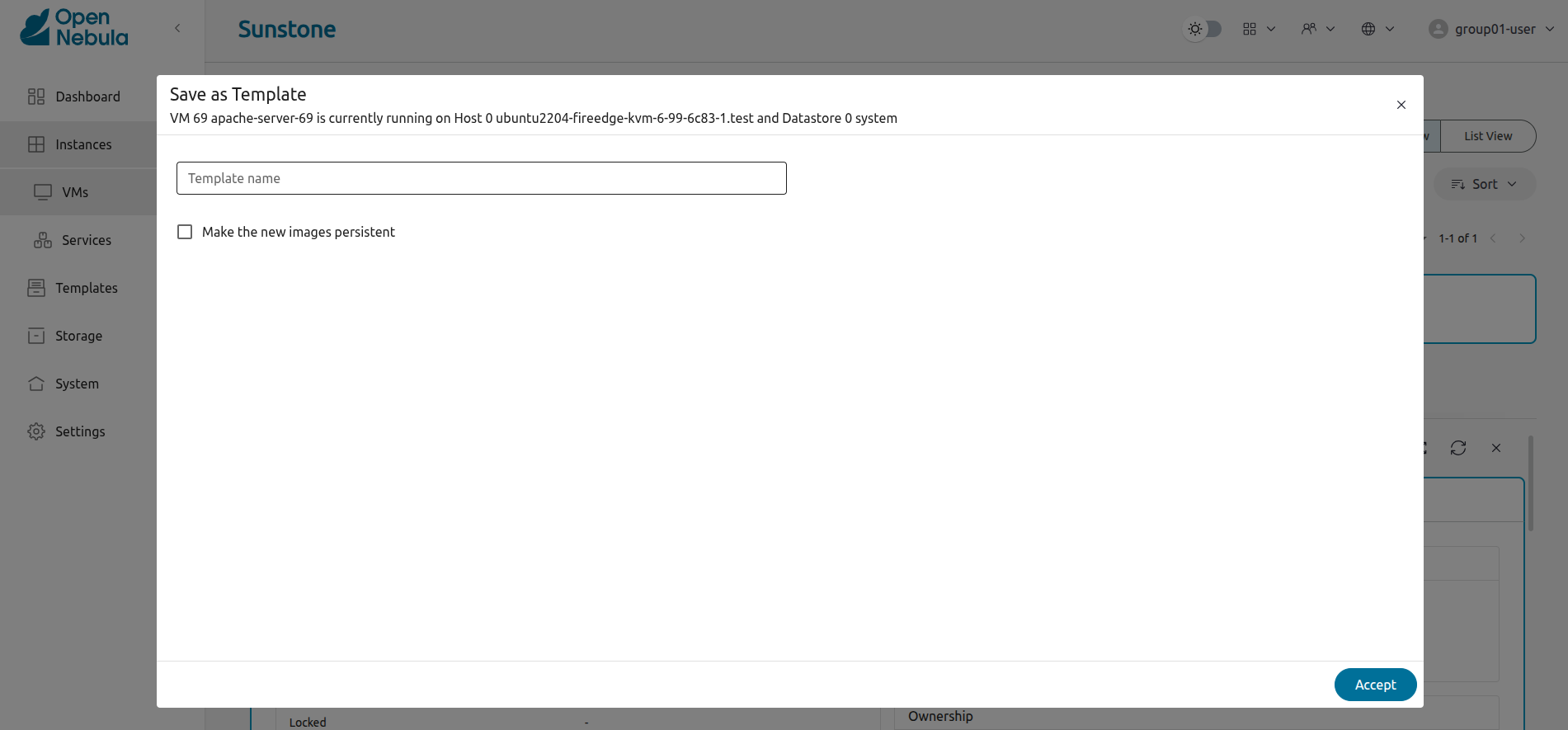

Alternatively, a VM that wasn’t created as persistent can be saved before it’s destroyed. To do so, the user has to power off the VM first and then use the save operation.

sunstone_save_vm_1 sunstone_save_vm_2

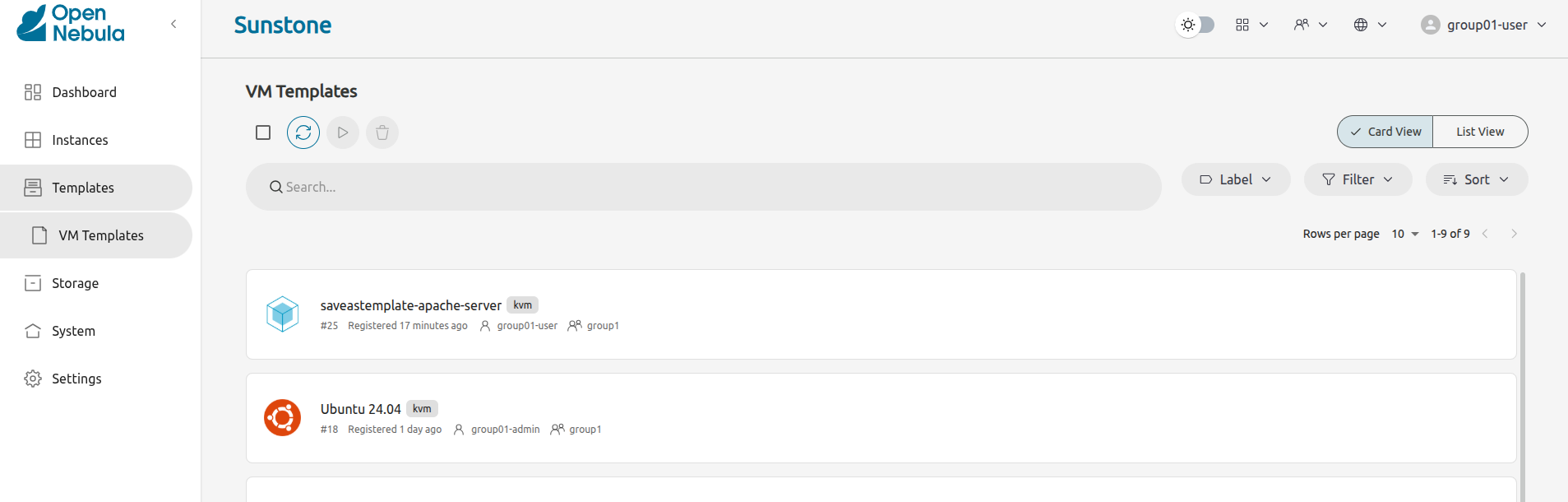

Any of the these two actions will create a new Template. This Template can be used to restore the state of a VM after deletion. This template contains a copy of each one of the original disk images.

Warning

If you delete this template, all the disk contents will be also lost.

sunstone_save_vm_3

Note

Avoid making a persistent copy of a persistent copy! Although there are use cases where it is justified, you will end up with a long list of Templates and the disk usage quota will decrease quickly.

For more details about the limitations of saved VM, continue to the Managing Virtual Machines guide.

Create Service

In the same way as instantiating a VM, the cloud administrator must prepare a set of Service Templates. Before instantiating them, users can optionally customize the Service cardinality, define the network interfaces, and provide values required by the template.

sunstone_cloud_create_service
