NFS/NAS Datastore
This storage configuration assumes that your Hosts can access and mount a shared volume located on a NAS (Network Attached Storage) server. You will use this shared volume to store VM disk images files. The Virtual Machines will also boot from the shared volume.
The scalability of this solution will be bound to the performance of your NAS server. However, you can use multiple NAS servers simultaneously to improve the scalability of your OpenNebula cloud. The use of multiple NFS/NAS Datastores will allow you to:
- Balance I/O operations between storage servers.
- Apply different SLA policies (e.g., backup) to different VM types or users.
- Easily add new storage.
Using an NFS/NAS Datastore provides a straightforward solution for implementing thin provisioning for VMs, which is enabled by default when using the qcow2 image format.
Datastore setup can be done either manually or automatically:
Manual Front-end Setup
Simply mount the Image Datastore directory in the Front-end in /var/lib/one/datastores/<datastore_id>
. Note that if all the Datastores are of the same type you can mount the whole /var/lib/one/datastores
directory.
Note
The Front-end only needs to mount the Image Datastores and not the System Datastores.
Note
NFS volumes mount tips. The following options are recommended to mount NFS shares:soft, intr, rsize=32768, wsize=32768
. With the documented configuration of libvirt/kvm, the image files can be accessed as the oneadmin
user. If the files must be read by root
, the option no_root_squash
must be added.Manual Host Setup
The configuration is the same as for the Front-end above: simply mount in each Host the datastore directories in /var/lib/one/datastores/<datastore_id>
.
Automatic Setup
Automatic NFS setup is an opt-in feature in the NFS drivers. It’s controlled via the NFS_AUTO_*
family of datastore attributes documented below. If enabled, OpenNebula will lazily mount the NFS share on demand (either on Hosts or the Front-end) before an operation requires it. Also, for the transfer operations where it makes sense (for example, when deploying a VM which uses a NFS-backed system image), the mounting information is persisted to the Host’s /etc/fstab
.
The unmounting/fstab cleanup is performed in a lazy way, similar to mounting. This means regular VM operations (e.g., deploy or terminate) will check whether the current machine has mounted a datastore which either has NFS_AUTO_ENABLE
set to no
, or does not exist anymore, and clean it up.
Warning
It is recommended to not to delete the shared filesystem from the NFS server until you are sure that no Hosts still have it mounted.Other than that, the system state at the end will be similar to the way specified in the Manual Setup sections; each datastore will mount its own NFS share in /var/lib/one/datastores/<datastore_id>
. In fact, there is no issue in mixing operations between datastores (i.e., managing some of them manually and some others automatically).
OpenNebula Configuration
Once Host and Front-end storage have been is set up, the OpenNebula configuration comprises the creation of the Image and System Datastores.
Create System Datastore
To create a new System Datastore, you need to set following (template) parameters:
Attribute | Description |
---|---|
NAME | Name of datastore |
TYPE | SYSTEM_DS |
TM_MAD | shared for shared transfer mode |
qcow2 for qcow2 transfer mode | |
BRIDGE_LIST | Space-separated list of hosts with system DS mounted |
This can be done either in Sunstone or through the CLI; for example, to create a System Datastore using the shared mode simply enter:
$ cat systemds.txt
NAME = nfs_system
TM_MAD = shared
TYPE = SYSTEM_DS
$ onedatastore create systemds.txt
ID: 101
Note
When different System Datastores are available the TM_MAD_SYSTEM
attribute will be set after picking the datastore.Create Image Datastore
To create a new Image Datastore, you need to set the following (template) parameters:
Configuration Attributes for NFS/NAS Datastores
Attribute | Values | Description |
---|---|---|
NAME | Name of datastore | |
DS_MAD | fs | Datastore driver to use |
TM_MAD | shared or qcow2 | Transfer driver, qcow2 uses specialized operations for qcow2 files |
CONVERT | yes (default) or no | If DRIVER is set on the image datastore, this option controls whether the images in different formats are internally converted into the DRIVER format on import. |
For example, the following illustrates the creation of a Filesystem Datastore using the shared transfer drivers:
$ cat ds.conf
NAME = nfs_images
DS_MAD = fs
TM_MAD = shared
$ onedatastore create ds.conf
ID: 100
Also note that there are additional attributes that can be set. Check the datastore template attributes.
Warning
Be sure to use the same TM_MAD
for both the System and Image Datastores. When combining different transfer modes, check the section below.Additional Configuration
QCOW2_OPTIONS
: Custom options for theqemu-img
clone action. Images are created through theqemu-img
command using the original image as a backing file. Custom options can be sent toqemu-img
clone action through the variableQCOW2_OPTIONS
in/etc/one/tmrc
.DD_BLOCK_SIZE
: Block size for dd operations (default: 64kB) can be set in/var/lib/one/remotes/etc/datastore/fs/fs.conf
.SUPPORTED_FS
: Comma-separated list with every filesystem supported for creating formatted datablocks. Can be set in/var/lib/one/remotes/etc/datastore/datastore.conf
.FS_OPTS_<FS>
: Options for creating the filesystem for formatted datablocks. Can be set in/var/lib/one/remotes/etc/datastore/datastore.conf
for each filesystem type.SPARSE
: If set toNO
the images and disks in the Image and System Datastores, respectively, won’t be sparsed (i.e., the files will use all assigned space on the Datastore filesystem). It is mandatory to setQCOW2_STANDALONE = YES
on the System Datastore for this setting to apply.QCOW2_STANDALONE
: If set toYES
the standalone qcow2 disk is created during CLONE operation (default: QCOW2_STANDALONE=”NO”). Unlike previous options, this one is defined in the Image Datastore template and inherited by the disks.
Attributes related to NFS auto configuration can’t be changed after datastore creation unless it is empty:
NFS_AUTO_ENABLE
: If set toYES
the automatic NFS mounting functionality is enabled (default:no
).NFS_AUTO_HOST
: (Required ifNFS_AUTO_ENABLE=yes
) Hostname or IP address of the NFS server.NFS_AUTO_PATH
: (Required ifNFS_AUTO_ENABLE=yes
) NFS share path. This share will be mounted in the hosts at the datastore path (/var/lib/one/datastores/<dsid>/
).NFS_AUTO_OPTS
: Comma-separated options (fstab-like) used for mounting the NFS shares (default:defaults
).
Here’s a sample configuration for an automatically mounted image datastore:
$ cat ds.conf
NAME = nfs_images_share1
DS_MAD = fs
TM_MAD = shared
NFS_AUTO_ENABLE = yes
NFS_AUTO_HOST = 192.168.150.10
NFS_AUTO_PATH = /srv/share1
NFS_AUTO_OPTS = "soft,intr,rsize=32768,wsize=32768"
$ onedatastore create ds.conf
ID: 102
Warning
Before adding a new filesystem to the SUPPORTED_FS
list make sure that the corresponding mkfs.<fs_name>
command is available in the Front-end and hypervisor Hosts. If an unsupported FS is used by the user the default one will be used.NFS/NAS and Local Storage
When using the NFS/NAS Datastore, you can improve VM performance by placing the disks in the Host’s local storage area. In this way, you will have a repository of images (distributed across the Hosts using a shared FS) but the VMs running from the local disks. This effectively combines NFS/NAS and Local Storage datastores.
Warning
This setup will increase performance at the cost of increasing deployment times.To configure this scenario, simply configure a shared Image and System Datastores as described above (TM_MAD=shared
). Then, add a Local Storage System Datastore (TM_MAD=ssh
). Any image registered in the Image Datastore can now be deployed using any of these Datastores.
Warning
If you added the NFS/NAS Datastores to the cluster, you need to add the new Local Storage System Datastore to the very same clusters.To select the (alternate) deployment mode, add the following attribute to the Virtual Machine template:
TM_MAD_SYSTEM="ssh"
Datastore Internals
Images are saved into the corresponding datastore directory (/var/lib/one/datastores/<DATASTORE ID>
). Also, for each running Virtual Machine there is a directory (named after the VM ID
) in the corresponding System Datastore. These directories contain the VM disks and additional files, e.g., checkpoint or snapshots.
For example, a system with an Image Datastore (1
) with three images and three Virtual Machines (VM 0 and 2 running, and VM 7 stopped) running from System Datastore 0
would present the following layout:
/var/lib/one/datastores
|-- 0/
| |-- 0/
| | |-- disk.0
| | `-- disk.1
| |-- 2/
| | `-- disk.0
| `-- 7/
| |-- checkpoint
| `-- disk.0
`-- 1
|-- 05a38ae85311b9dbb4eb15a2010f11ce
|-- 2bbec245b382fd833be35b0b0683ed09
`-- d0e0df1fb8cfa88311ea54dfbcfc4b0c
Note
The canonical path for /var/lib/one/datastores
can be changed in /etc/one/oned.conf with the DATASTORE_LOCATION
configuration attributeThe shared

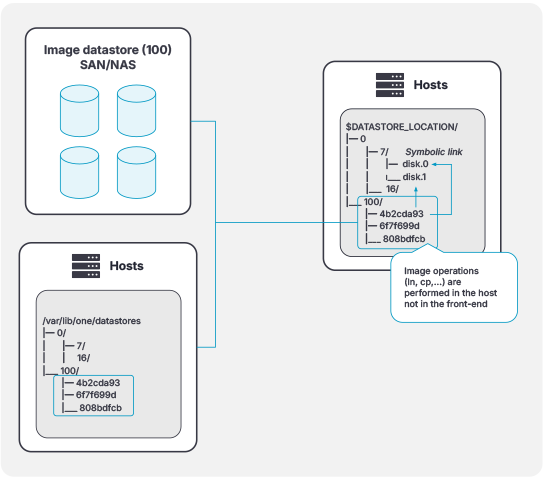

transfer driver assumes that the datastore is mounted on all the Hosts (Front-end and Hosts) of the cluster. Typically this is achieved through a shared filesystem, e.g., NFS, GlusterFS, or Lustre. This transfer mode usually reduces VM deployment times, but it can also become a bottleneck in your infrastructure and degrade your Virtual Machines’ performance if the virtualized services perform disk-intensive workloads. Usually, this limitation may be overcome by:
- Using different filesystem servers for the Image Datastores so the actual I/O bandwidth is balanced.
- Using the Host local storage.
- Tuning or improving the filesystem servers.
When a VM is created, its disks (the disk.i
files) are copied or linked in the corresponding directory of the System Datastore. These file operations are always performed remotely on the target Host.
